to “Enabled”, event messages will be triggered (if a valid Format is selected).
Event Active Edge: Selects the signal edge used for triggering events, either
rising or falling.
4.
Click Submit.
5.
Configure the output settings. Navigate to INTERFACES > OUTPUTS: Event
Broadcast 0, or to INTERFACES > OPTIONCARDS: Event Broadcast 0. The
status window will display, providing information on the current settings.
6.

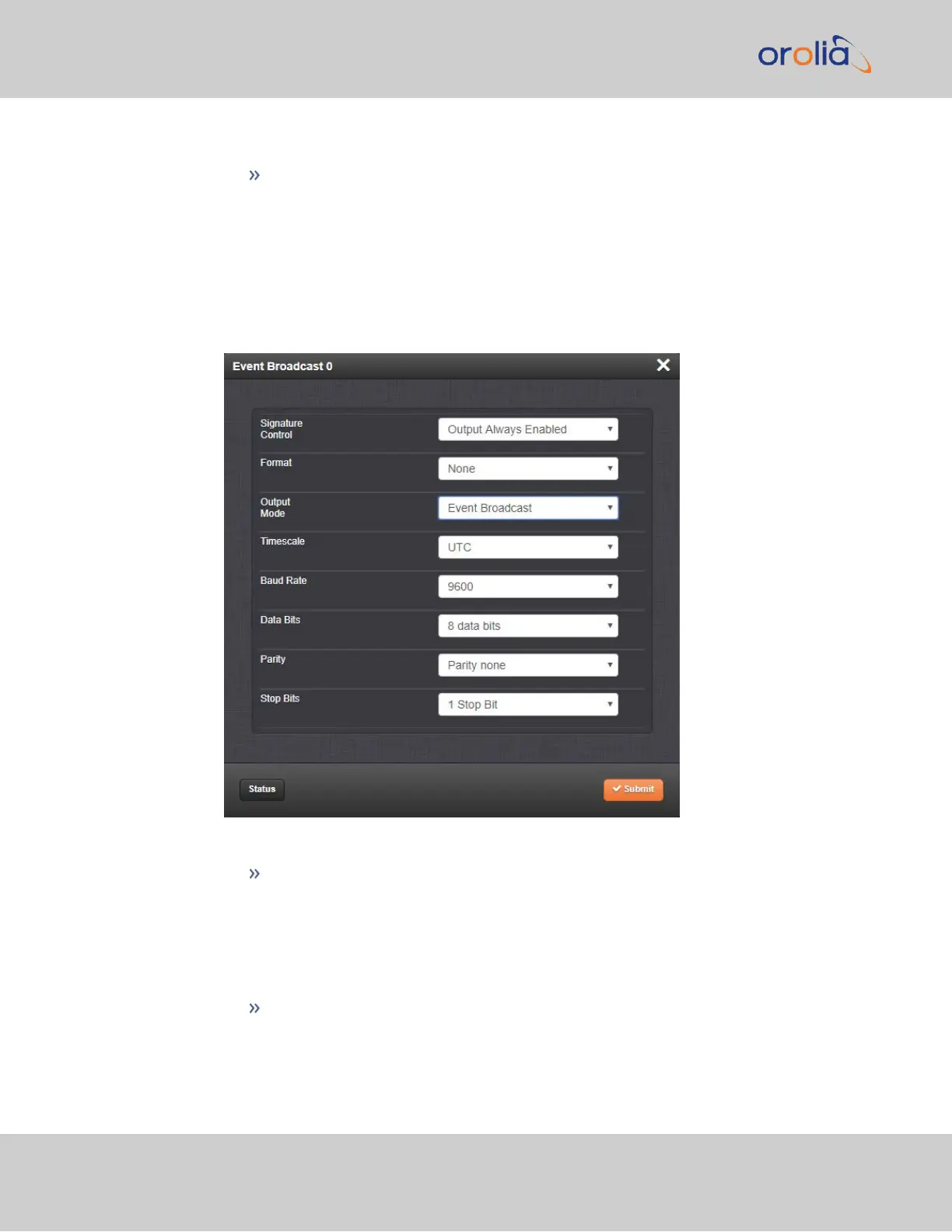

Click the Edit button to open the configuration window:
The Edit window allows the configuration of the following settings:
Signature Control: Signature Control controls when messages will be broad-
cast in response to events on the Event Input (J2) port when events are
enabled and the card is in “broadcast” mode. (Events are still queued even if
they are not broadcast, and are transmitted once the signature control con-
ditions permit.) For more information on Signature Control, see "Signature
Control" on page60.
Format: Selects the format of the message to be outputted. Refer to "Event
Broadcast Time Code Formats" on page327 for a description of all of the
