Unpack and Installation
9

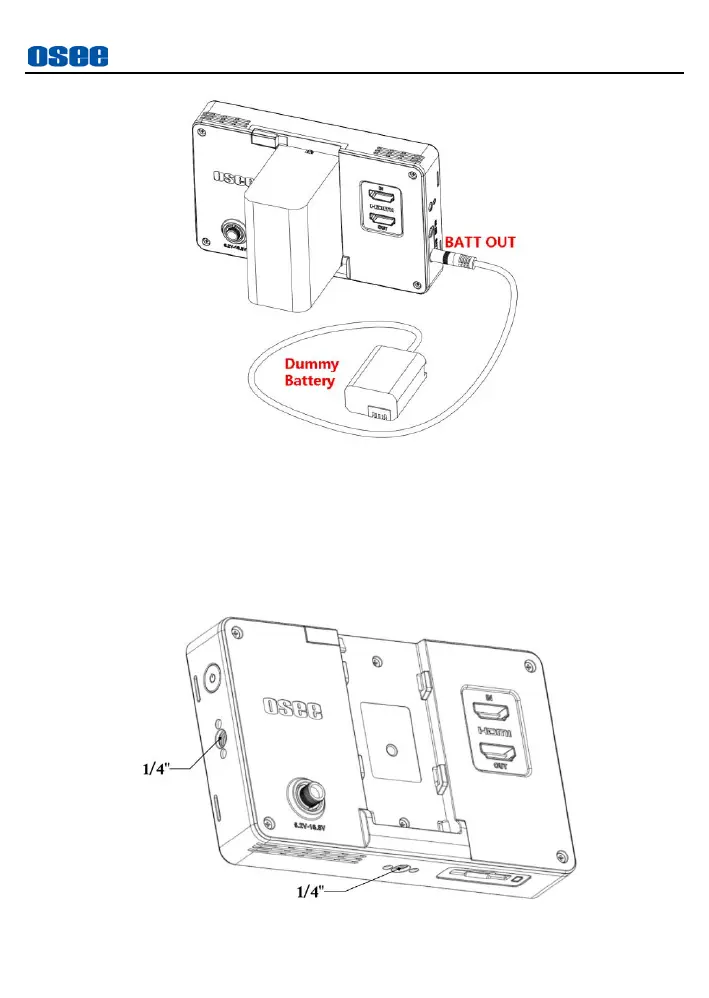

Figure 3-2 Connect BATT OUT to Dummy Battery
Mounting Installation:
There are two 1/4 inch screw holes with anti-rotation pin holes on the
monitor for installing various types of mountings, as shown in the
illustration below. Screw the mounting into the screw hole, and fasten it
tightly.
