10
Ⅲ K3 UNIT CHAIR Installation

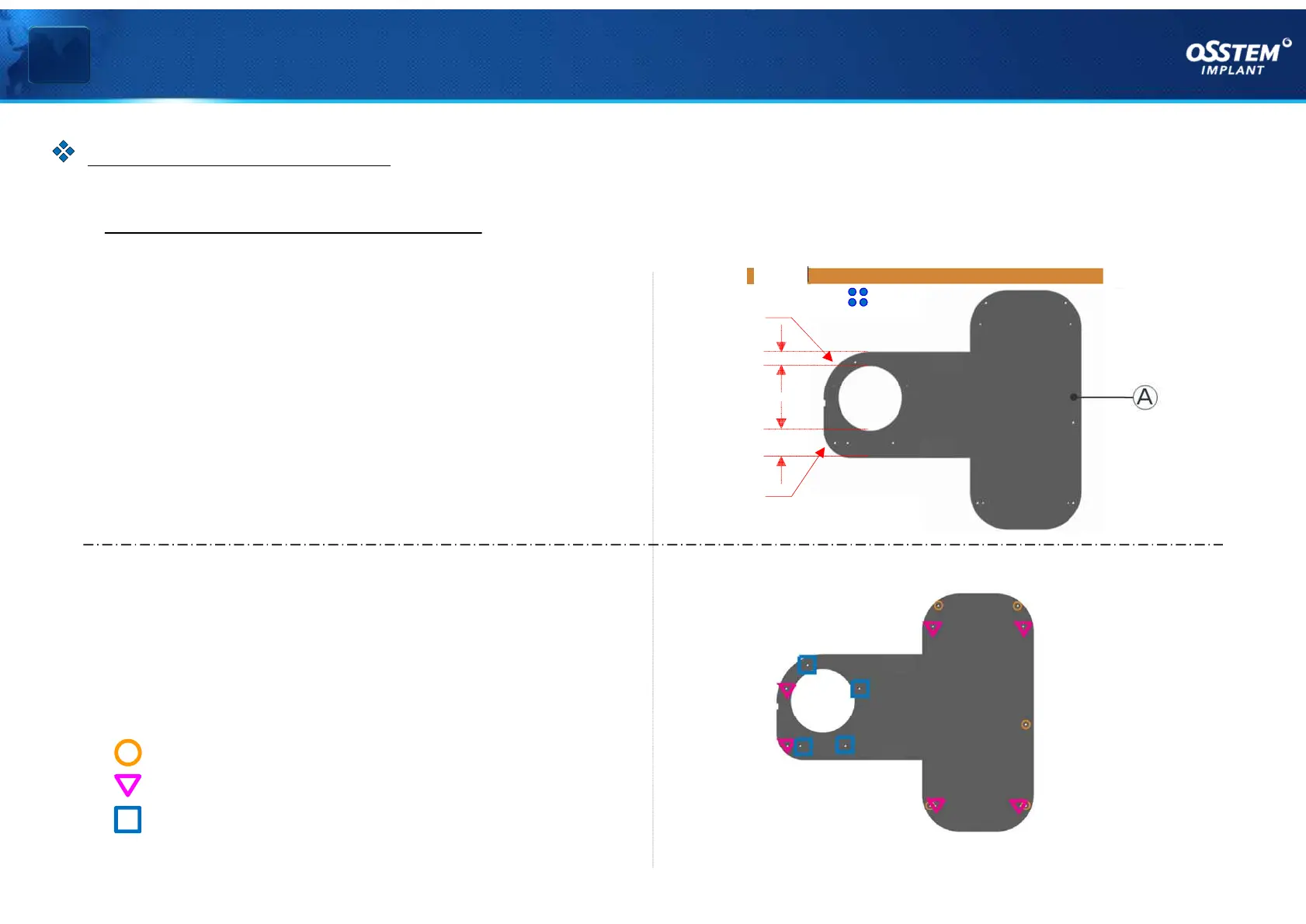

CHAIR INSTALLATION
§ Installation procedures #1
1. Install the base plate
Check the direction to place the main plate (A) on
the installation location agreed upon with the
user, as shown in <Figure 01>, and place the chair
on the floor.
2. Check the application position for
each bolt use
Referring to <Figure 02>, identify the use-specific
location of bolts to be applied to Base Plate (A).
M8mm head wrench bolts for fixing chair - 5EA
M10mm headless wrench bolts for levelness - 6EA
M8mm head wrench bolts for fixing unit - 5EA
< Figure 02 >
『CHAIR Installation』
Piping position
Narrow gaps
Small R size
Large gaps
Large R size
< Figure 01 >
Wall
To Next Page
