Osstem Implant K3 - Main PCB CPU Activation Check

157 pages

To Next Page

To Previous Page

Ⅱ Wiring Test

Operating status between PCBs (chair operation)

§ Main PCB CPU activation check

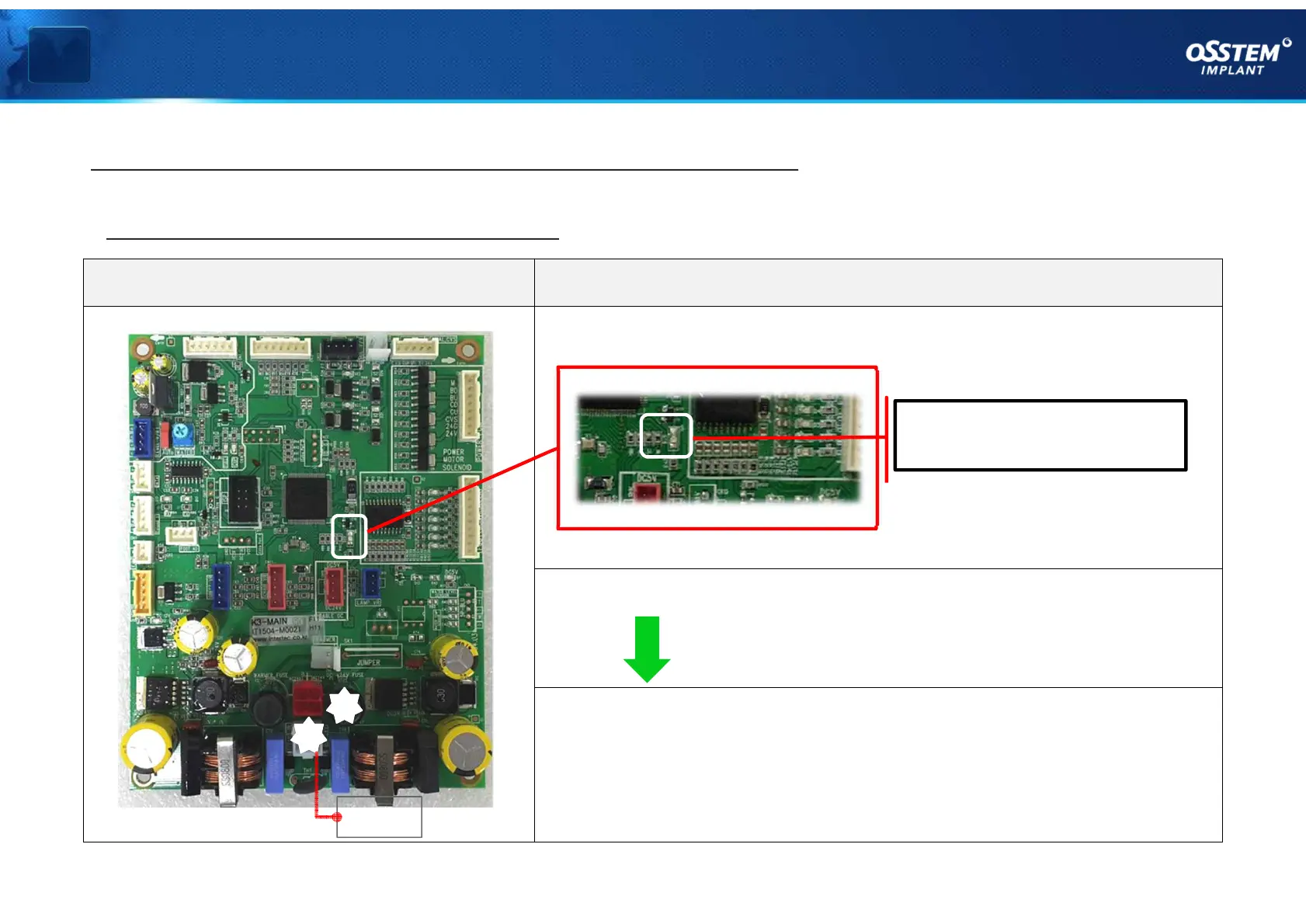

『MAIN PCB』

Main PCB Checklist

①

Connection of connector from the Trans

②

If LED is not turned on, check the fuse for AC24V (B)

③

Check the base end

- Check the fuse in the noise filter

- Check the trans

Trans

Check Table Power

è ON/OFF LED

Normal
