Ⅱ Wiring Test
v Operating status between PCBs (chair operation)

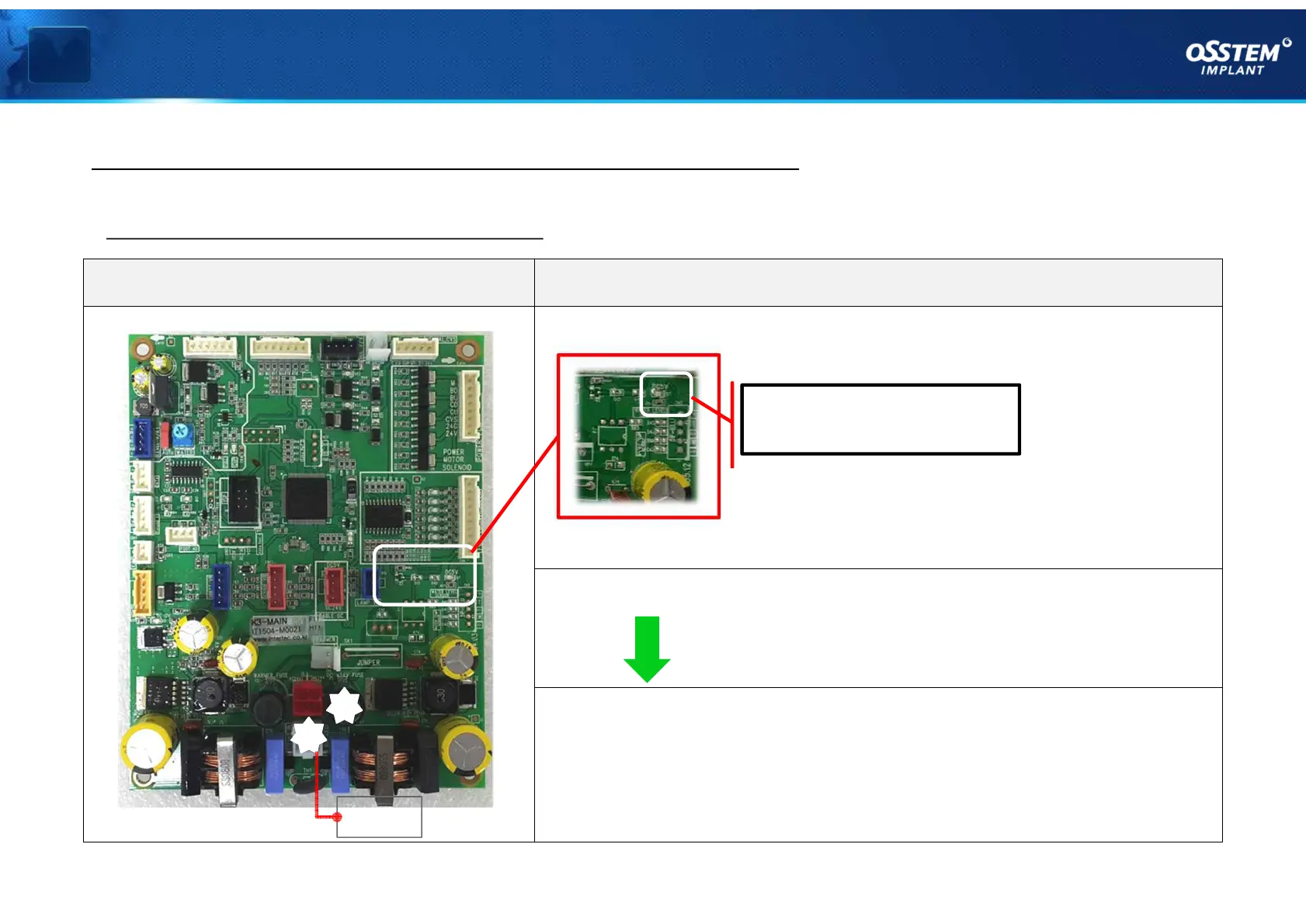

§ AC24V main PCB power check
『MAIN PCB』
Main PCB Checklist
①
Connection of connector from the Trans
②
If LED is not turned on, check the fuse for AC24V (B)
③
Check the base end
- Check the fuse in the noise filter
- Check the trans
Trans
DC 5V LED
Power supply to PCB
Normal
