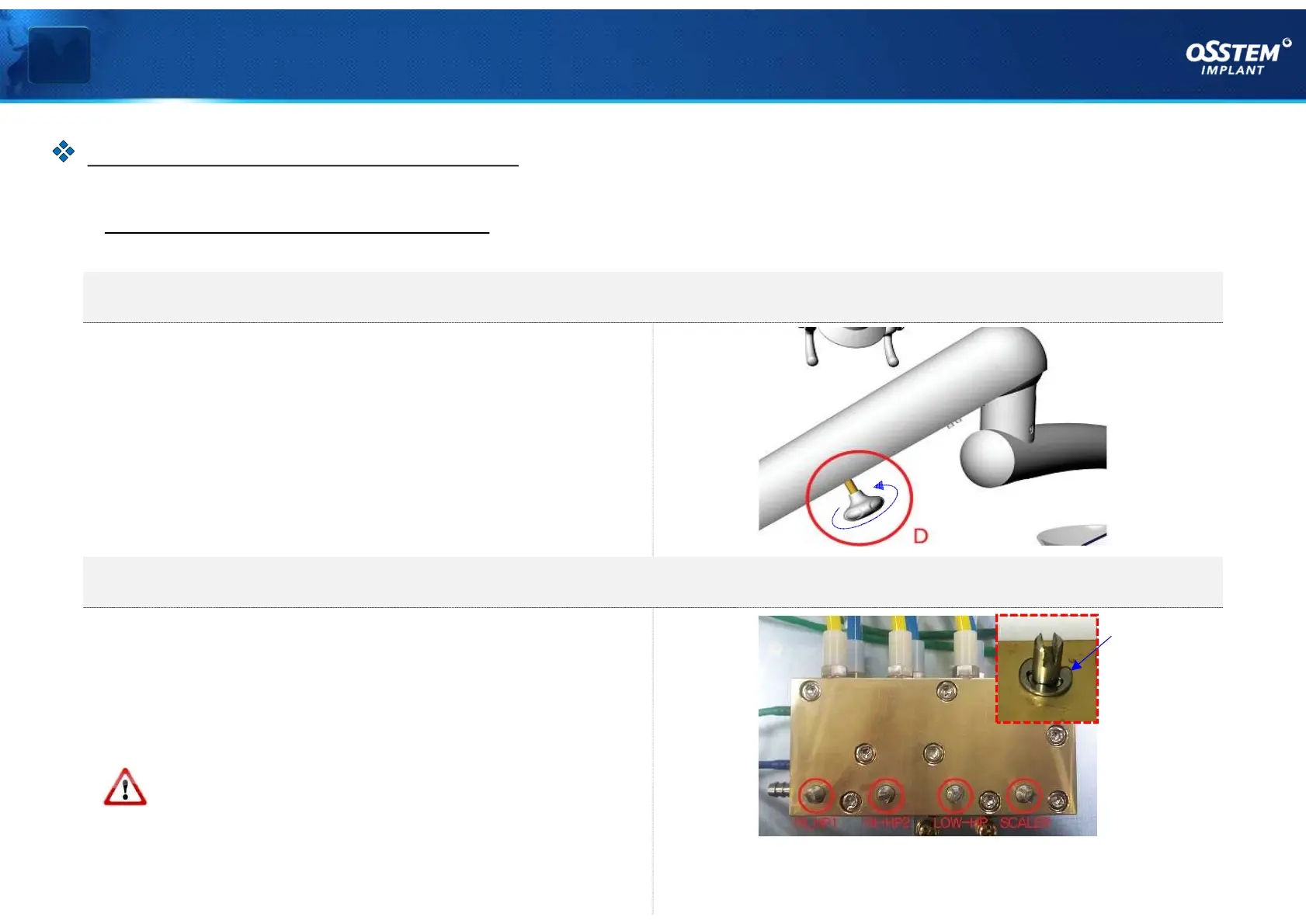

Ⅲ K3 UNIT CHAIR Installation
§ Installation precautions #2
3. Balance Arm Tension Fixing Device
Turn the Balance Arm Knob shown in Figure "D" counter-
clockwise to lock it, and the load will be applied to the
tension adjustment device, which leads to an increase in
the fixing force of the Balance Arm.
4. Adjust Air Pressure for Doctor Table Master Block
Turn the air pressure adjustment valve of the master block
clockwise (lock) and the air pressure decreases. Turning the
valve counter-clockwise (release) increases the air pressure.
※ Set pressure: 3Kgf/㎠
Notice) Do not apply too much torque when
closing the valve, as it may cause the diaphragm be
torn, causing a gas leakage. Do not fasten further when
the valve is closed to the stopper.
[ Valve ]
Stopper
DOCTOR TABLE INSTALLATION
『TABLE Installation』
