Osstem Implant K3 - AC220 V Power Line; Power Connection

83
Motor
Chair UP
Chair DN
B.Rest UP
B.Rest DN
B. AC24V
L. AC12V
AC24V
300VA
10A Fuse
L1
L2
C1
C2
Noise Filter
Main Switch
(AC220V)
Power PCB
TRANS
AC220V
Grounding

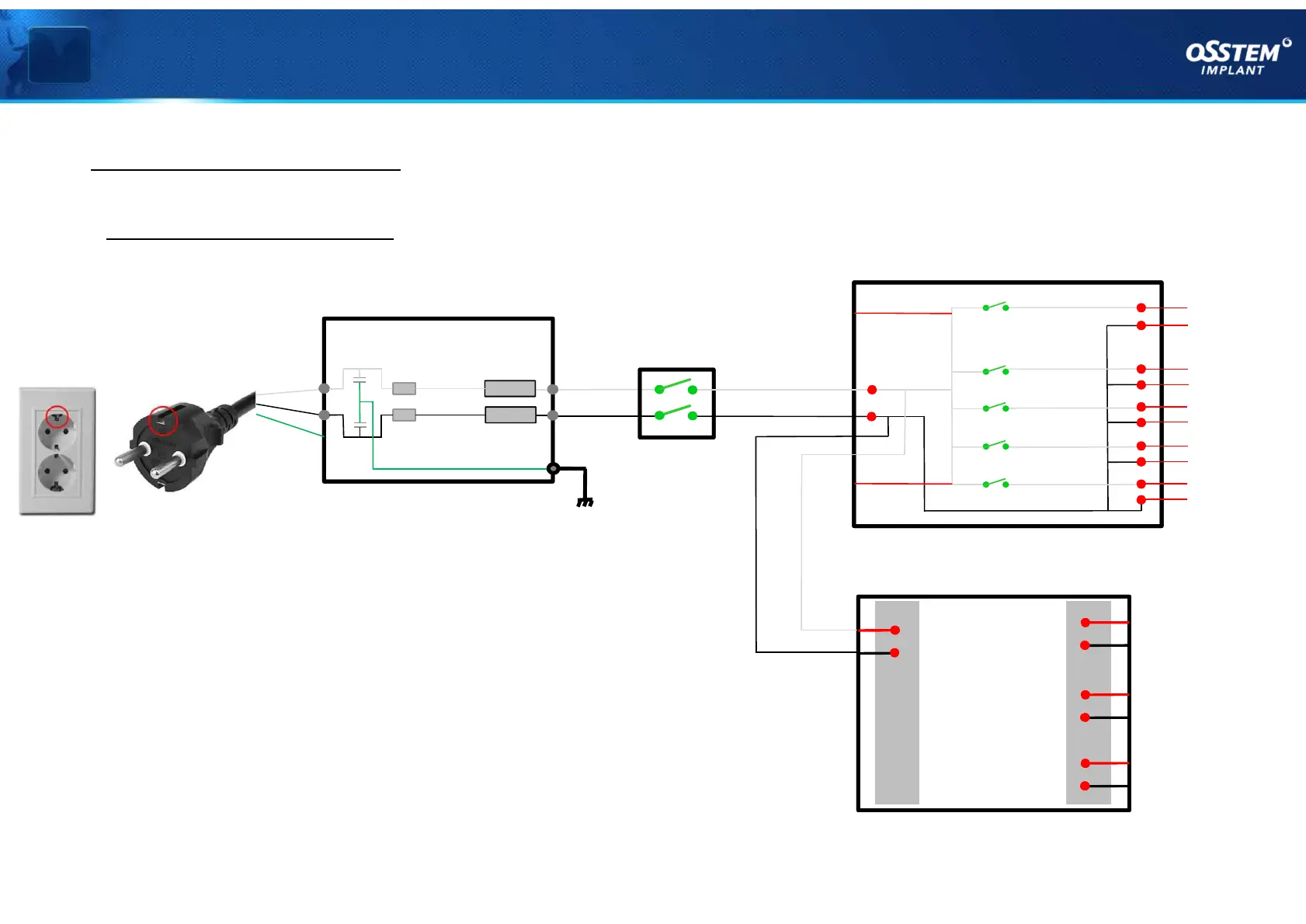

v K3 Power Connection
§ AC220V Power LINE
Ⅰ Electrical equipment installation
『Power Connection』
