Ⅲ K3 UNIT CHAIR Installation

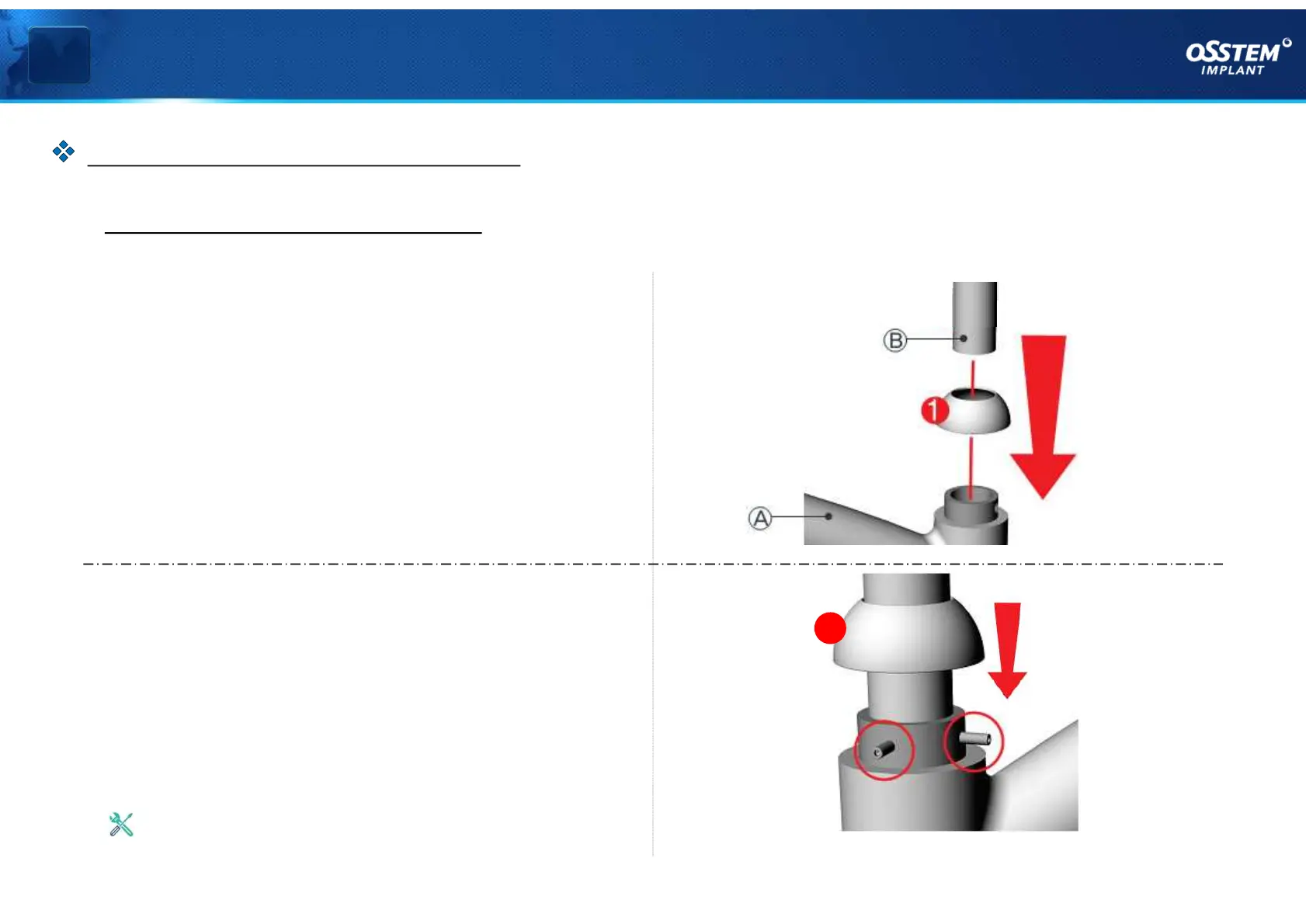

MONITOR ARM INSTALLATION
§ Installation procedures #1
1. Install Light Pole
As shown in <Figure 01>, level off the Large Arm
(A) and insert the Light Pole (B) in the vertical
direction.
2. Fasten Large Arm Assembly Bolts
As shown in <Figure 02>, fasten 2 headless bolts
in Large Arm (A) to fix the Light Pole (B) and place
the Large Arm Cover ①.
Use 4mm T-wrench
1
< Figure 02 >
< Figure 01 >
『MONITOR ARM Installation』
