Ⅲ K3 UNIT CHAIR Installation
MONITOR ARM INSTALLATION
§ Installation procedures #2
3. Install Monitor Arm Support

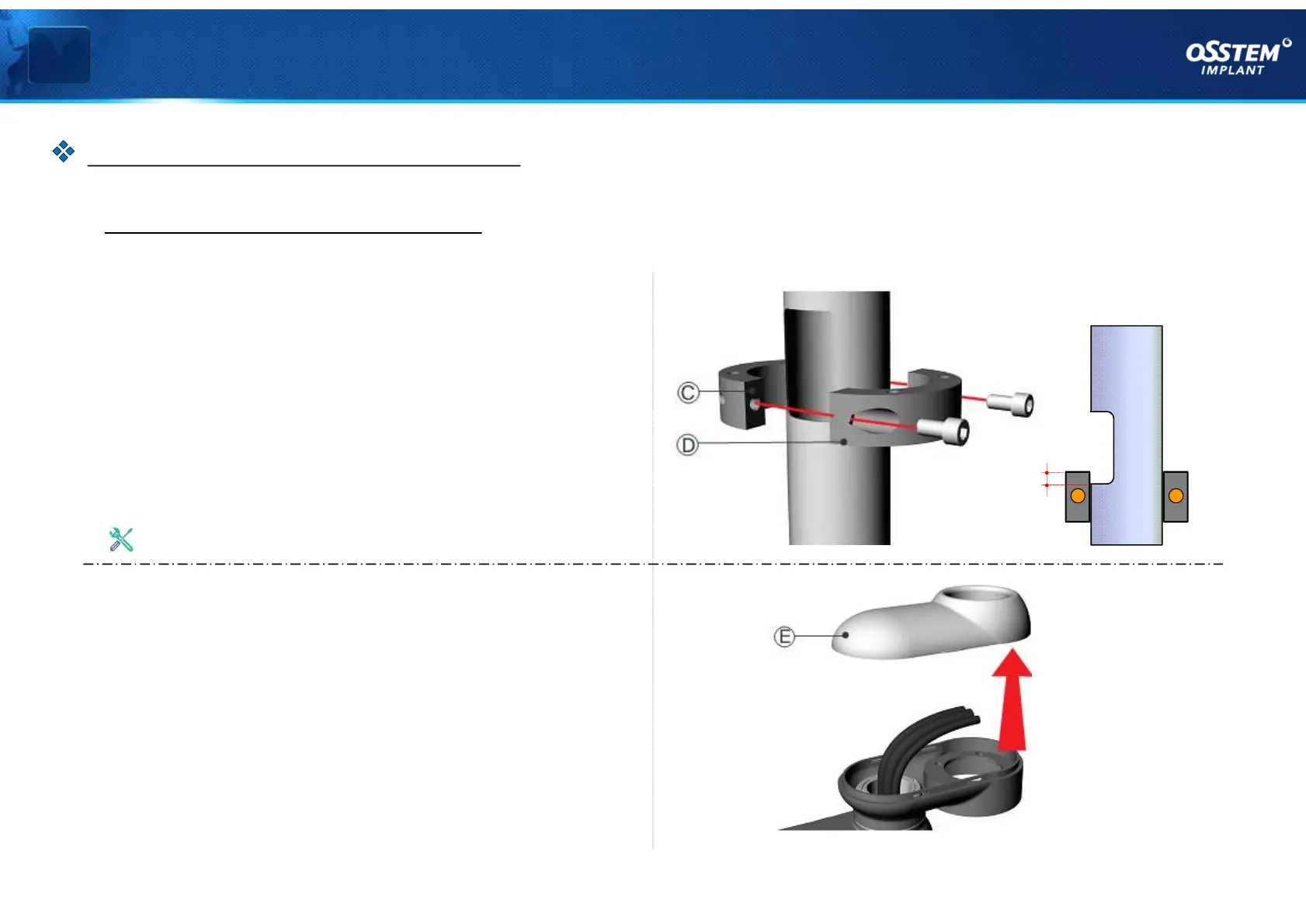

As shown in <Figure 03>, align Support_Left (C)
and Support_Right (D) on Light Pole (B) and fasten
with bolts.
4. Remove Pole Arm Body Cover
As shown in <Figure 04>, remove the Pole Arm
Body Cover (E).
< Figure 04 >
< Figure 03 >
Use 5mm T-wrench
5 to 10mm
※ Installation height
『MONITOR ARM Installation』
To Next Page
