Ⅲ K3 UNIT CHAIR Installation
DOCTOR TABLE INSTALLATION
§ Installation procedures #2
3. Insert Wire in Doctor Table
Assembly

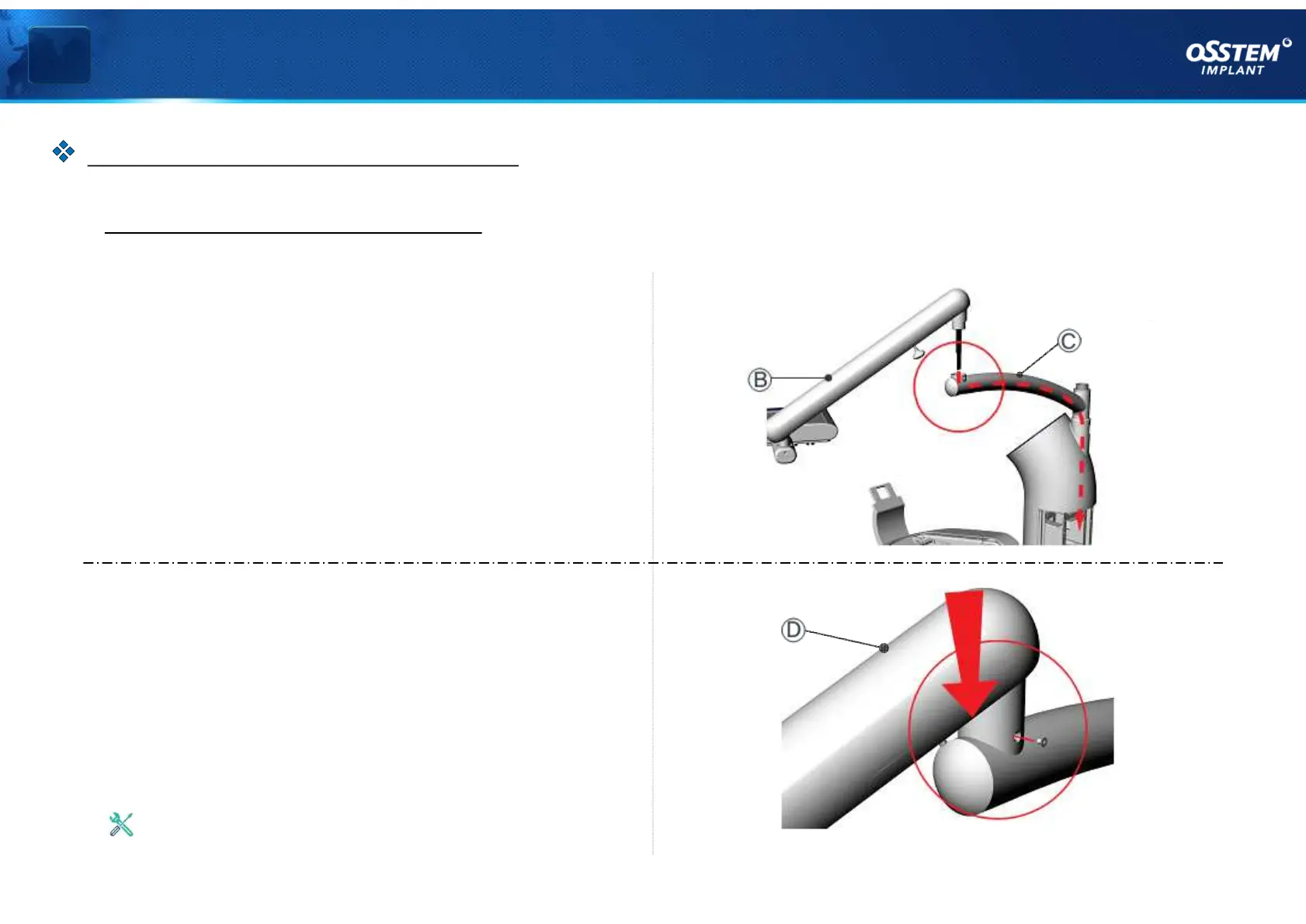

As shown in <Figure 03>, hold the Doctor Table
Assembly (B) and pass the wire through the inside
of Large Arm (C) to insert it inside the unit.
4. Fix Balance Arm Assembly
As shown in <Figure 04>, insert Balance Arm (D)
in Large Arm (C) and fasten with bolts.
< Figure 04 >
< Figure 03 >
Use 4mm T-wrench
『TABLE Installation』
To Next Page
