Osstem Implant K3 - DC24 V Table PCB Power Check

98
Ⅱ Wiring Test
v Operating status between PCBs (chair operation)
§ DC24V Table PCB power check

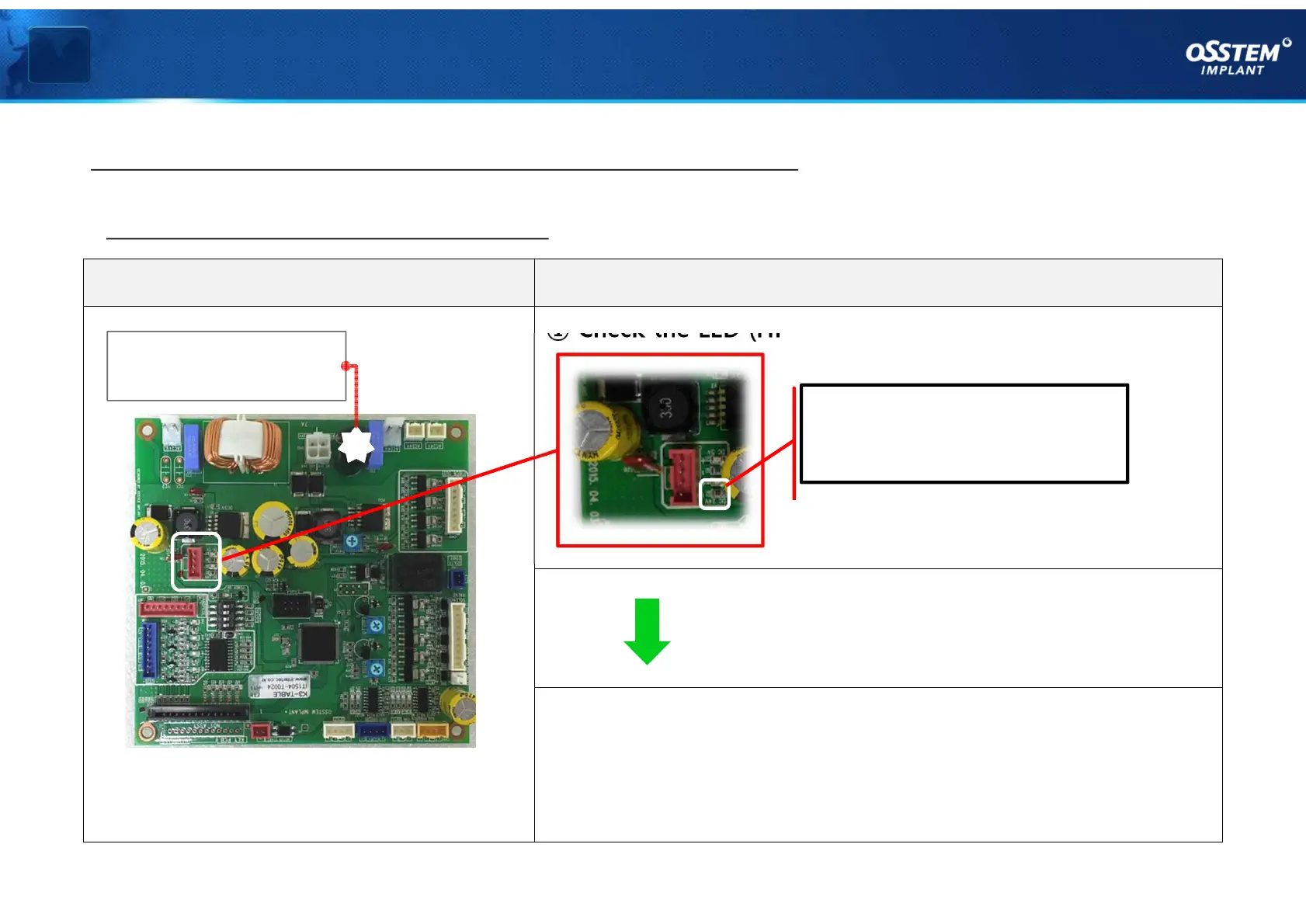

『TABLE PCB』
Table PCB Checklist
①
Check the LED (HP Air/Water power) operation
②
Check the fuse for main PCB on the right side
Spec. : 1.6A
HP Air/Water
control power fuse
DC 24V LED
Table HP Air/Water
Power supply
IF DC 5V LED is OFF
