Osstem Implant K3 - SCALER Connection

81
Ⅰ Electrical equipment installation

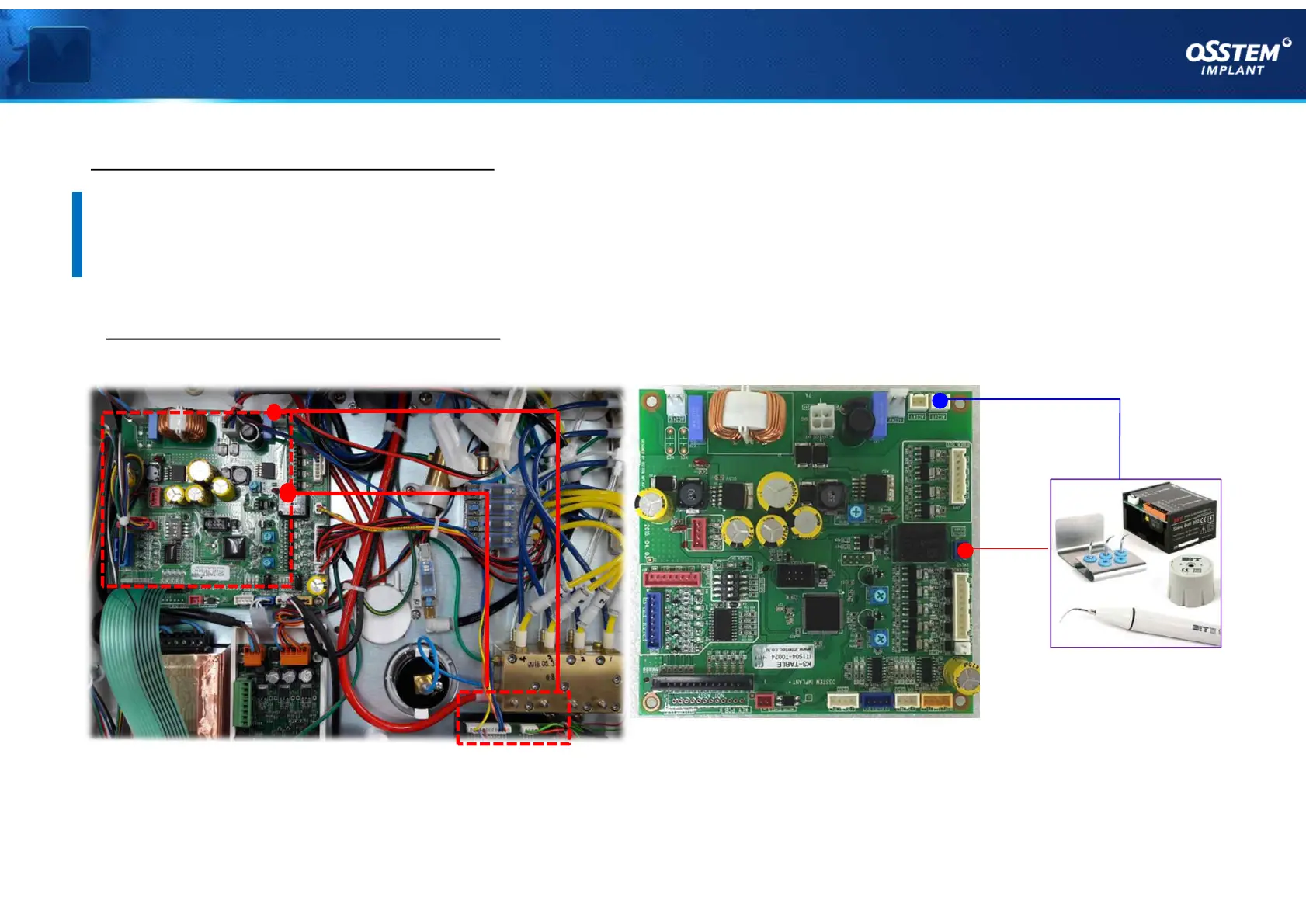

v K3 PCB Harness Connection
『TABLE PCB』
Table
SCALER
AC24V
Start
signal
• If the power supply line and the start signal line are switched with each other,
it will cause a critical error in the Scaler PCB.
§ Table – SCALER Connection
