Ⅲ K3 UNIT CHAIR Installation
UNIT INSTALLATION

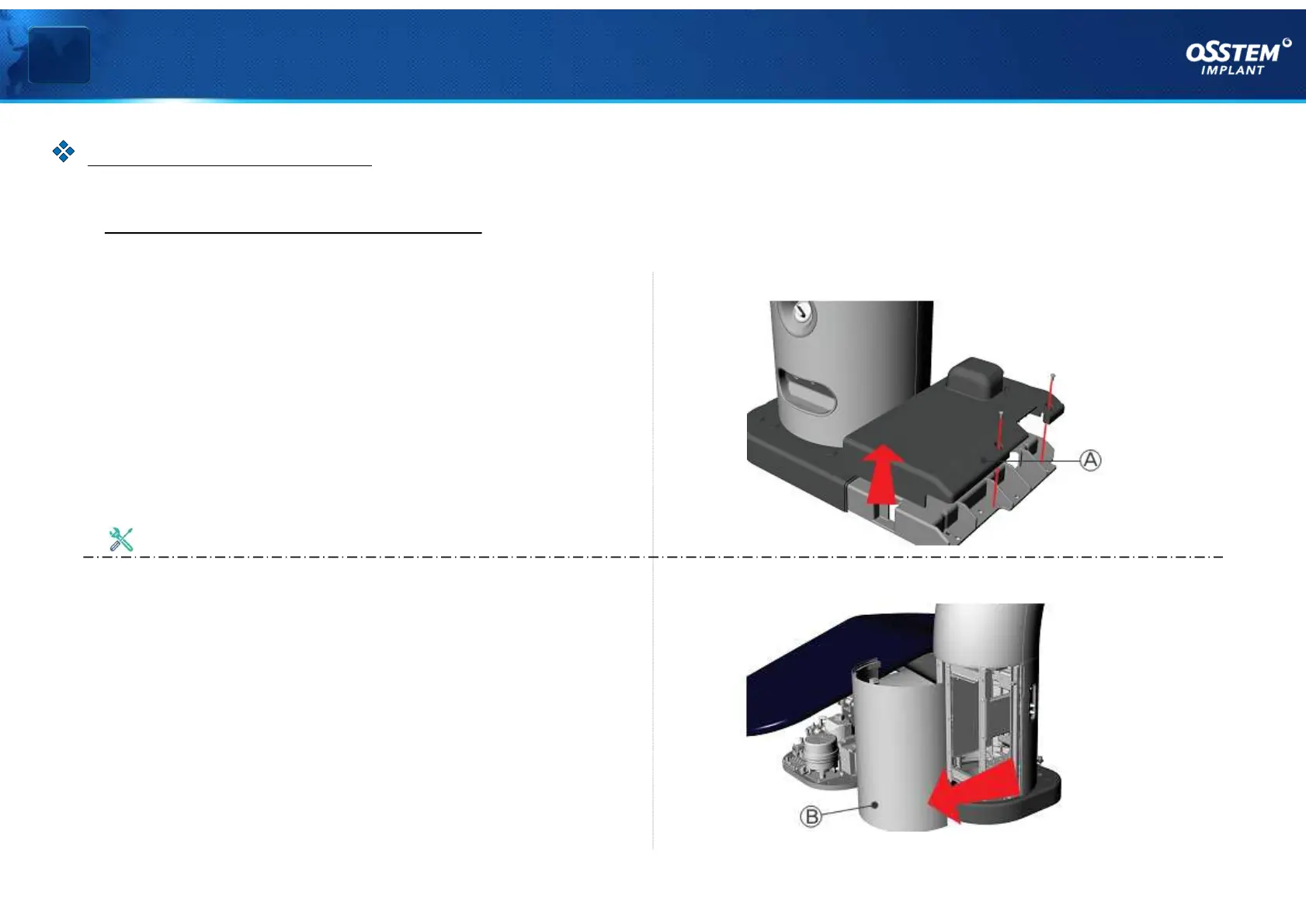

§ Installation procedures #1
1. Remove Unit Base Cover_R
Unfasten 2 bolts as shown in <Figure 01>
and remove the Unit Base Cover_R (A).
2. Remove Back Lower Cover
As shown in <Figure 02>, grab the Back
Lower Cover (B) and pull in the direction
of the arrow to remove it from the cover.
< Figure 02 >
< Figure 01 >
Use a Phillips screwdriver
『UNIT Installation』
To Next Page
