Ⅲ K3 UNIT CHAIR Installation
UNIT INSTALLATION

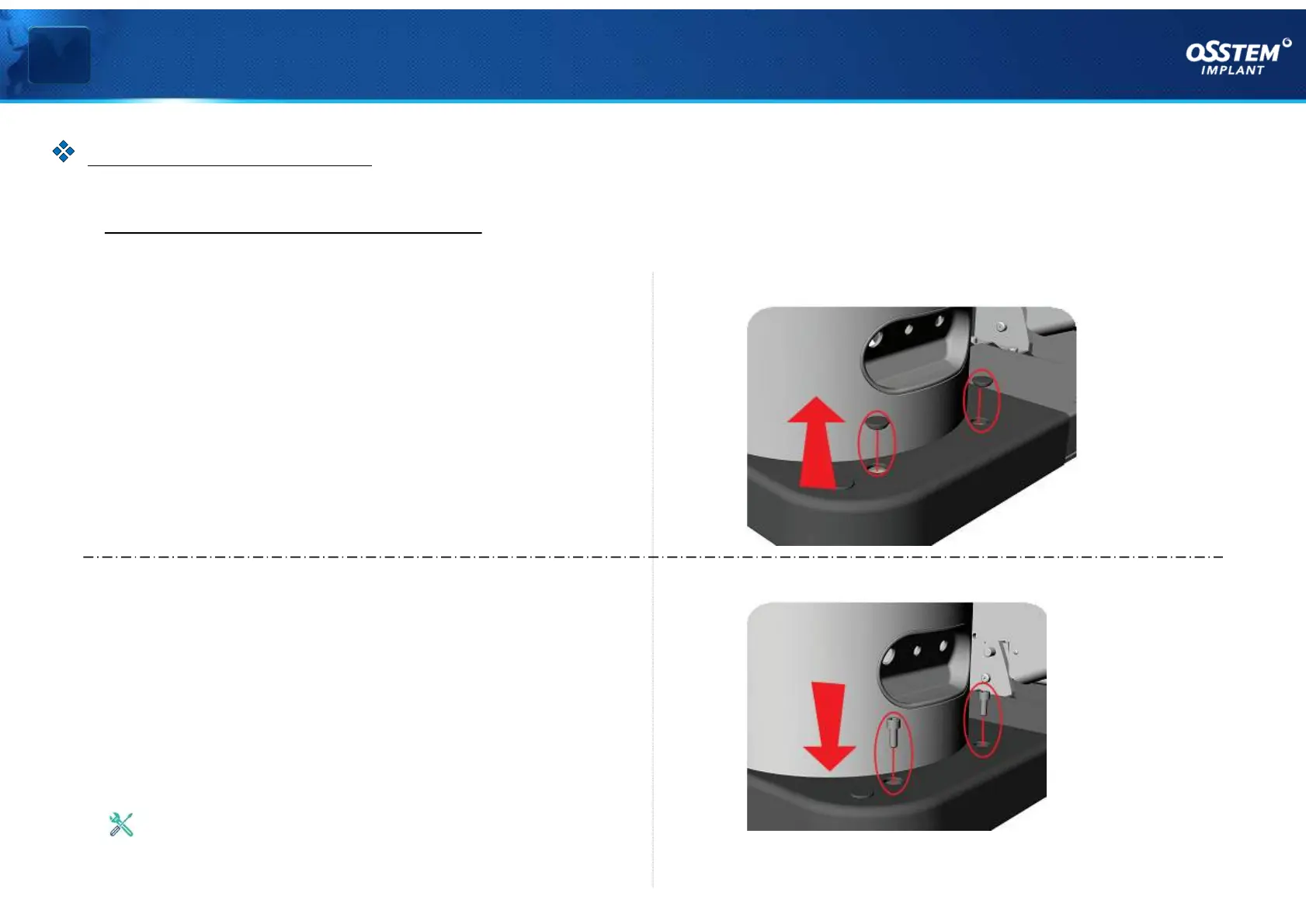

§ Installation procedures #3
5. Remove bolt cap
As shown in <Figure 05>, remove the rubber cap
mounted on Unit Base Cover_L.
6. Remove fixing bolt
As shown in <Figure 06>, fasten the bolt fixing
the Main Plate (C) and the Unit Assembly (A), and
put the rubber cap into the original position.
< Figure 06 >
< Figure 05 >
Use 6mm T-wrench
『UNIT Installation』
To Next Page
