72
Electrical equipment installation
v

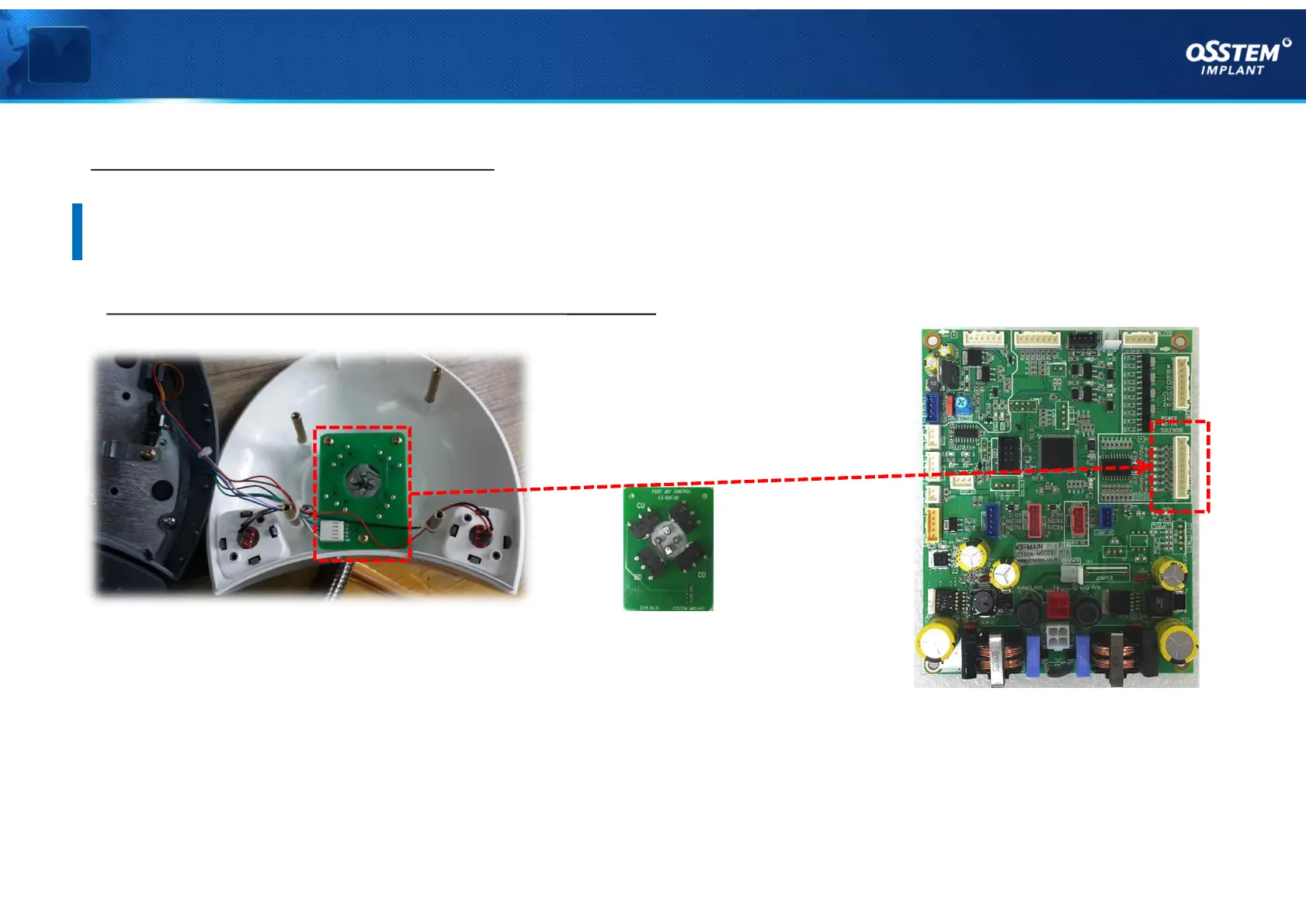

K3 PCB Harness Connection
FOOT PCB
§ Connect to Foot Harness à Main PCB
Delivers chair operation control signals via manual position button,
rinsing and return buttons
Foot Pedal
Foot PCB
Main PCB
ü Precautions: For Elec. Low HP, the foot pedal features a 3-pin harness (wire), which is intended to
deliver RPM (speed) control signals for the Elec. Low HP, and this harness must be connected to the
Motor PCB located at the table.
