Operation
32
DTX-2200-3000 AC/DC

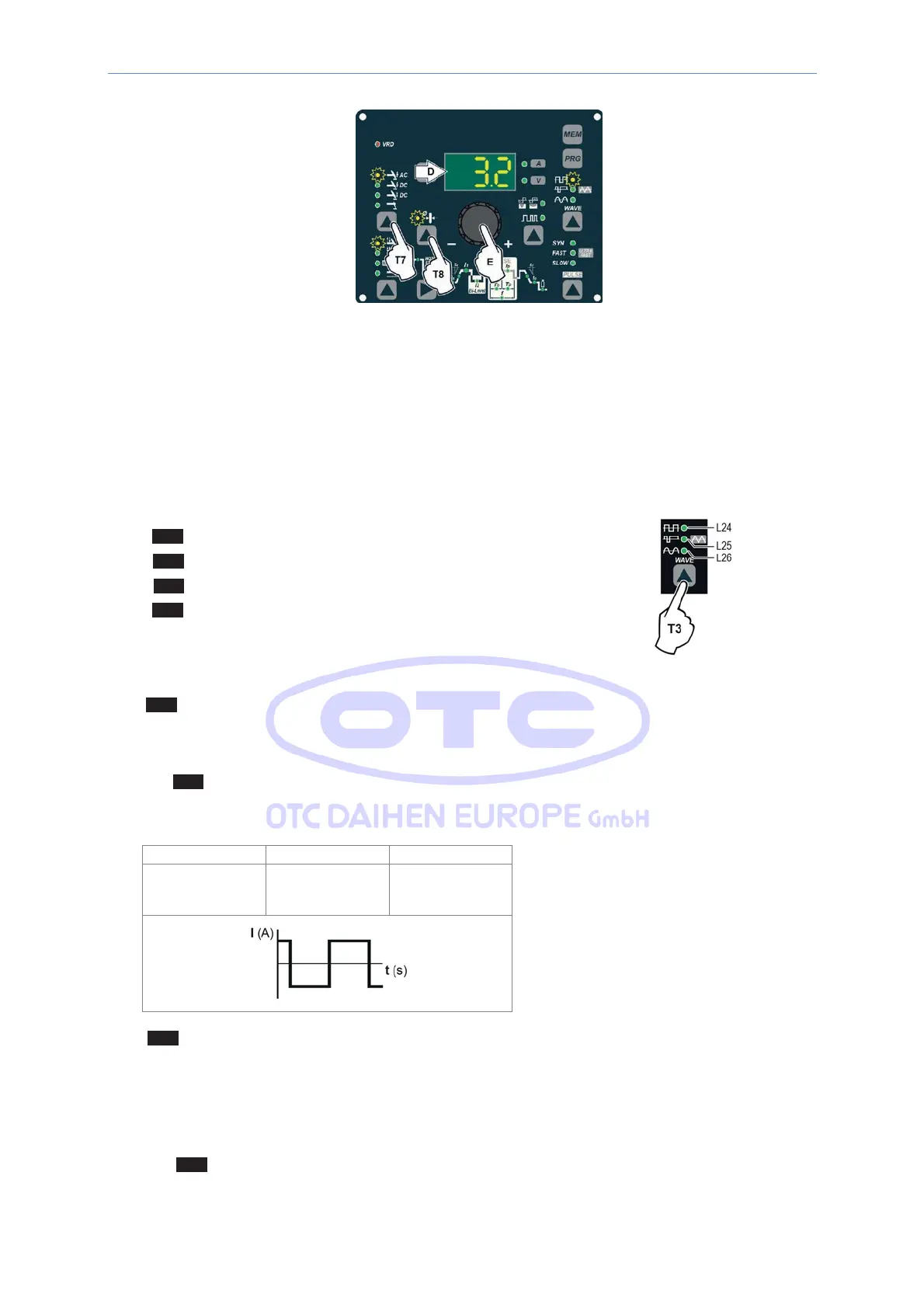

To confirm the diameter selected, simply push the ELEC TRODE DIAMETER Key (T8) again (ELECTRODE
DIAMETER LED off).
4) SELECTING THE WAVE
SHAPE
By pushing the WAVE (T3) button the operator can choose the best wave shape for their welding needs, from
the 4 wave shapes included:
L24 DYNAMIC TIG
L25 SPEED TIG
L25 COLD TIG
L26 SOFT TIG
L24 DYNAMIC TIG
Square wave: highly dynamic arc for all applications.
W
ARNING:
LED L24 switched on and steady.
The
display shows the peak current for pre-setting and welding.
2200 AC/DC 3000 AC/DC
TIG AC
DYNAMIC TIG
5 - 220 A 5 - 300 A
L25 SPEED TIG
Mixed wave: excellent penetration with high welding speed and low electrode
consumption. Ideal for average /
thick thick
nesses and vertical welds. Increases penetration, thermal control of the arc, and lifespan of the
electrode.
W
ARNING:
LED L25 switched on and steady.
The
display shows the peak current for pre-setting and welding.
