OTC DTX-3000 AC/DC - Page 74

Spare parts list
74

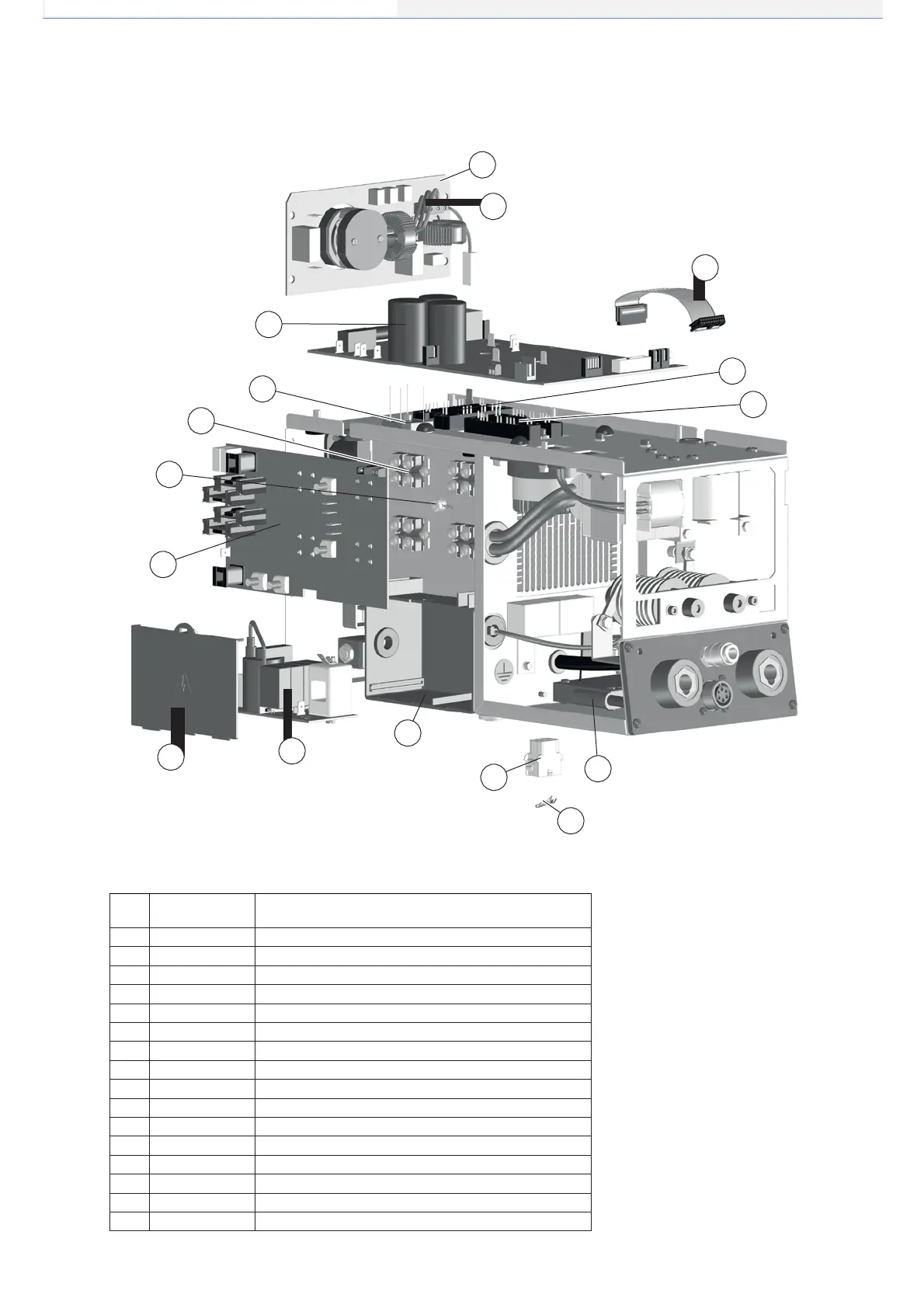

DTX-2200-3000 AC/DC
19
20
21
34
22
33
23
32
31
30
29
28
27
26
24
25
Pos. DTX-2200
AC/DC
Description
19 377094 EMC filter PCB
20 413538 EMC filter PCB wiring
21 413536 Auxiliary wiring
22 286036 "Dual Boost Chopper" IGBT
23 286038 "Full Bridge" IGBT
24 376930 Torch filter with connector
25 403782 Terminal for 3x2 poles female connector
26 419074 3x2 Poles female connector
27 352466 HF PCB box
28 377059 High frequency (HF) PCB
29 352468 HF PCB cover
30 377097 Secondary circuit diode PCB
31 478786 Secondary circuit diode thermostat
32 423236 Secondary diode
33 455509 Primary rectifier
34 240473 Primary inverter PCB assembly
