Wiring diagram (DTX-3000 AC/DC
75

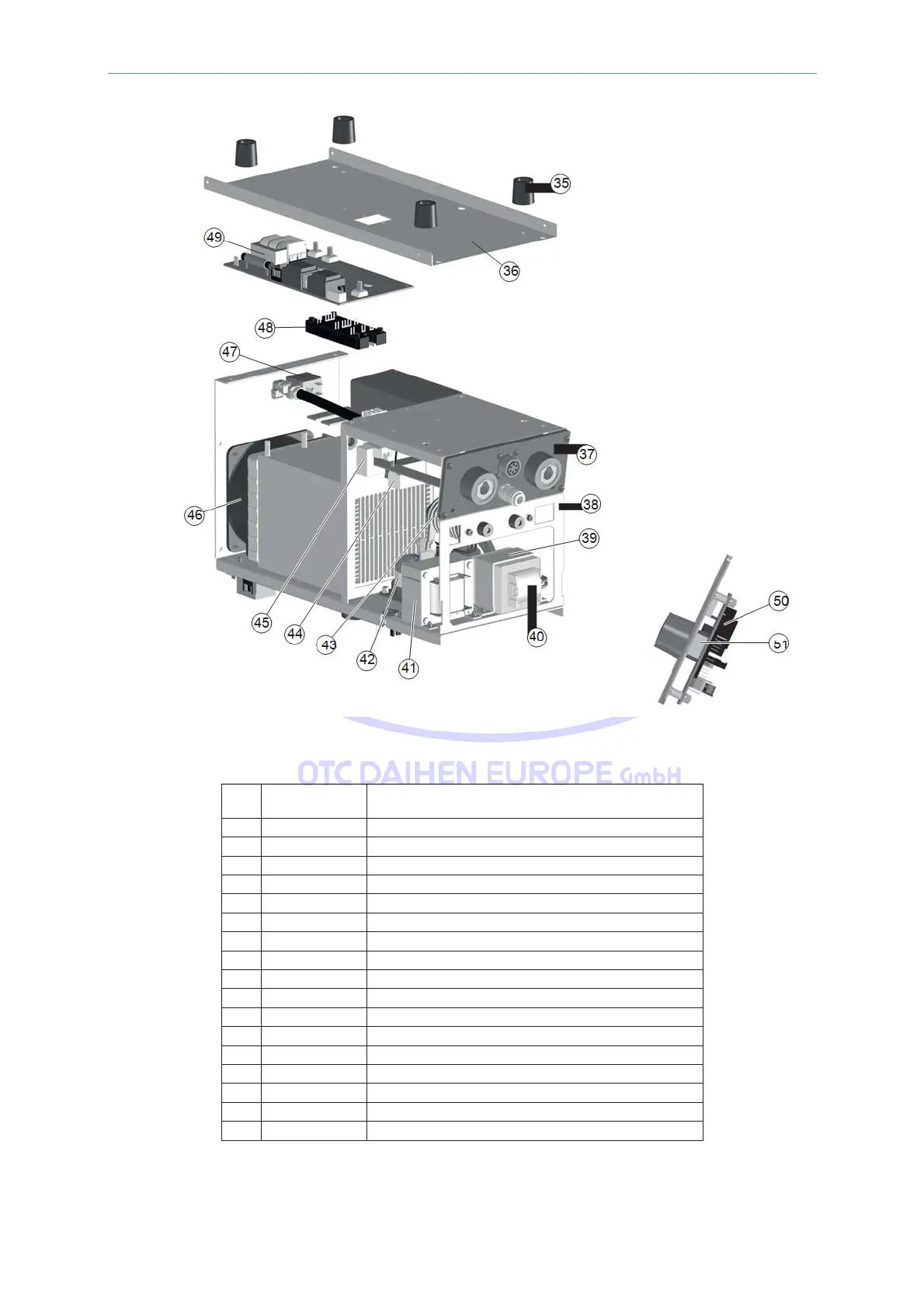

DTX-2200-3000 AC/DC
Pos. DTX-2200
AC/DC
Description
35 431331 Foot
36 404933 Base
37 352944 Dinse Insulation
38 449495 Internal metallic frame
39 463217 Transformer support
40 481402 Transformer
41 240234 Inductor
42 240232 PFC inductors
43 239995 HF transformer
44 427681 HF filter
45 481946 Current transducer
46 486383 Fan motor
47 425933 Gas solenoid valve
48 286041 Secondary IGBT
49 240510 Secondary IGBT assembly
50 377095 Digital Interface PCB
51 454150 Encoder
