14. EXPLODED VIEWS AND PARTS LIST
14.1 Meter Size 50 Exploded View and Parts List
- When you order replacement parts, specify the stock No., flowmeter model, instruction manual No.,
symbol No., part name and the quantity desired.

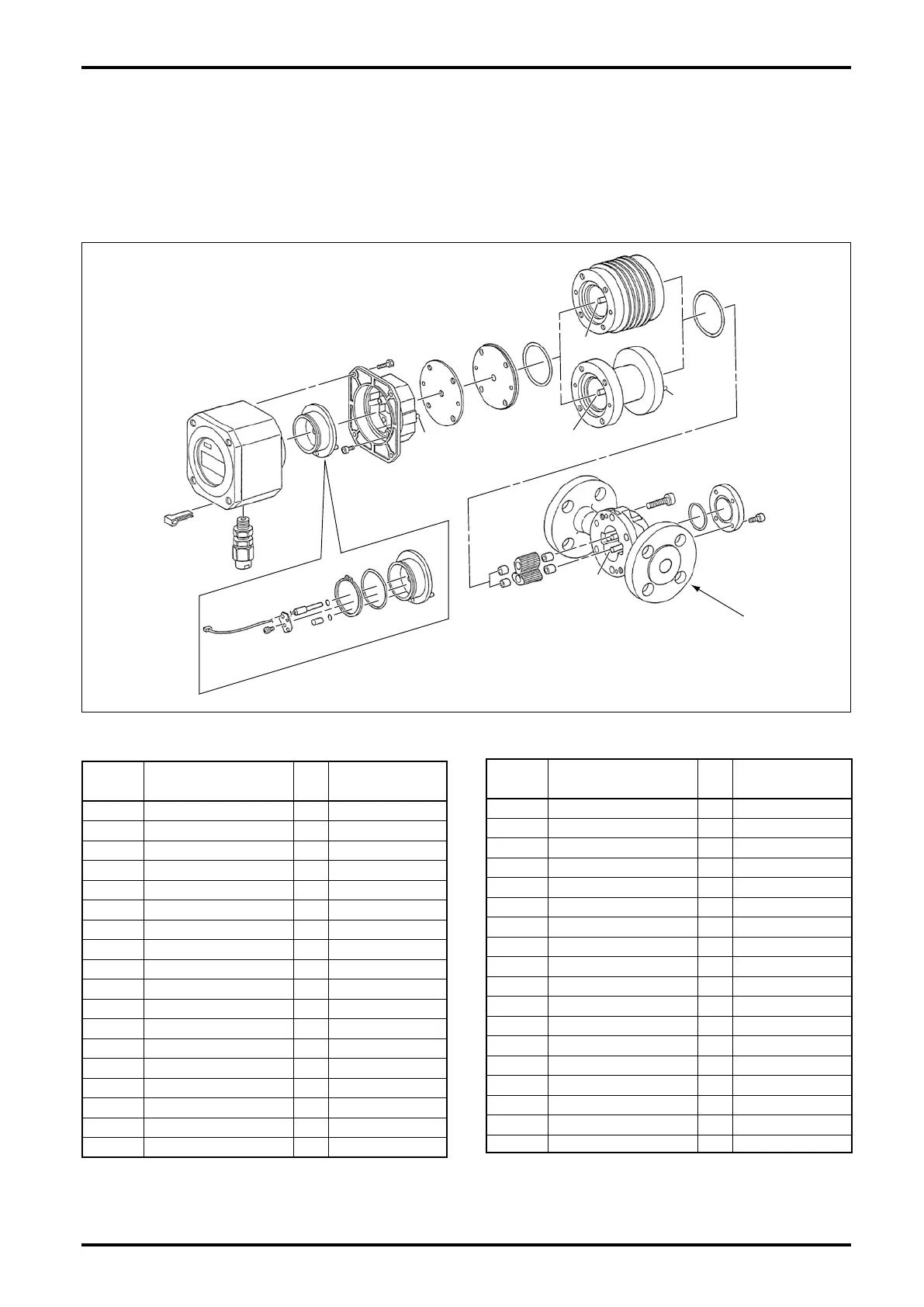

EXPLODED VIEW
404
500
158
160
153
152
154
156
155
151
204
201
202
204 203
101
104
109
103
106
400
300
113
111
112
114
115
120
107
121
121
123A
123B
110
108
FLOW
PARTS LIST, Meter Size 50
Symbol
No.
Part Name Q'ty Remarks
101
Meter Body 1
103
Rear Cover 1
104
Front Cover Fitting Bolt 6 M8×35
106
Rear Cover Fitting Bolt 4 M6×15
▲
107 O-Ring 1 G60
▲
108
O-Ring 1 G65
▲
109 O-Ring 1 G40
110 Front Cover Locating Pin 2
111 Skirt 1
112
Skirt Locating Pin 2
113
Skirt Fitting Bolt 4 M8×20
114
Register Fitting Bolt 4 M6×15
115
Gasket 1
120
Sealing Flange 1
121
Iron Slug 1
151
Sensor Fitting Disc 1
152
Sensor Retainer 1
153
Blind Plug 1
Symbol
No.
Part Name Q'ty Remarks
154
O-Ring B 2 S10
155
O-Ring C 1 G65
156
C-shaped Stop Ring 1
158
Cross Recess Pan Head Screw 2 M4 X 8 (w/washer)
160 Sensor 1
※
201 1st Rotor 1 w/Signal magnet
※
202
2nd Rotor 1 w/Signal magnet
203
Rotor Shaft 2
※
204
Rotor Bearing 4
300
Sensor Assembly 1 set (151 to 158, 160)
400
Register Assembly 1 set
401
Register Cover 1
402
Cover Fitting Bolt 4 M6 (w/washer)
404
Selector Magnet 1
405
Internal Assembly 1 set
500
Pressuretight Packing 1 set
123 A
Heating Tube 1 set (w/screen, fr. cover)
123 B Cooling Tube 1 set (w/screen, fr. cover)
▲
: Recommended spare parts.
※
: Rotors 201, 202 and rotor bearings 204 are available as an assembly.
