Oval 50 - Meter Sizes 52 and 53 Exploded View and Parts List

B-149-4N-E
25
404
500
158
160
153
154
156
155
151
203
204
204
211
201
213
107
104
102
400
300
108
103
114
113
101109
111
112
113
108
108
700B
700A

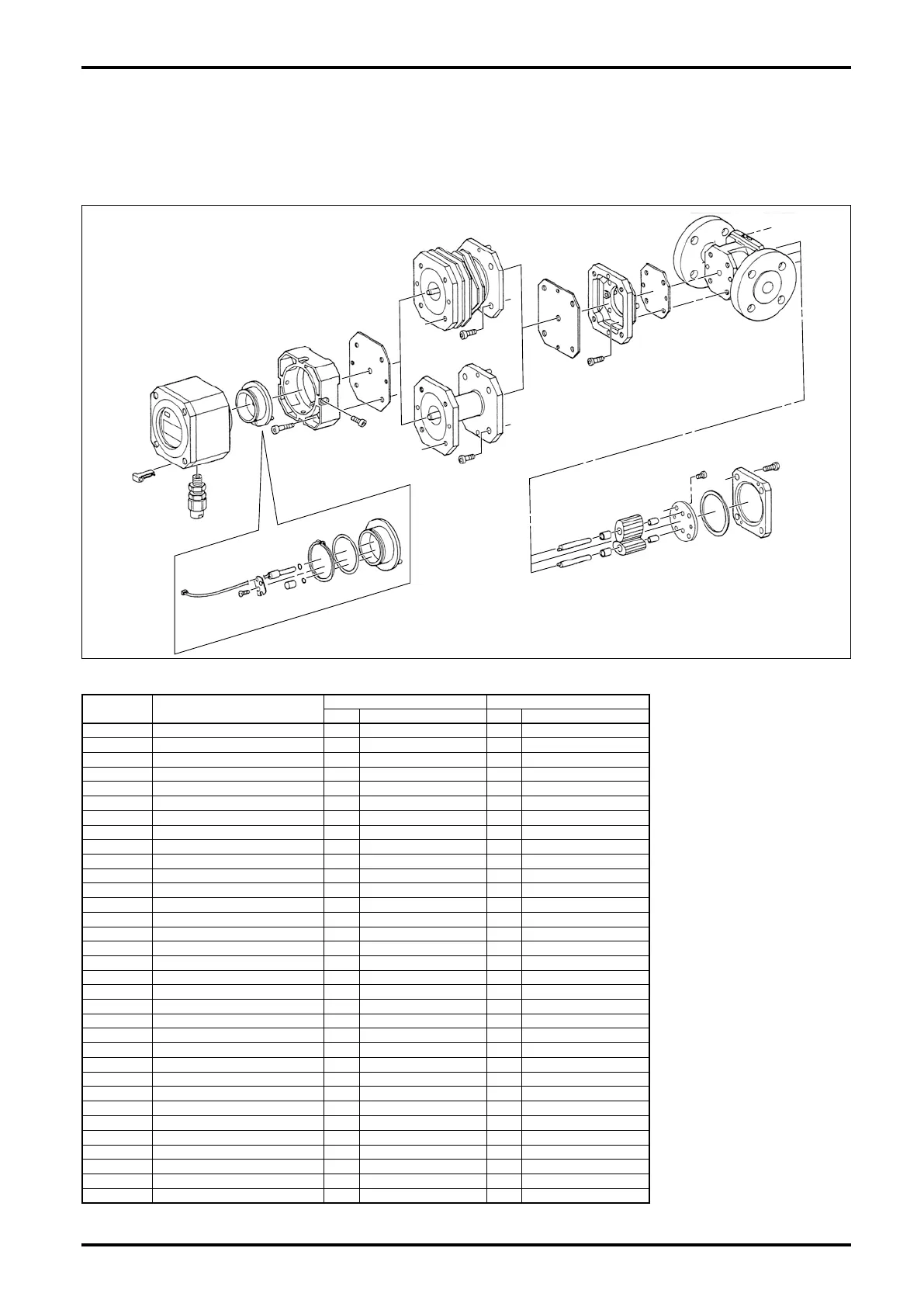

14.2 Meter Sizes 52 and 53 Exploded View and Parts List
- When you order replacement parts, specify the stock No., flowmeter model, instruction manual No.,
symbol No., part name and the quantity desired.
EXPLODED VIEW
4 PARTS LIST, Meter Sizes 52 and 53
Sym. No. Part Name
Size 52 Size 53
Q'ty Remarks Q'ty Remarks
101
Meter Body 1 1
102
Rear Cover 1 1
103
Skirt 1 1
▲
104
Gasket 1 1
107
Rear Cover Fitting Bolt 4 M12×30 4 M12×30
108
Skirt Fitting Bolt 8 M10×20 8 M10×20
109
Gasket 1 t=1.5 1 t=1.5
111 Meter Body Skirt 1 1
112
Fitting Bolt 4 M8×12 4 M8×12
113
Gasket 2 t=1.5 2 t=1.5
114
Register Fitting Hex Socket Head Screw 4 M6×15 4 M6×15
151
Sensor Fitting Disc 1 1
152
Sensor Retainer 1 1
153
Blind Plug 1 1
154
O-Ring B 2 S10 2 S10
155
O-Ring C 1 G65 1 G65
156
C-shaped Stop Ring 1 1
158
Cross Recess Pan Head Screw 2 M4×8 (w/washer) 2 M4×8 (w/washer)
160
Sensor 1 1
※
201 First and Second Rotor 1 each w/signal magnet 1 each w/signal magnet
203
Rotor Shaft 2 2
※
204 Rotor Bearing 4 4
211
Top Cover 1 1
213
Top Cover Fitting Bolt 4 M6×12 4 M6×12
300
Sensor Assembly 1 set (151 to 158, 160) 1 set (151 to 158, 160)
400
Register Assembly 1 set 1 set
401
Register Cover 1 1
402
Cover Fitting Bolt 4 M6 (w/washer) 4 M6 (w/washer)
404
Selector Magnet 1 1
405
Internal Assembly 1 set 1 set
500
Pressuretight Packing 1 set Oprion 1 set Oprion
700A
Cooling Tube 1 set 1 set
700B
Heating Tube 1 set 1 set
▲
: Recommended spare parts.
※
: Rotors 201 and rotor bearings 204 are available as an assembly.
