OWON HDS Series Handheld DSO & DMM 5-Input Connections

4. Oscilloscope probes.

5. Oscilloscope channel inputs: the upper one is for Channel 1 (CHI1), while the lower one is for

Channel 2 (CH2).

5.2 Description for Front Panel and Keys

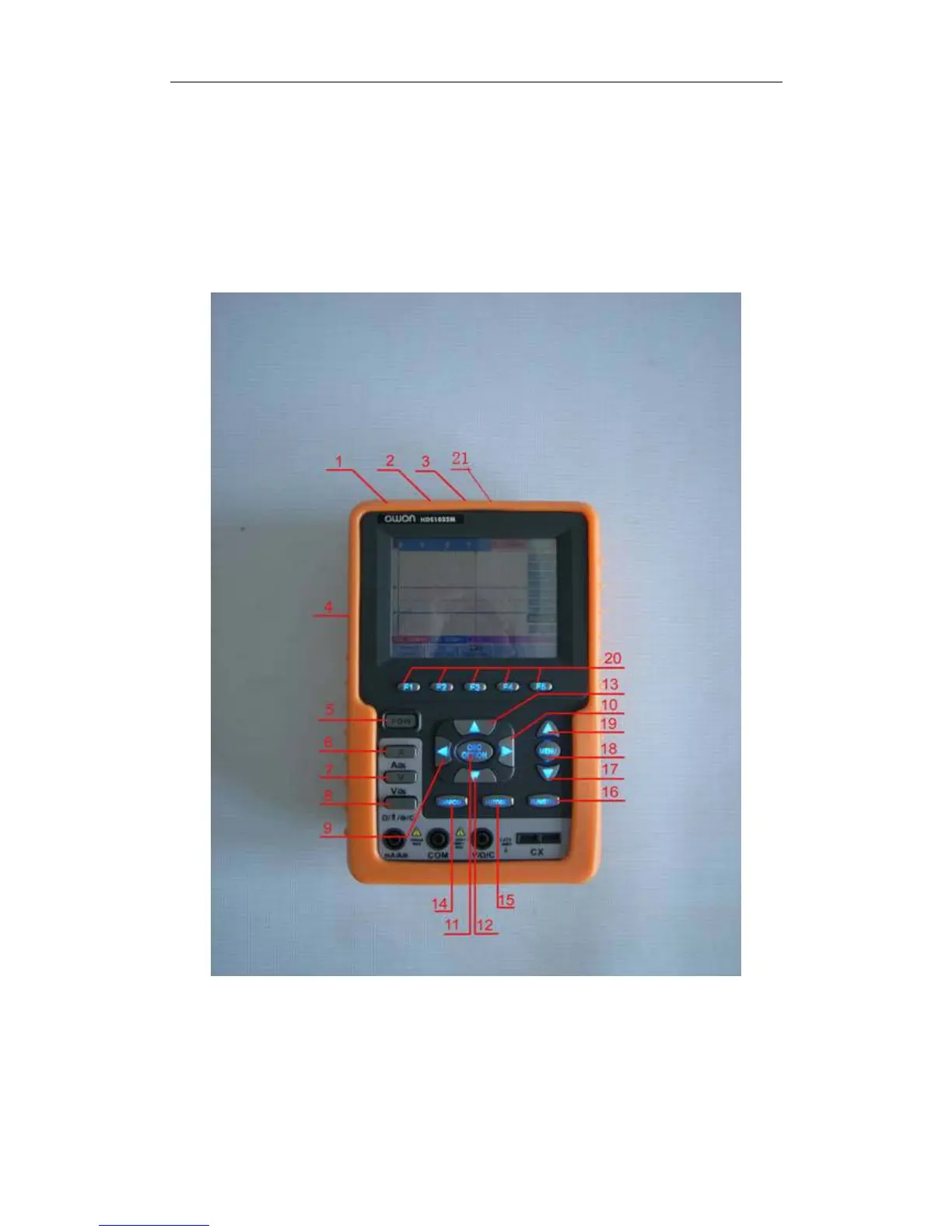

See the following figure 3:

figure 3

Description:

1. Power adapter jack.

2. Serial port.

3. USB jack.

Questions and Answers:

Need help?

Do you have a question about the Owon HDS series and is the answer not in the manual?

General

Channels	2
Bandwidth	Up to 100 MHz
Multimeter Functions	Voltage, Current, Resistance, Capacitance
Resistance Measurement Range	400Ω ~ 40MΩ
Power Supply	Lithium Battery
Connectivity	USB
Battery Life	About 6 hours
Weight	Approx. 500 g
Duty Cycle Range	0.1% to 99.9%
Data Storage	Internal memory
Voltage Measurement Range	400mV ~ 1000V
Current Measurement Range	0.1 μA to 10 A
