Owon HDS series User Manual

OWON HDS Series Handheld DSO & DMM 8-Advanced Function of Oscilloscope

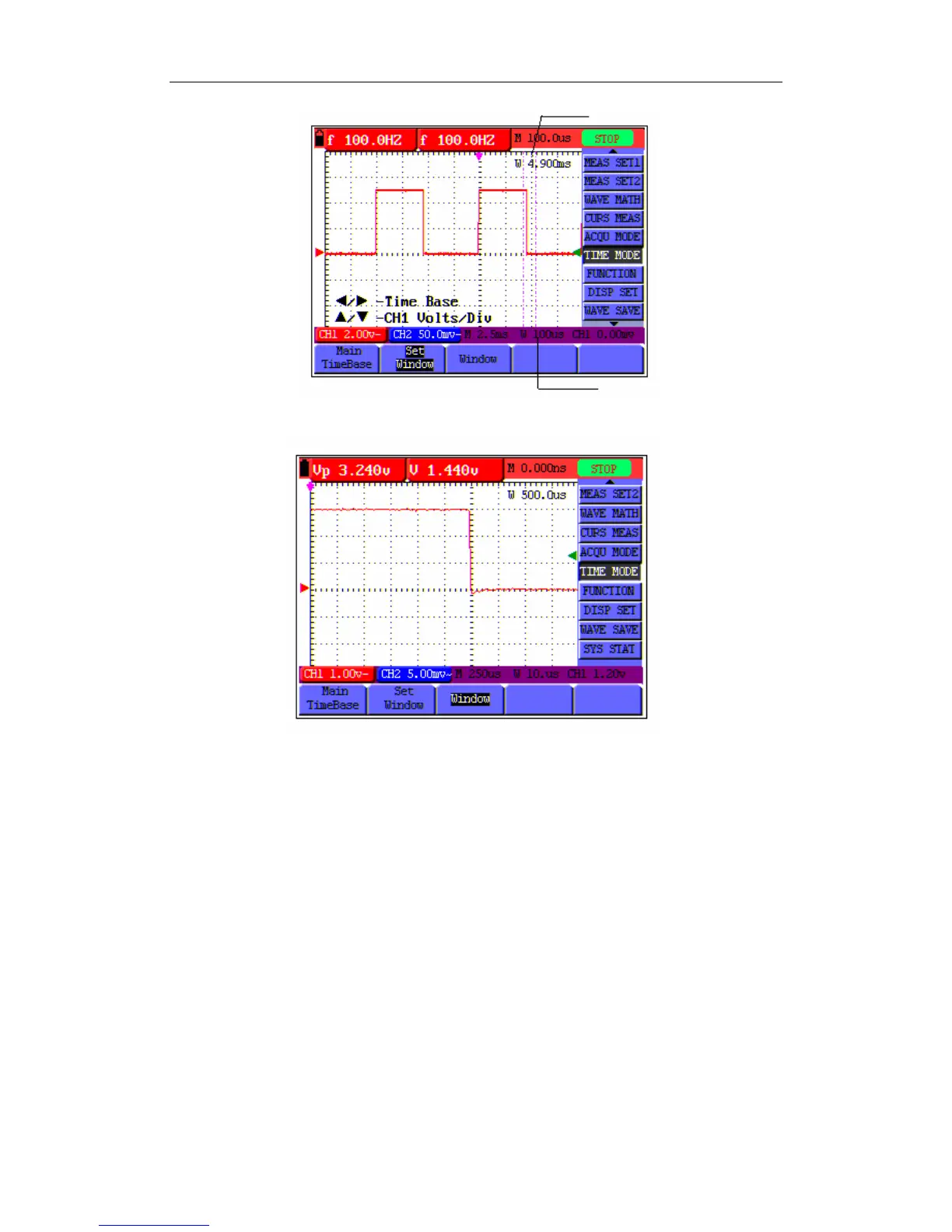

figure 55: Window Setting
figure 56: Window Extension
8.15 Data Transmission
For the operation of data transmission, please execute the following steps:
1. Press MENU key, display the function menu on the right side of the screen.
2. Press MENU ▲ or MENU ▼ key to select display setting mode, display four options at the
bottom.
3. Press F4 key, and select the Bitmap or Vectors for data transmission.
4. Use a data line to connect the oscilloscope and the PC .
5. Open the OWON software that had been installed completely.
6. Setting the parameter under the use’s manual, and then starts data transmission.
５７

Owon HDS series Specifications

General

Channels	2
Bandwidth	Up to 100 MHz
Multimeter Functions	Voltage, Current, Resistance, Capacitance
Resistance Measurement Range	400Ω ~ 40MΩ
Power Supply	Lithium Battery
Connectivity	USB
Battery Life	About 6 hours
Weight	Approx. 500 g
Duty Cycle Range	0.1% to 99.9%
Data Storage	Internal memory
Voltage Measurement Range	400mV ~ 1000V
Current Measurement Range	0.1 μA to 10 A
