Owon HDS series User Manual

OWON HDS Series Handheld DSO & DMM 6-Using the Scope
2. Press MENU ▲ or MENU ▼ key to select measurement 1. Five items selectable are
visible at the bottom of the screen.
3. Press F1 key and select Freq CH1 from the mean square root value item. The
measurement 1 window turns its color into red and shows the frequency for input CH1.
To choose a Peak-Peak measurement for Input CH2, do the following:
1. Press MENU key and the function menu is displayed on the right side of the screen.
2. Press MENU ▲ or MENU ▼ key and select measurement 2, with 5 items selectable
displayed at the bottom of the screen.
3. Press F4 key to select PK-PK CH2 from Peak-Peak item. The measurement 2 window
turns its color to be blue and shows the peak-peak value for input CH2.
See the following figure 12:

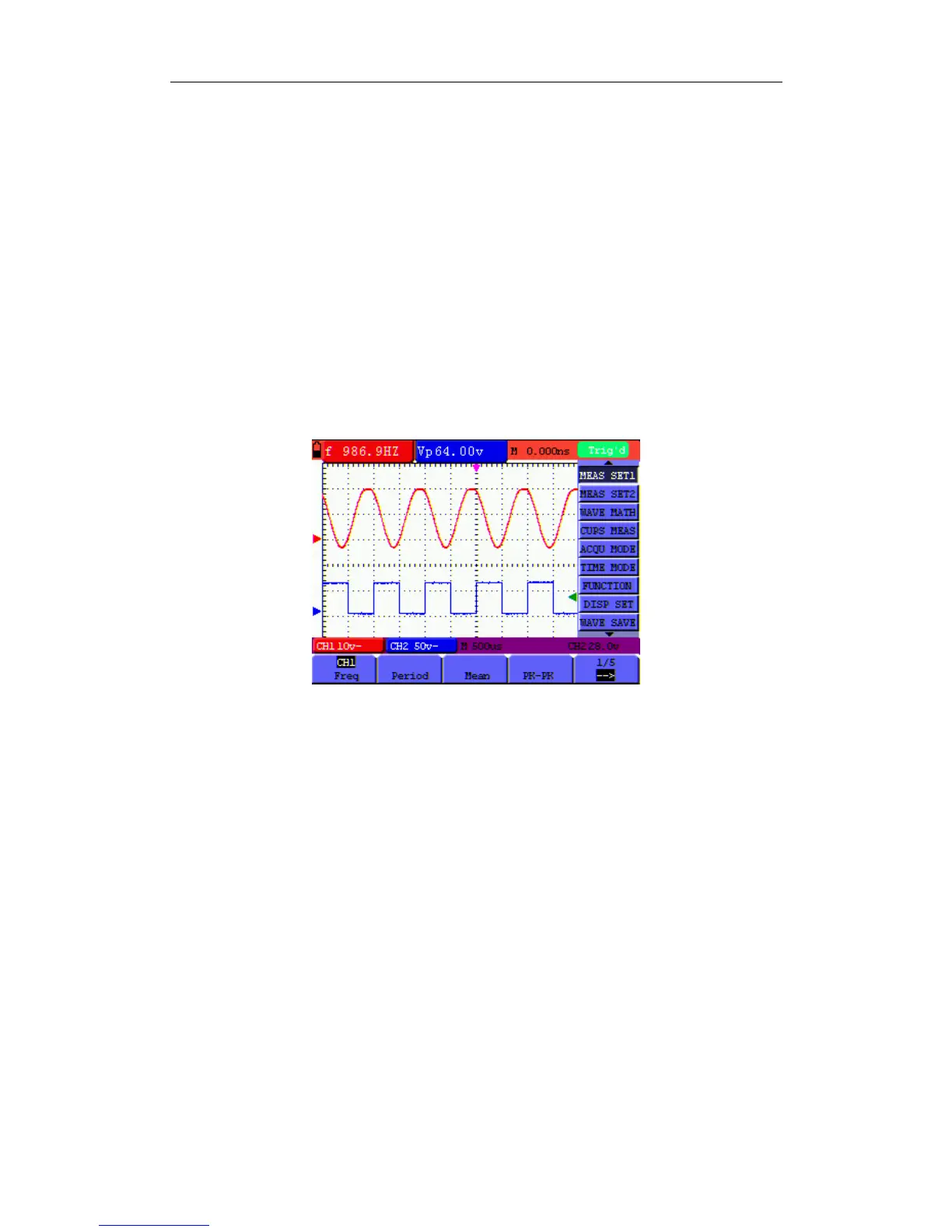

figure 12: Automatic Scope Measurements
6.11 Freezing the Screen
You can freeze the screen (all readings and waveforms)
1. Press the RUN/STOP key to freeze the screen and STOP appears at top right side of the
screen.
2. Press the RUN/STOP key once more to resume your measurement.
See the following figure 13:
18

Owon HDS series Specifications

General

Channels	2
Bandwidth	Up to 100 MHz
Multimeter Functions	Voltage, Current, Resistance, Capacitance
Resistance Measurement Range	400Ω ~ 40MΩ
Power Supply	Lithium Battery
Connectivity	USB
Battery Life	About 6 hours
Weight	Approx. 500 g
Duty Cycle Range	0.1% to 99.9%
Data Storage	Internal memory
Voltage Measurement Range	400mV ~ 1000V
Current Measurement Range	0.1 μA to 10 A
