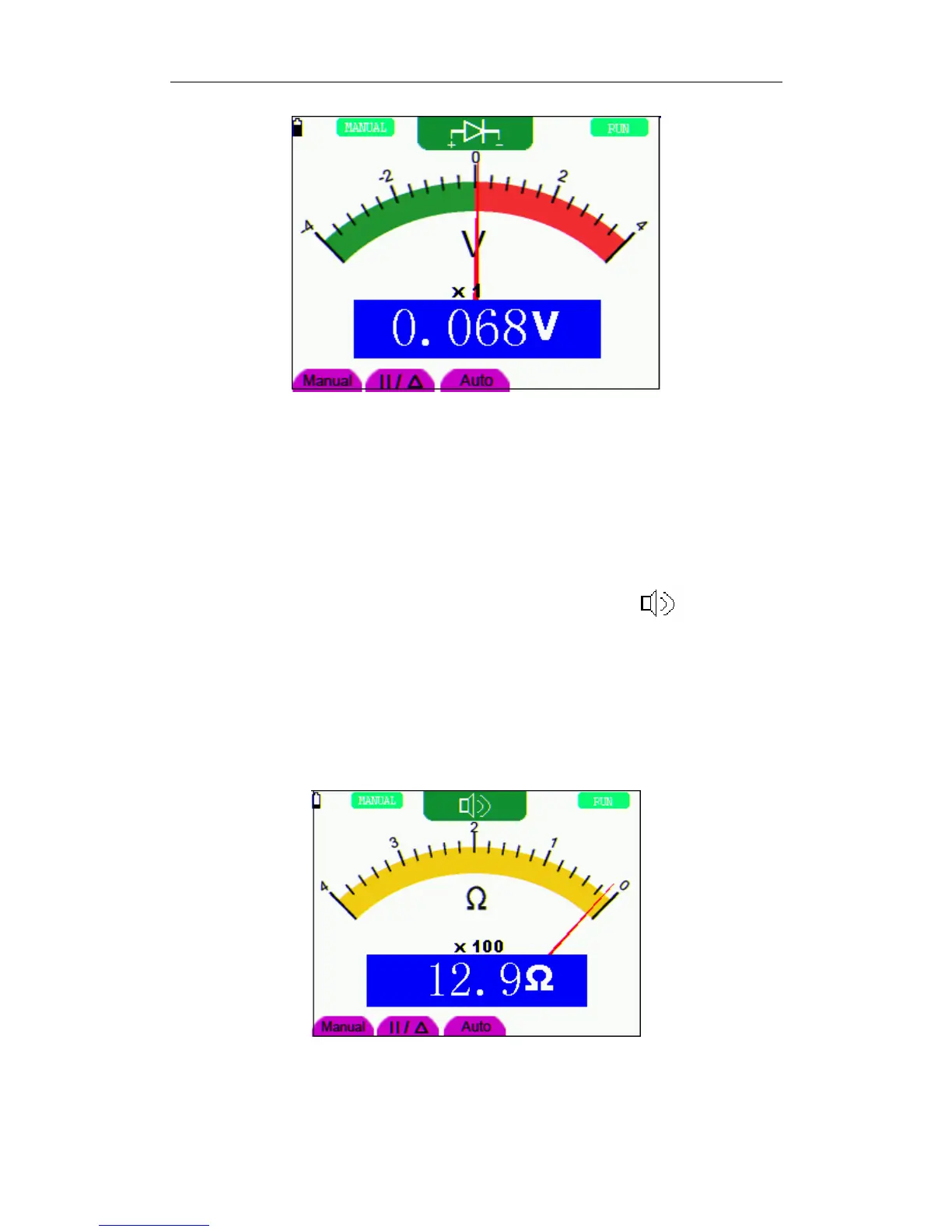

figure 22: Diode Measurement
7.4.3 On-off Test
To perform an On-off test, do the following:
1. Press the R key and R appears on the top of the screen.
2. Press the AUTO SET key till the following is shown on the screen.
3. Insert the black lead into the COM banana jack input and the red lead into the V/Ω banana
jack input.
4. Connect the red and black leads to the test point. If the resistance value of the tested point is
less than 50Ω, you will hear beep sound from the test tool.
Now, you can see a screen that looks like the following figure 23.
figure 23: On-off Test
28

Owon HDS series Specifications

General

Channels	2
Bandwidth	Up to 100 MHz
Multimeter Functions	Voltage, Current, Resistance, Capacitance
Resistance Measurement Range	400Ω ~ 40MΩ
Power Supply	Lithium Battery
Connectivity	USB
Battery Life	About 6 hours
Weight	Approx. 500 g
Duty Cycle Range	0.1% to 99.9%
Data Storage	Internal memory
Voltage Measurement Range	400mV ~ 1000V
Current Measurement Range	0.1 μA to 10 A
