◄ or OSC ► key to adjust the horizontal position.
11. Press the OSC OPTION key again and return back to step 1.
Term interpretation
z Vertical scale factor: It stands for the voltage amplitude represented by a division in the
vertical direction of the display area, through the adjustment of which you can amplify or
attenuate the signal and thus regulate the signal amplitude into the expected measurement
range.
z Vertical zero position: It is referred to as the grounding datum point, through the adjustment
of which you can regulate the display position of the waveform on the screen.
z Primary time base: It means the time values represented by a division in the horizontal
direction of the display area.
z Trigger horizontal position: It means the time deviation between the actual trigger point and
the screen central line, which will be displayed as 0 at the center point of the screen.
z Trigger level position: It represents the voltage deviation between the actual trigger level and
the zero position of the triggering signal source channel.
6.6 Resetting the Oscilloscope
If you want to reset the Oscilloscope to the factory settings, do the following:
1. Press MENU key and the function menu appears on the right side of the screen
2. Press the MENU ▲ or MENU ▼ key to select function setting and three options are visible
at the bottom of the screen.
3. Press F1 key to select the factory settings. The oscilloscope is set to be the factory settings.
See the following figure 11:

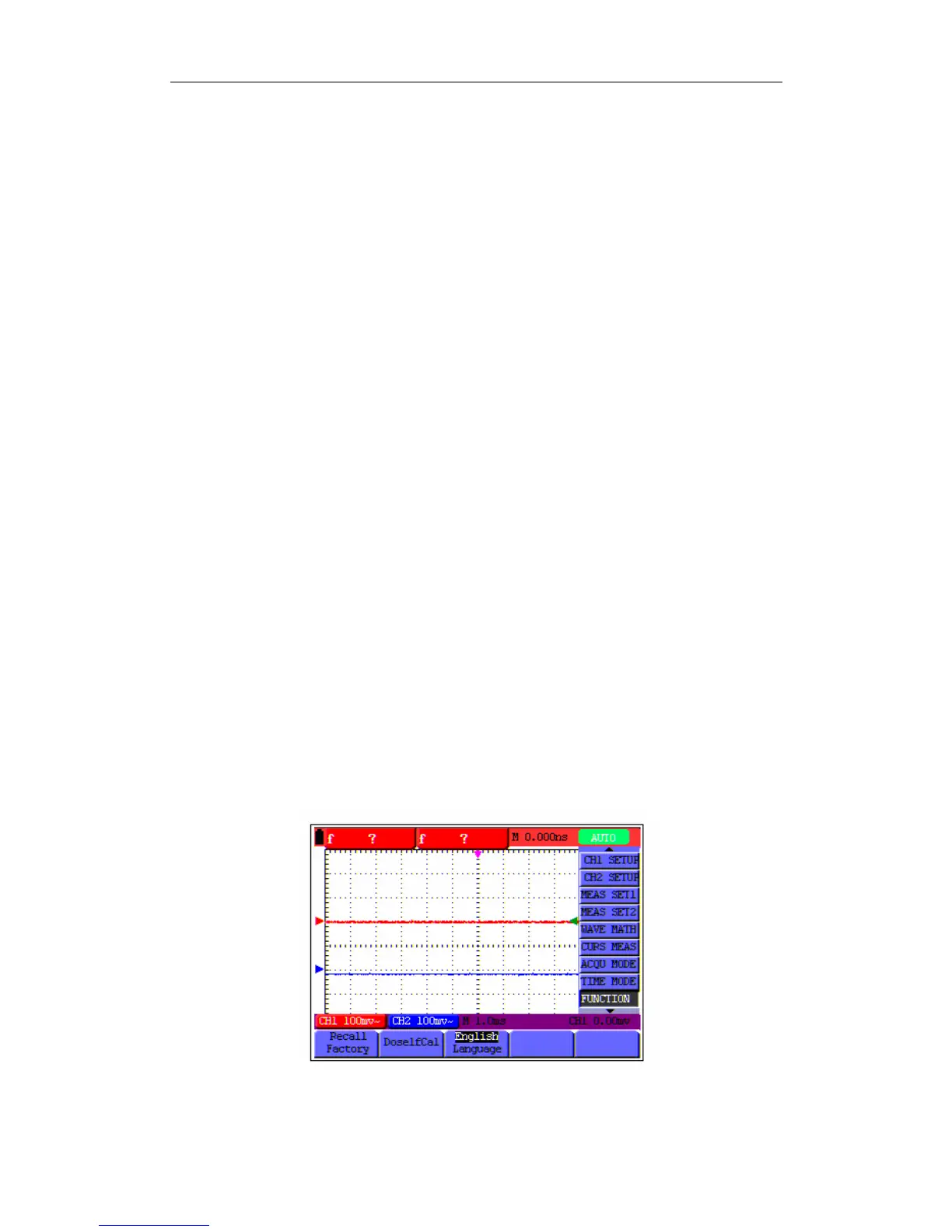

figure 11: Reset the Oscilloscope
