Owon HDS series User Manual

OWON HDS Series Handheld DSO & DMM 6-Using the Scope
6.Using the Scope
6.1 About this Chapter
This chapter provides a step-by-step introduction to the scope functions. The introduction does not
cover all of the capabilities of the scope functions but gives basic examples to show how to use the
menus and perform basic operations.
6.2 Power-Up the Oscilloscope
Connect oscilloscope to AC power via a power adapter as shown in Figure 1. (The oscilloscope
may still work with built-in Li-ion battery even without AC power supply)
Turn the oscilloscope on by pressing down the power on/off key POW.
The instrument then performs self checking after power on. A greeting window and a sentence
“press any key to continue……” will display on the screen when the system finishes self
checking.
The users can press any key to enter the measuring function.
The oscilloscope is powered up in its last setup configuration.

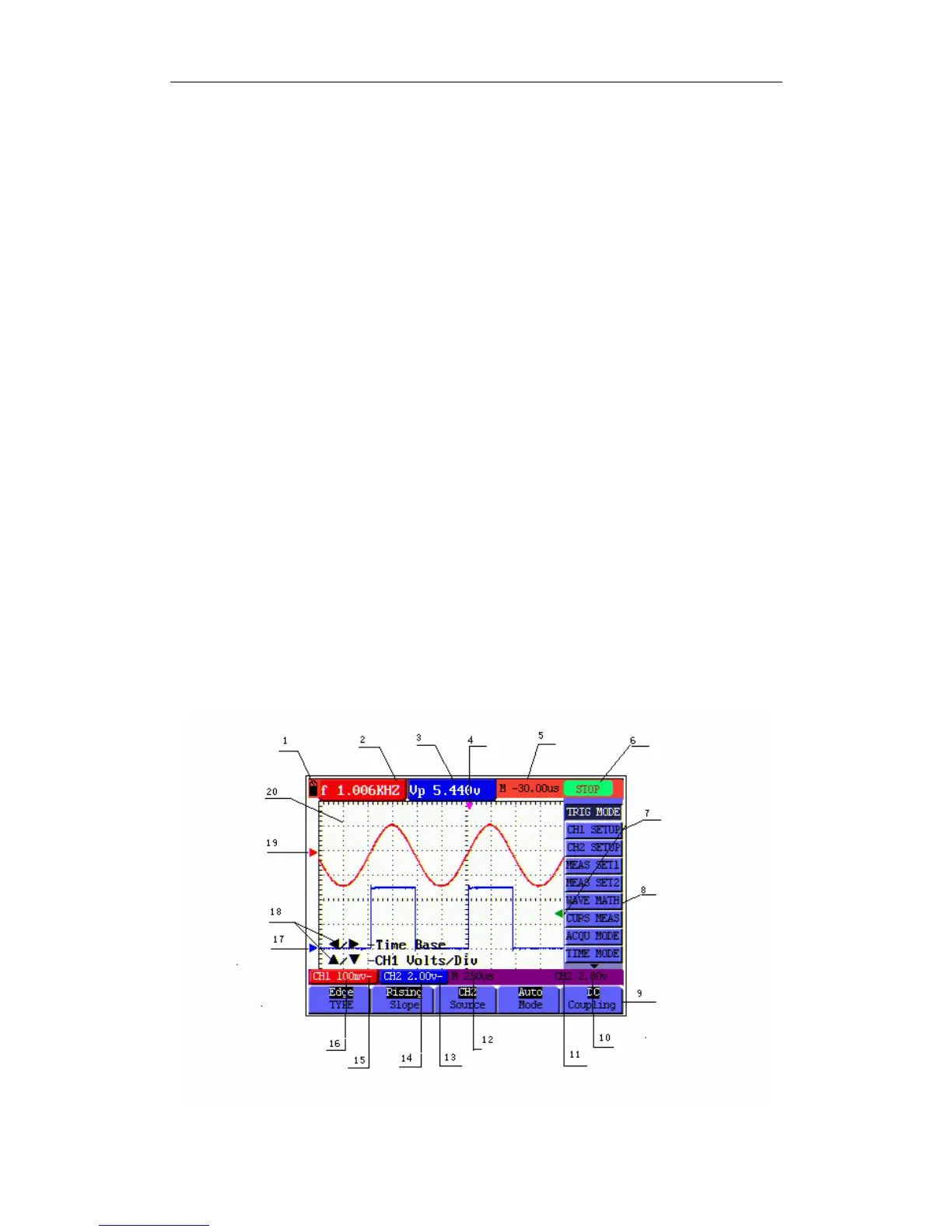

6.3 Oscilloscope Operation Window
See the following figure 4:
10

Owon HDS series Specifications

General

Channels	2
Bandwidth	Up to 100 MHz
Multimeter Functions	Voltage, Current, Resistance, Capacitance
Resistance Measurement Range	400Ω ~ 40MΩ
Power Supply	Lithium Battery
Connectivity	USB
Battery Life	About 6 hours
Weight	Approx. 500 g
Duty Cycle Range	0.1% to 99.9%
Data Storage	Internal memory
Voltage Measurement Range	400mV ~ 1000V
Current Measurement Range	0.1 μA to 10 A
