Owon HDS series User Manual

OWON HDS Series Handheld DSO & DMM 1-Declaration of Conformity
1.2 Package Contents
See the picture below. This picture is only for your reference. If any discrepancy
found between certain picture and product, please look the actual product.
# Description Standard Optional
1 Oscilloscope and Battery ●
2 Battery Charger ●
3 Oscilloscope Probe x 2 (grey) ●
4 Multimeter test lead x 2 (black and red) ●
5 Extension module for big current measurement ●
6 Module for small capacitance measurement ●
7 Probe adjustment tools ●
8
USB communication cable or RS-232C
communication cable
●
9 User Manual ●
10 CD-ROM (software) ●
11 Hard carrying case ●
12 Soft carrying case ●
13
5v output cable with a frequency of 1 kHz as the
test-signal(Only for the HDS1022M .)
●

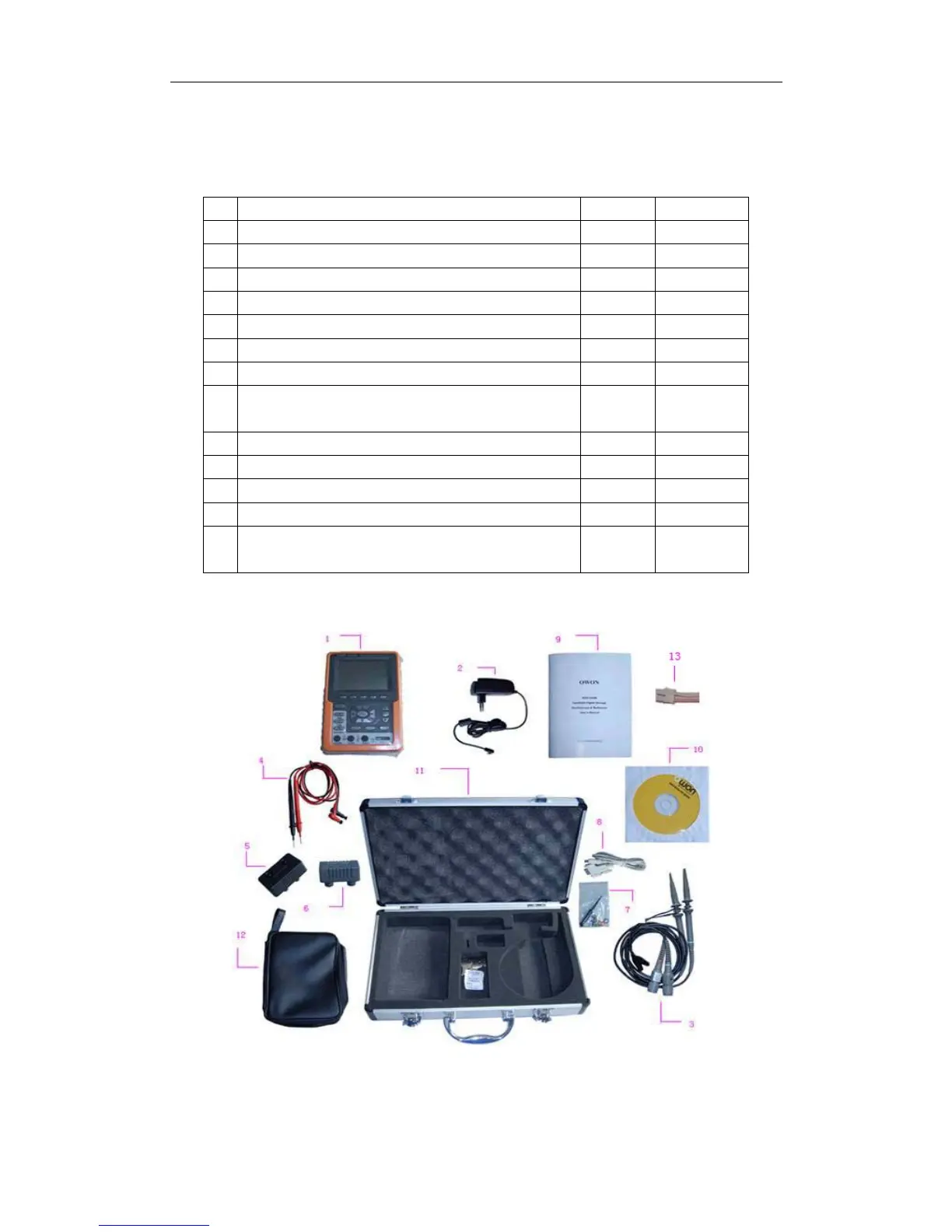

figure 1: Digital Oscilloscope Parts
1

Owon HDS series Specifications

General

Channels	2
Bandwidth	Up to 100 MHz
Multimeter Functions	Voltage, Current, Resistance, Capacitance
Resistance Measurement Range	400Ω ~ 40MΩ
Power Supply	Lithium Battery
Connectivity	USB
Battery Life	About 6 hours
Weight	Approx. 500 g
Duty Cycle Range	0.1% to 99.9%
Data Storage	Internal memory
Voltage Measurement Range	400mV ~ 1000V
Current Measurement Range	0.1 μA to 10 A
