OWON HDS Series Handheld DSO & DMM 8-Advanced Function of Oscilloscope
Now, you can see a screen that looks like the following figure 51.

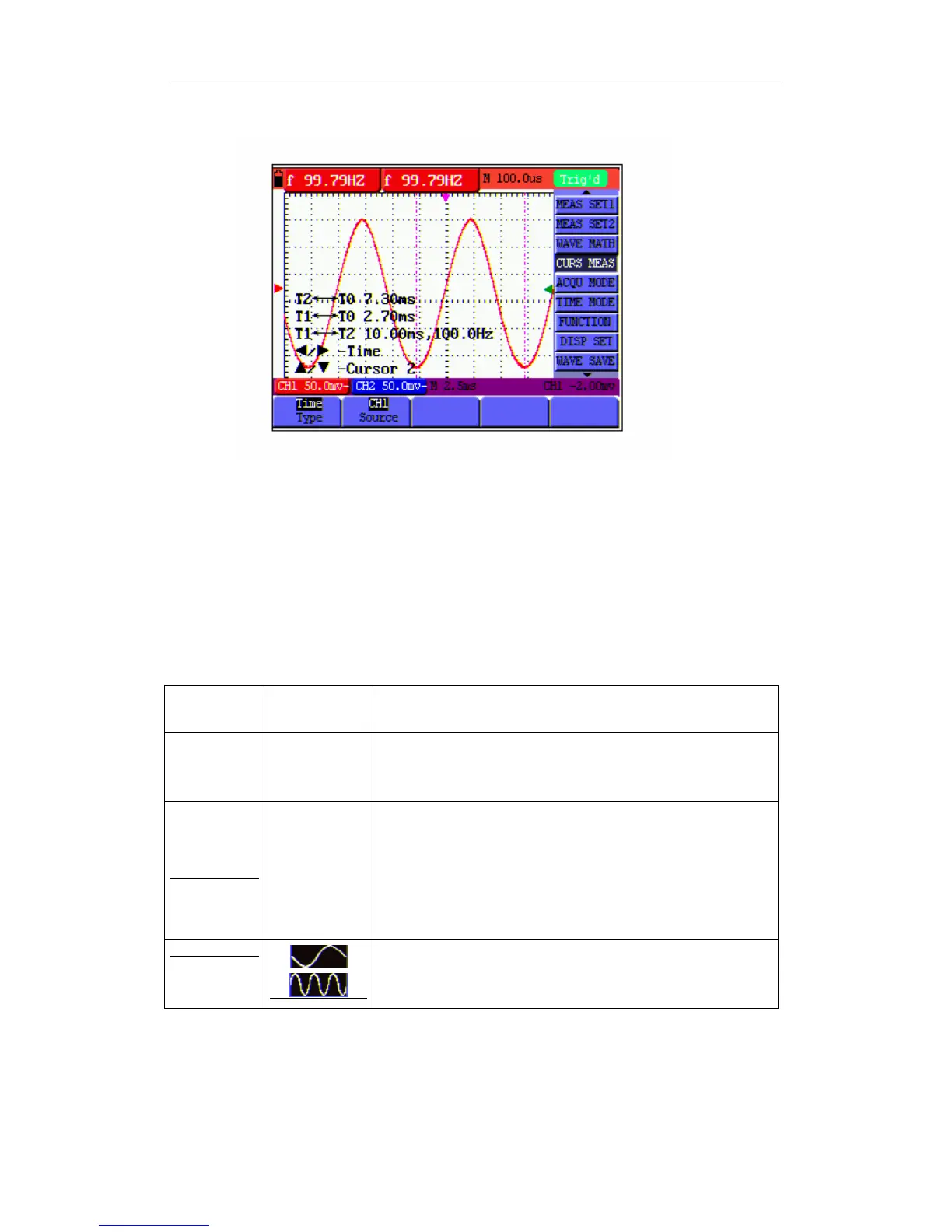

figure 51: Use the Cursor for a Time Measurement
8.12 Autoscale
The function is applied to follow-up signals automatically even if the signals change at any time.
Autoscale enables the instrument to set up trigger mode, voltage division and time scale
automatically according to the type, amplitude and frequency of the signals.
The menu is as follows:
Function
menus
Settings Description
Autoscale
OFF
ON
Turn off Autoscale
Turn on Autoscale
Mode
Vertical
Horizontal
HORI—VERT
Only adjust vertical scale according to input signal.
Only adjust horizontal scale according to input signal.
Adjust both vertical and horizontal scales according to
input signal.
Display only one or two cycles in waveform.
Display Multi-cycles in waveform.
If you want to measure voltage of Channel 1, you can do as the follows:
1. Press MENU, the function menu will appear on the right of the screen.
2. Press MENU ▲ or MENU ▼ and choose Autoscale, three options will show at the
５３

Owon HDS series Specifications

General

Channels	2
Bandwidth	Up to 100 MHz
Multimeter Functions	Voltage, Current, Resistance, Capacitance
Resistance Measurement Range	400Ω ~ 40MΩ
Power Supply	Lithium Battery
Connectivity	USB
Battery Life	About 6 hours
Weight	Approx. 500 g
Duty Cycle Range	0.1% to 99.9%
Data Storage	Internal memory
Voltage Measurement Range	400mV ~ 1000V
Current Measurement Range	0.1 μA to 10 A
