OWON HDS Series Handheld DSO & DMM 8-Advanced Function of Oscilloscope
bottom of the screen.
3. Press F1 and choose ON.
4. Press F2 and choose Hori- Vert.
5. Press F3 and
displays on the screen as figure 52:

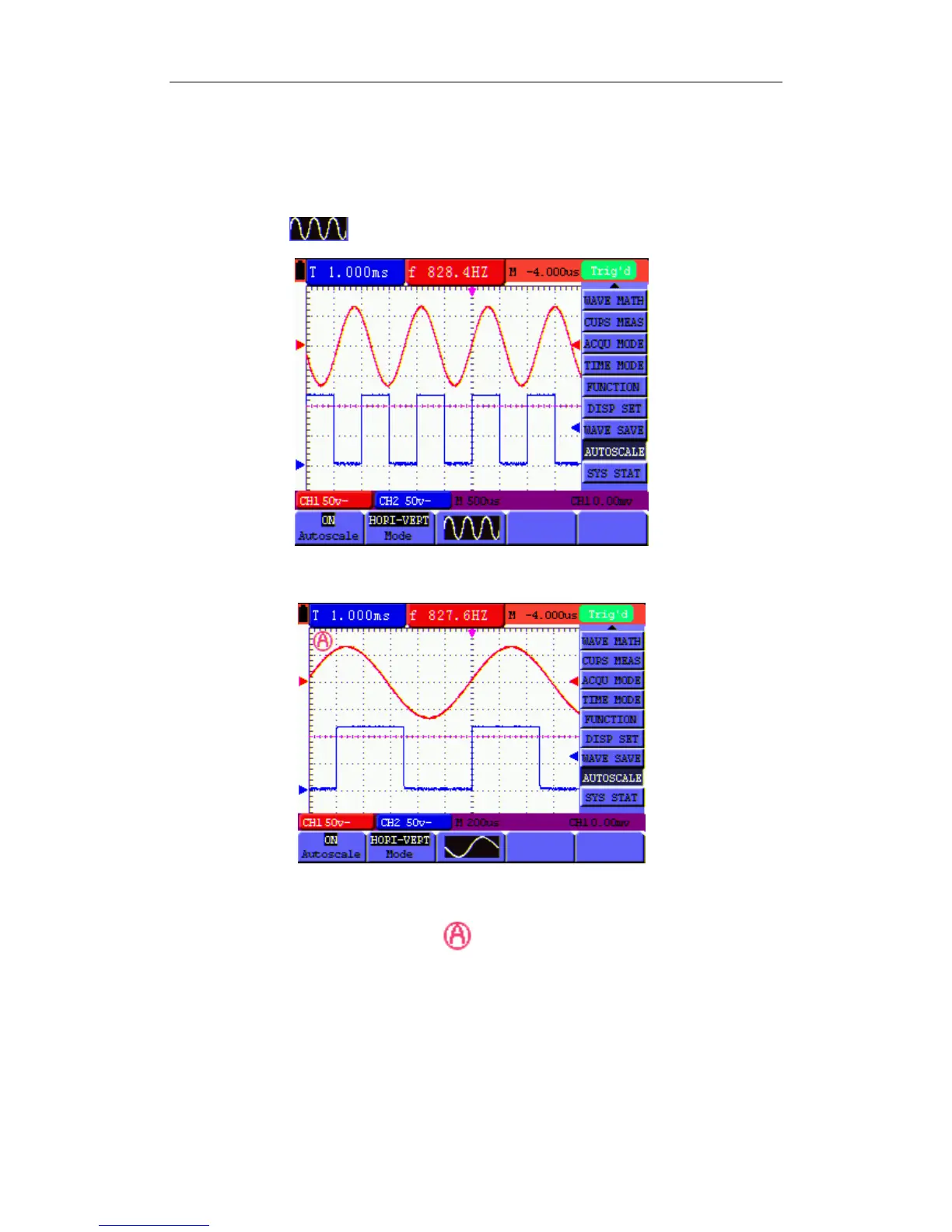

figure 52: Autoscale Horizontal- Vertical multi-period waveforms
figure 53: Autoscale Horizontal- Vertical mono-period waveform
Note:
1. Entering into Autoscale function and
flicker will be on the top left corner. (flicker
every 0.5 second)
2. At the mode of Autoscale, the oscilloscope can self-estimate “Trigger mode” (Edge, Video,
and Alternate) and “Type” (Edge, Video). If now, you press “Trigger mode” or “Type”, the
forbidden information will display on the screen.
3. At the mode of XY and STOP status, pressing AUTO SET to enter into Autoscale, DSO
５４

Owon HDS series Specifications

General

Channels	2
Bandwidth	Up to 100 MHz
Multimeter Functions	Voltage, Current, Resistance, Capacitance
Resistance Measurement Range	400Ω ~ 40MΩ
Power Supply	Lithium Battery
Connectivity	USB
Battery Life	About 6 hours
Weight	Approx. 500 g
Duty Cycle Range	0.1% to 99.9%
Data Storage	Internal memory
Voltage Measurement Range	400mV ~ 1000V
Current Measurement Range	0.1 μA to 10 A
