Owon HDS series User Manual

OWON HDS Series Handheld DSO & DMM 8-Advanced Function of Oscilloscope

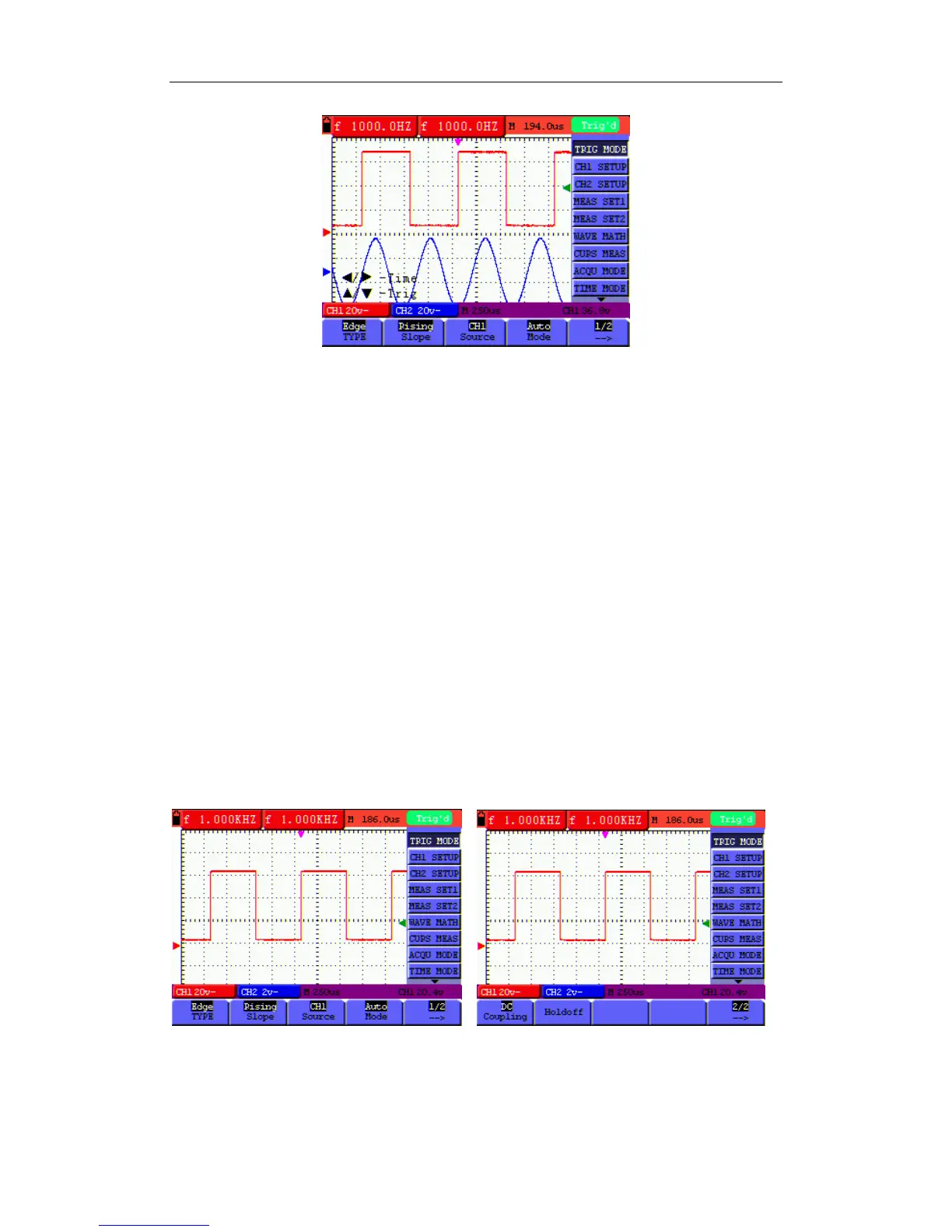

figure 38: Edge Trigger
8.5 Triggering Control
There are two triggering modes including Edge triggering and Video triggering. Each trigger
mode is set by different function menu.
Edge triggering: It occurs when the trigger input passes through a given level along the specified
direction.
Video triggering: Perform video field trigger or line trigger on the standard video signals.
The following describes the Edge triggering and Video triggering menus respectively.
8.5.1 Edge Triggering
The Edge triggering is a mode by which trigger occurs at the triggering threshold value of the
input signal edge. With the Edge triggering selected, the trigger happens on the rise or fall edge
of the input signal, shown as the following figure39，figure40.
figure 39：Edge Trigger（Page1） figure 40：Edge Trigger（Page 2）
The Edge triggering menu is described in the following table.
４１

Owon HDS series Specifications

General

Channels	2
Bandwidth	Up to 100 MHz
Multimeter Functions	Voltage, Current, Resistance, Capacitance
Resistance Measurement Range	400Ω ~ 40MΩ
Power Supply	Lithium Battery
Connectivity	USB
Battery Life	About 6 hours
Weight	Approx. 500 g
Duty Cycle Range	0.1% to 99.9%
Data Storage	Internal memory
Voltage Measurement Range	400mV ~ 1000V
Current Measurement Range	0.1 μA to 10 A
