Owon HDS series User Manual

OWON HDS Series Handheld DSO & DMM 6-Using the Scope

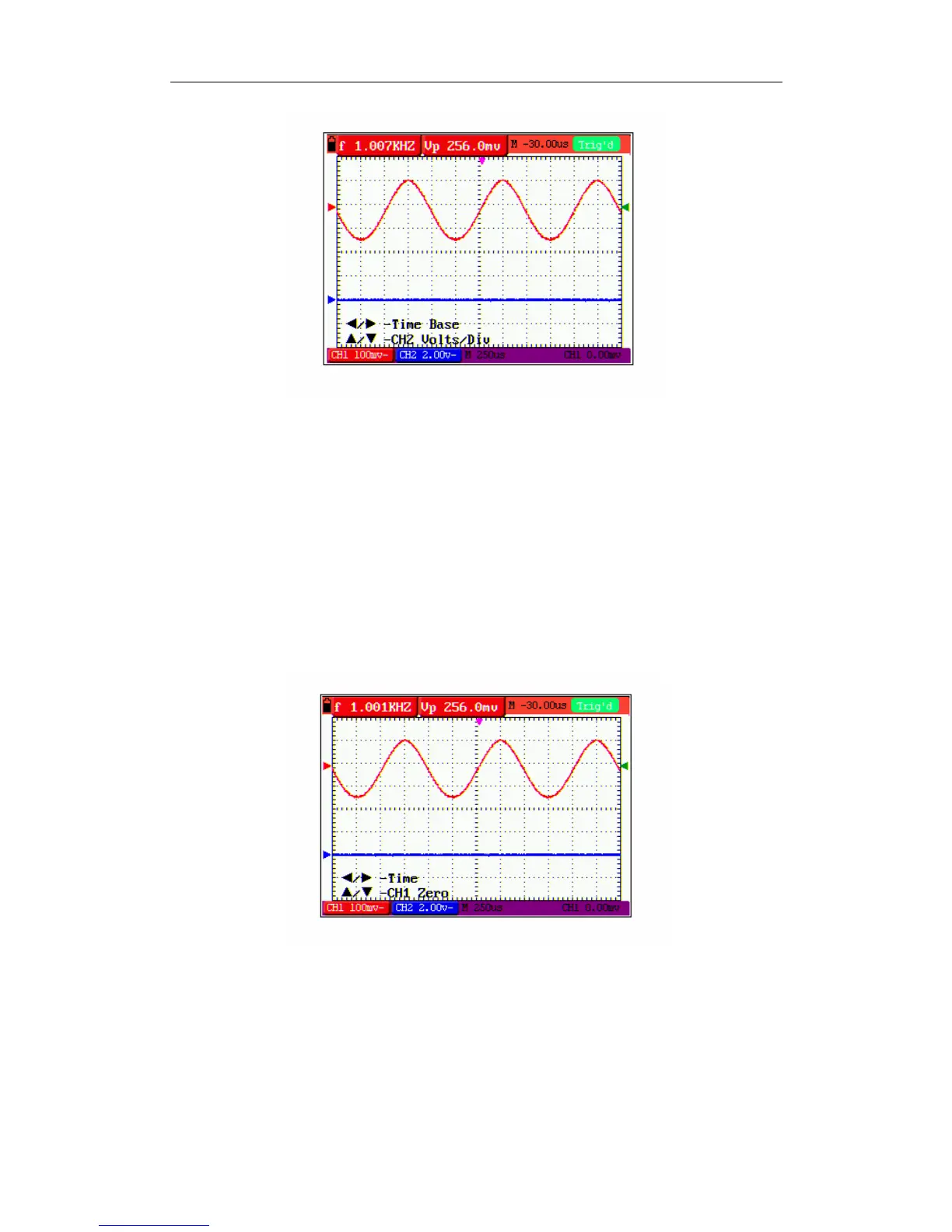

figure 7: Voltage Unit Scale of Channel 2
4. Press the OSC ▲ or OSC ▼ key to adjust the vertical scale of Channel 2 and press the
OSC◄ or OSC ► key to adjust the horizontal time scale.
5. Press the OSC OPTION key one more time, and the following display is visible at the
bottom left side of the screen, shown as the following figure.
◄/► – Time
▲/▼– CH1 Zero
See the following figure 8:
figure 8: Zero Point Position of Channel 1
6. Press OSC ▲ or OSC ▼ key to adjust the zero position of Channel 1 in vertical direction
and press OSC ◄ or OSC ► key to adjust the horizontal position.
7. Again, press OSC OPTION key and the following appears at the bottom left side of the
screen, shown as the following figure.
14

Owon HDS series Specifications

General

Channels	2
Bandwidth	Up to 100 MHz
Multimeter Functions	Voltage, Current, Resistance, Capacitance
Resistance Measurement Range	400Ω ~ 40MΩ
Power Supply	Lithium Battery
Connectivity	USB
Battery Life	About 6 hours
Weight	Approx. 500 g
Duty Cycle Range	0.1% to 99.9%
Data Storage	Internal memory
Voltage Measurement Range	400mV ~ 1000V
Current Measurement Range	0.1 μA to 10 A
