OWON HDS Series Handheld DSO & DMM 6-Using the Scope
◄/► Time Base
▲/▼CHM Volts/Div
Press the OSC ▲ or OSC ▼ key to adjust the displayed amplitude of the calculated
waveform M.

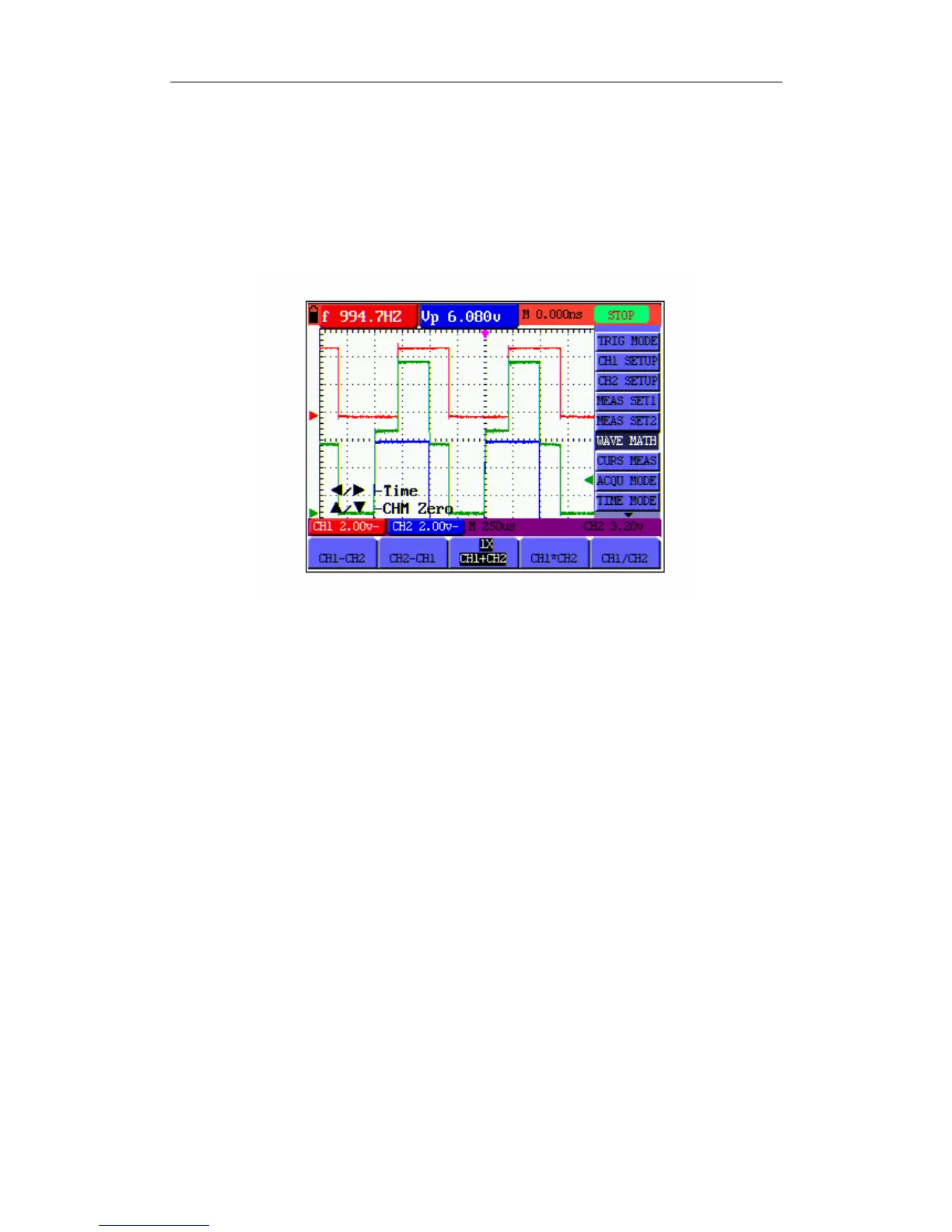

Now, you can see a screen that looks like the following figure 19.
figure 19: Waveform Mathematics
24
