OWON HDS Series Handheld DSO & DMM 8-Advanced Function of Oscilloscope
CH2
Measure the
+Duty of CH2
-Duty
CH1
CH2
Measure the
-Duty of CH1
Measure the
-Duty of CH2
DelayA B
CH1
CH2
Measure the
DelayA B of CH1
Measure the
DelayA B of CH2
DelayA B
CH1
CH2
Measure the
DelayA B of CH1
Measure the DelayA B of CH2
To measure the frequency of CH1 with Measurement 1 and the peak-to-peak of CH2 with
Measurement 2, do the following:
1. Press the MENU key and the function menu is shown at the right of the screen.
2. Press the MENU ▲ or MENU ▼ key to select Measurement 1. Five options appear at the
bottom of the screen.
3. Press the F1 key to select the frequency measurement as CH1. The measurement window 1
on the screen turns into one red in color and shows the frequency of CH1.
4. Press the MENU ▲ or MENU ▼ key to select Measurement 2. Five options appear at the
bottom of the screen.
5. Press the F4 key to jump to the peak-to-peak measurement as CH2. The measurement
window on the screen turns into one blue in color and shows the peak-to-peak value of
CH2.
Now, you can see a screen that looks like the following figure 49.

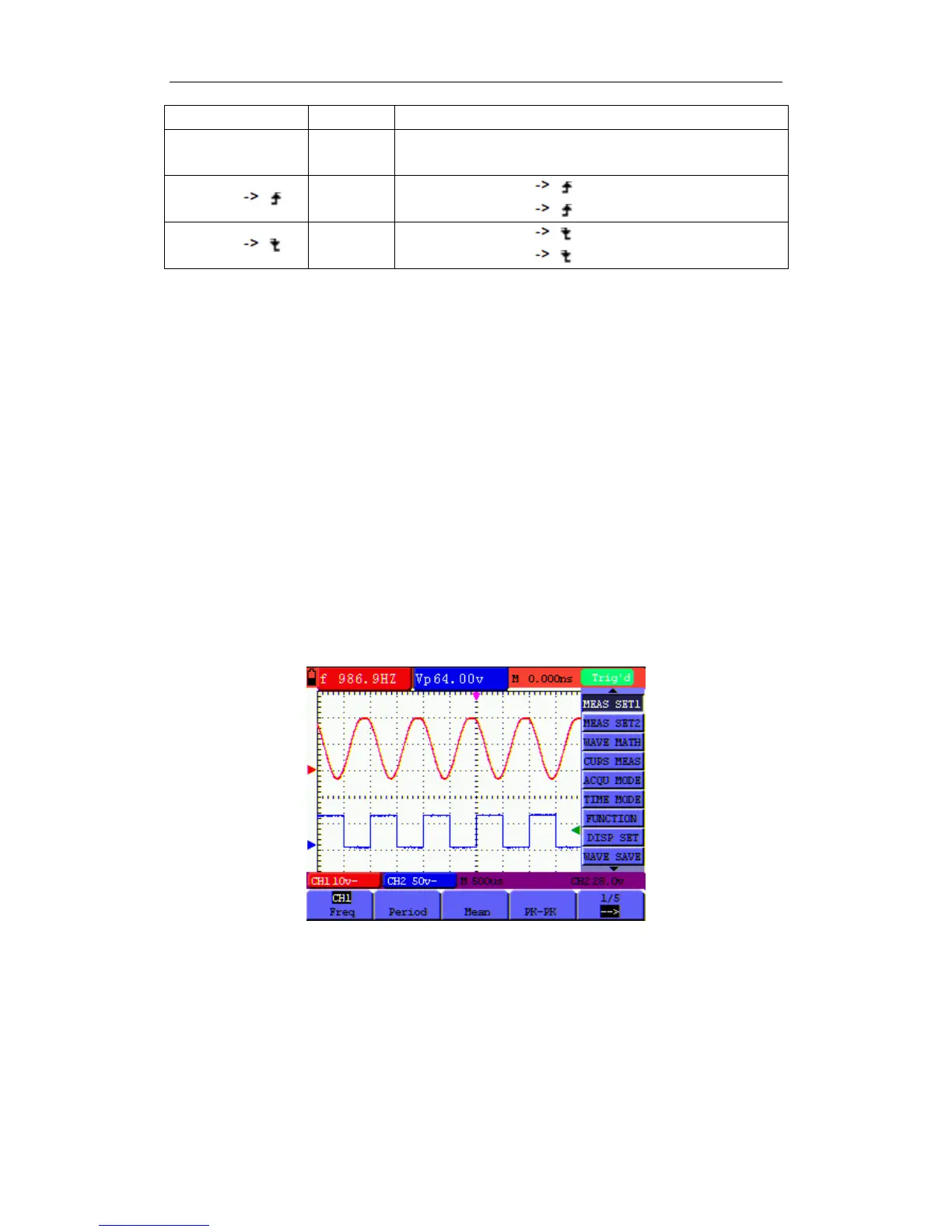

figure 49: Automatic Measurements
Term interpretation
Vpp: Peak-to-Peak Voltage.
Vmax: The maximum amplitude. The most positive peak voltage measured over the
entire waveform.
Vmin: The minimum amplitude. The most negative peak voltage measured over the
entire waveform.
５０

Owon HDS series Specifications

General

Channels	2
Bandwidth	Up to 100 MHz
Multimeter Functions	Voltage, Current, Resistance, Capacitance
Resistance Measurement Range	400Ω ~ 40MΩ
Power Supply	Lithium Battery
Connectivity	USB
Battery Life	About 6 hours
Weight	Approx. 500 g
Duty Cycle Range	0.1% to 99.9%
Data Storage	Internal memory
Voltage Measurement Range	400mV ~ 1000V
Current Measurement Range	0.1 μA to 10 A
