Panasonic AAD03011 - Setting and Changing Functions; Setting functions when operation is stopped.; Setting Function During Operation

33

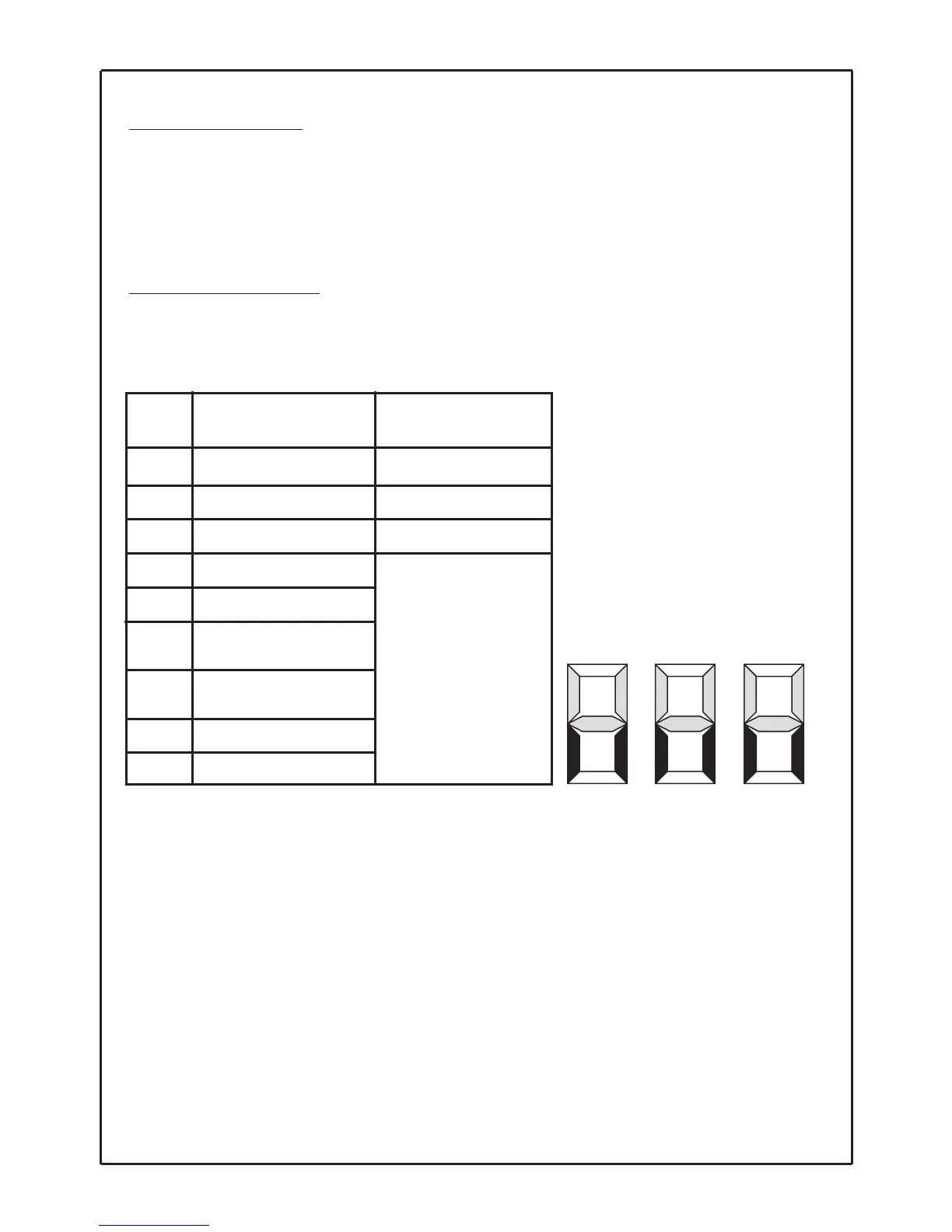

LED
position
㽲
OPEN signal
Input signal
n16
㽲㽳㽴㽵㽶㽷
㽸㽹㽺
㽳
㽴
㽵
㽶
㽷
㽸
㽹
㽺
CLOSE signal
OPEN arrival signal
CLOSE arrival signal
Safety sensor signal
OPEN speed change
signal
CLOSE speed change
signal
Encoder phase A signal
Encoder phase B signal
Relay 1 output signal
Output signal
n17
Relay 2 output signal
Relay 3 output signal
n16: Input signal
Note) The input signal monitor lights when the input terminal is closed and
lights out when the input terminal is opened. It is independent of the
input signal logic setting.
Lights: Closed between the input terminal and the common terminal.
Lights out: Opened between the input terminal and the common terminal.
n17: Output signal
Lights: When the relay coil is energized.
Lights out: When the relay coil is not energized.
