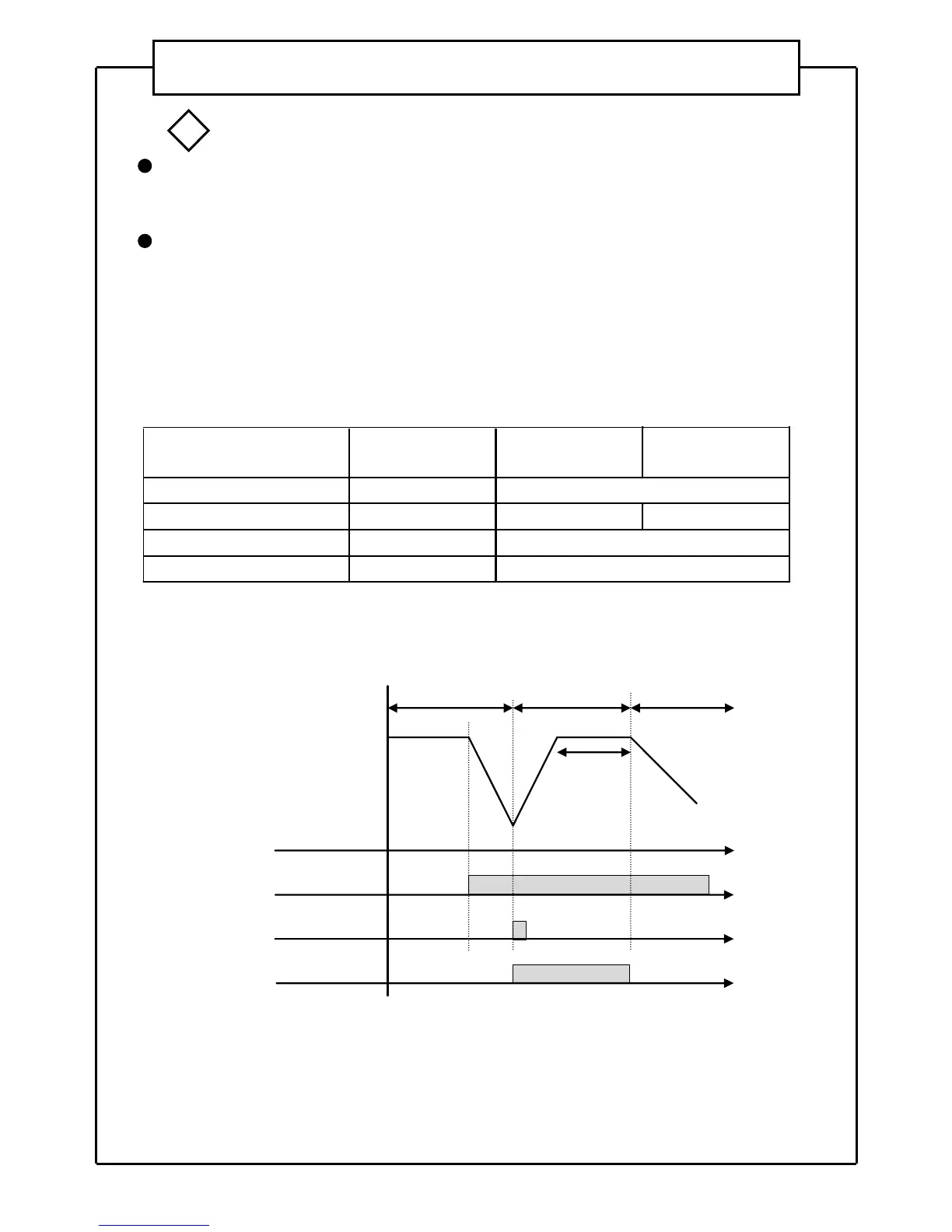

Supplementary Explanation of Obstacle Detection Function of The Door
䃂 Carry out the obstacle detection of the door according to the following four
major reasons for detection.
Safety sensor must be input in the main controller of the elevator and in the
terminal of the main controller, operate the obstacle detection of the door.
Obstacle detection function of the inverter does not operate in CLOSE
arrival area.
Dual security measures must be taken.
Failure to do so could lead to injury.
Apply the obstacle detection function of the door after ensuring the security
and function operation of the elevator.
Failure to do so could lead to injury.
Major reason
for detection
Related
parameter
Door control
encoder mode
Door control
SW mode
Current Can be detected
Slip Can be detected
Cannot be detected
Time P69 Can be detected
Safety sensor P44 Can be detected
ON arrival
CLOSE arrival
CLOSE signal
Door position
Major reason
for detection
obstacle
detection signal
Fault ON
operation
OPEN arrival hold
time (P71)
Normal OFF
operation
Normal OFF
operation
Fault ON operation
produced by
sandwich
1. Start the fault ON operation according to obstacle detection.
2. Start the subtraction operation of OPEN arrival hold time (parameter P71) timer according
to OPEN arrival signal.
3. When the time of OPEN arrival hold time timer is up, fault ON operation produced by
sandwich is eliminated.
4. After eliminating the fault operation produced by sandwich, CLOSE operation is started.
(If the four major reasons for detection aren't eliminated completely, obstacle detection
signal will not be turned OFF.)
䃂
Operation explanation of
obstacle detection
䋪Parameter P68 ( start confirmation time ) is the function to be used to prevent the
fault operation produced by obstacle detection.
77
!
Caution
P59 to 63
P64 to 68
