4

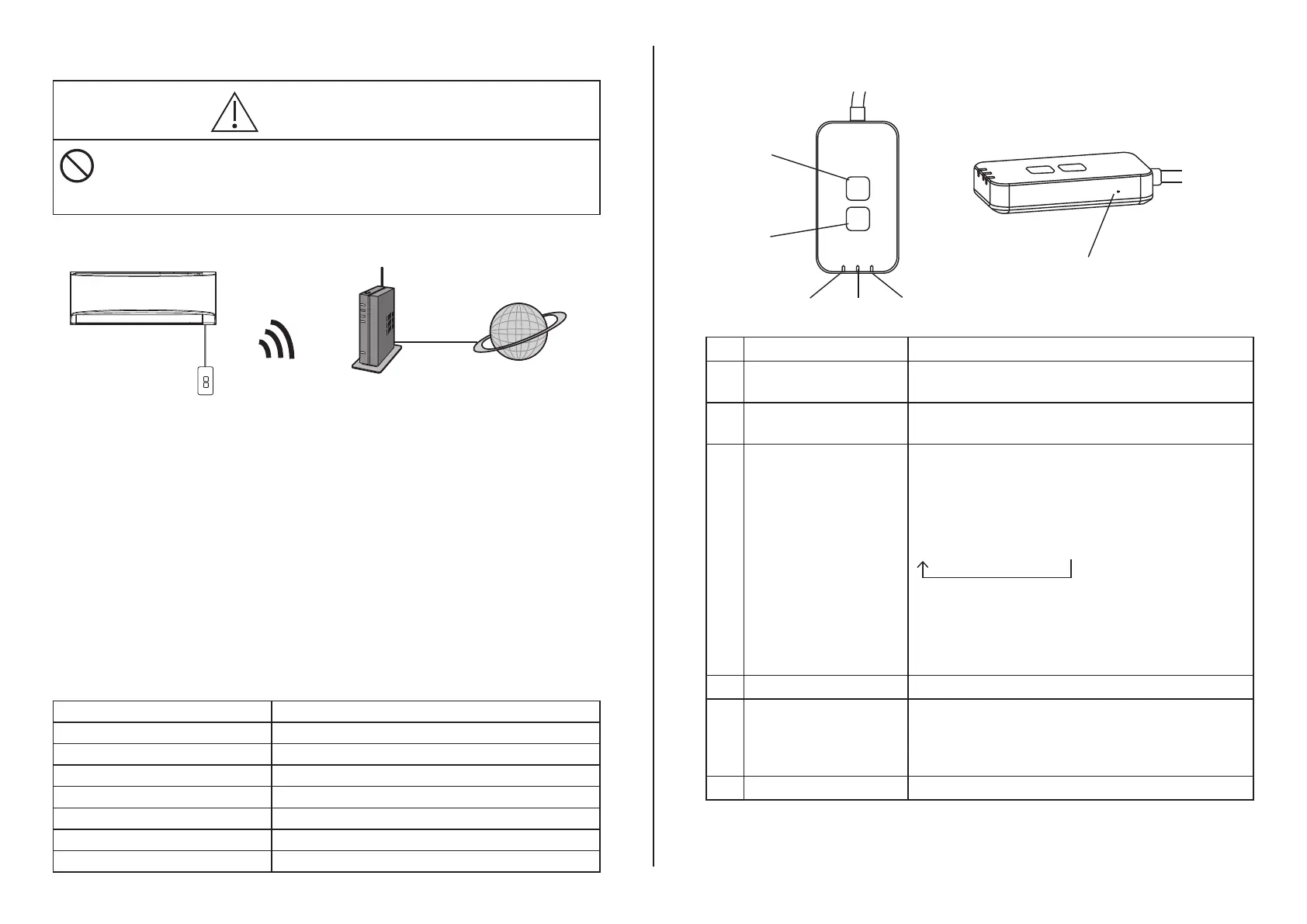

System Overview
CAUTION
Do not stand on an unstable surface when operating
or checking the adaptor.
- This can cause injury from falls.
Indoor unit
Network adaptor
CZ-TACG1
Wireless LAN
Router
Internet
Before Installing the Adaptor
• Requires a Smartphone that is iOS/Android compatible;
• The Network adaptor (adaptor) is designed specifi cally as a terminal for the
“Panasonic Comfort Cloud”;
• Do not attach the adaptor to metal as wireless performance will be adversely
affected;
• The adaptor recommended to be installed outside of the indoor unit. (It needs to
be accessed when connecting it or when there is a problem.);
• The Wireless LAN network coverage must include the air conditioner installation
location;
• Do connect the Wireless LAN to a compatible Panasonic Air Conditioner with a
connectivity interface port.
Specifi cation
Input Voltage DC 12V (From air conditioner indoor unit)
Power consumption Max: 660 mW
Size 66 mm (H) x 36 mm (W) x 12 mm (D)
Weight Approx. 85g
Interface 1x Wireless LAN
Wireless LAN standard IEEE 802.11 b/g/n
Frequency range 2.4 GHz band
Encryption WPA2-PSK (TKIP/AES)
Parts Identifi cation
5
4
3
2
1
6
No Item Description
1 Power LED Indicates that the adaptor is being supplied with
power.
2 Link LED Indicate the communication status of adaptor to
the server.
3 Status LED Indicate the communication status of adaptor to
the air-conditional.
Green: status without weekly timer
Orange: status with weekly timer
Red: Abnormality
Red Orange Green : Auto updating
adaptor fi rmware
During signal strength checking:-
Strong:
Medium:
Weak:
No signal:
4 Setup Switch* Connection setup mode switching
5 Check Switch* Signal strength checking (press and hold for 5
seconds then release)
Disable LEDs display (press and hold for 10
seconds then release)
6 Reset* Soft reset
* The device factory reset can be done by press and hold CHECK and SETUP
button for 10 seconds. After release the CHECK and SETUP button, press the
reset button.
