Panasonic KX-TDA100D

Light
Pattern
Line Status Button
Trunk Status
Intercom
Line Status
Incoming
Call
Distribution
Group Line
Status
S-CO G-CO L-CO INTERCOM ICD Group
Rapid red
flashing
Incoming call to the incoming call distribution
group in Ring distribution method
—
For information on the light patterns of PDN and SDN buttons, refer to 1.7.1 Primary Directory Number
(PDN)/Secondary Directory Number (SDN) Extension.

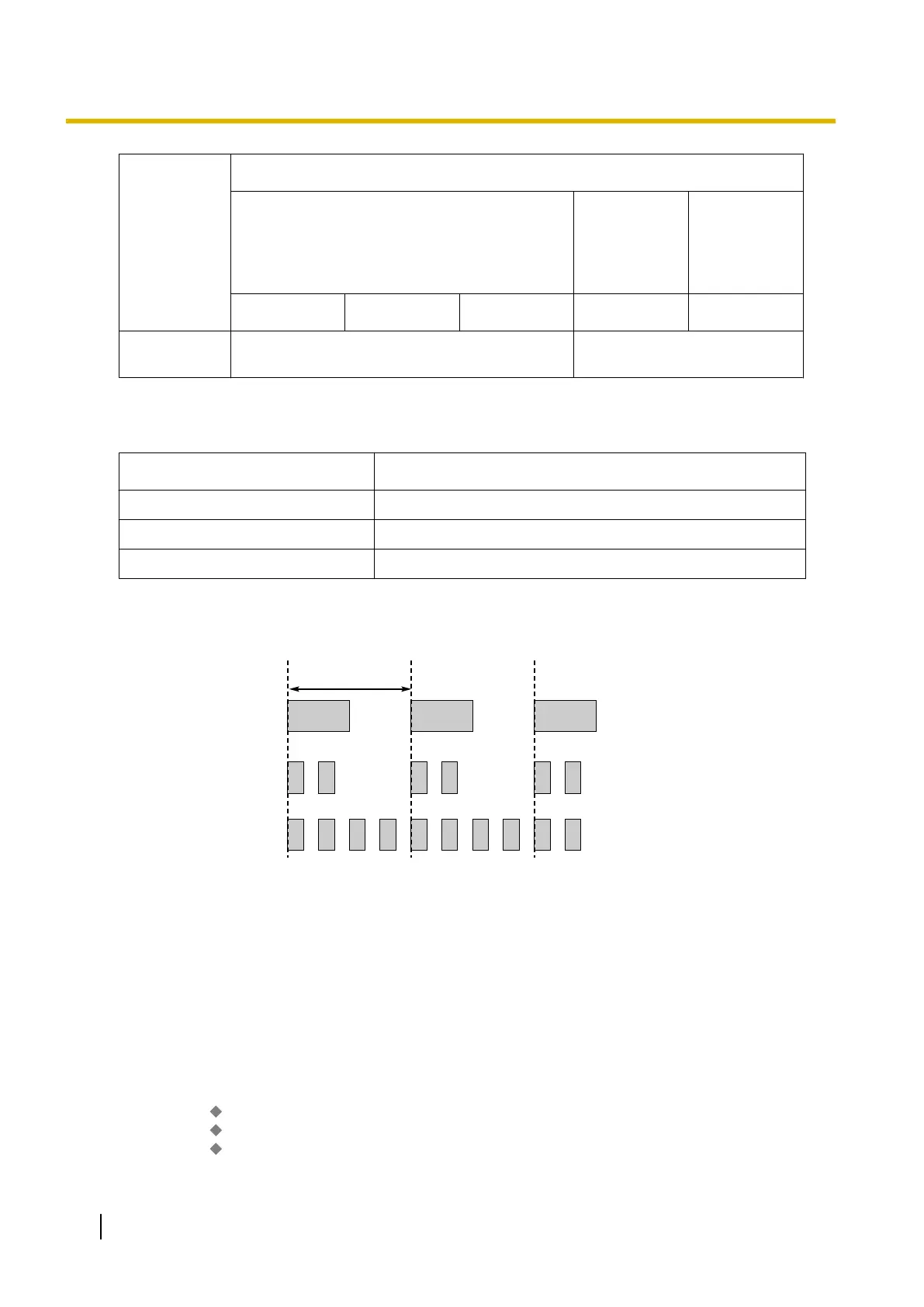

3. Light Pattern of the Corresponding Extension Status Button
Light Pattern
Corresponding Extension Status Button (DSS)
Off Idle
Red on Busy/Incoming call
*1
/DND for trunk calls
Rapid red flashing Incoming call
*2
*1
Only when Call Pickup by a DSS button is disabled.
*2
Only when Call Pickup by a DSS button is enabled.
4. Flashing Light Patterns
Slow Flashing
Moderate Flashing
Rapid Flashing
1 s
Conditions
• The incoming call shows on the buttons in the following priority:
ICD Group®S-CO®G-CO®L-CO®PDN®INTERCOM
• The light pattern of a DSS button for incoming call can be set to "Off" through system programming. In this
case, the DSS button light will not indicate the status of the corresponding extension.
PC Programming Manual References
4.17 [2-9] System Options
→Option 1— PT Fwd / DND—Fwd LED
→Option 1— PT Fwd / DND—DND LED
→Option 4— DSS Key—DSS key mode for Incoming Call
228 Feature Guide
1.20.3 LED Indication
