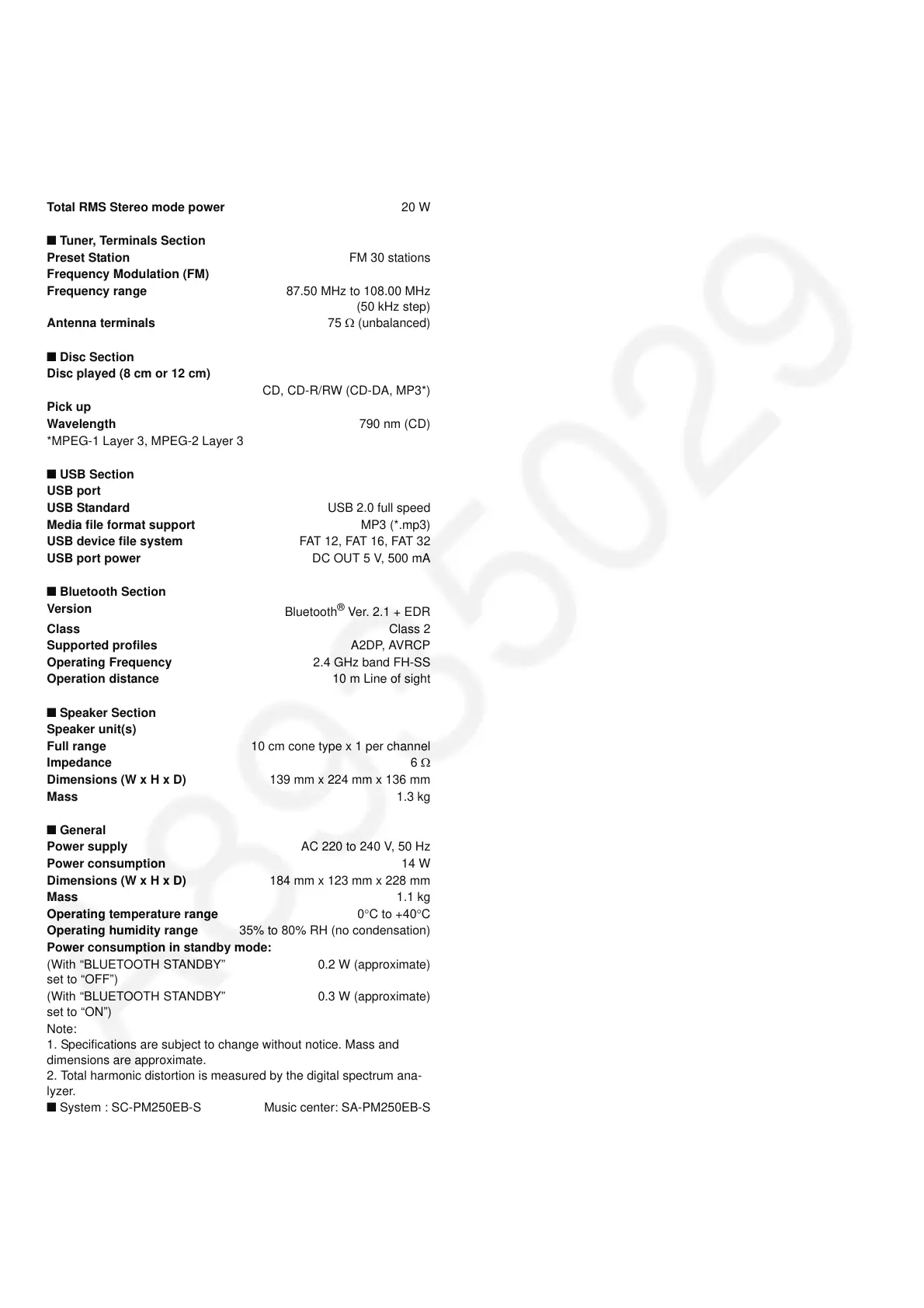

4 Specifications
Q Amplifier Section
RMS Output Power Stereo Mode
Front Ch (both ch driven)
10 W per channel (6 Ω), 1 kHz, 10% THD
Total RMS Stereo mode power 20 W
Q Tuner, Terminals Section
Preset Station FM 30 stations
Frequency Modulation (FM)
Frequency range 87.50 MHz to 108.00 MHz
(50 kHz step)
Antenna terminals 75 Ω (unbalanced)
Q Disc Section
Disc played (8 cm or 12 cm)
CD, CD-R/RW (CD-DA, MP3*)
Pick up
Wavelength 790 nm (CD)
*MPEG-1 Layer 3, MPEG-2 Layer 3
Q USB Section
USB port
USB Standard USB 2.0 full speed
Media file format support MP3 (*.mp3)
USB device file system FAT 12, FAT 16, FAT 32
USB port power DC OUT 5 V, 500 mA
Q Bluetooth Section
Version
Bluetooth
®
Ver. 2.1 + EDR
Class Class 2
Supported profiles A2DP, AVRCP
Operating Frequency 2.4 GHz band FH-SS
Operation distance 10 m Line of sight
Q Speaker Section
Speaker unit(s)
Full range 10 cm cone type x 1 per channel
Impedance 6 Ω
Dimensions (W x H x D) 139 mm x 224 mm x 136 mm
Mass 1.3 kg
Q General
Power supply AC 220 to 240 V, 50 Hz
Power consumption 14 W
Dimensions (W x H x D) 184 mm x 123 mm x 228 mm
Mass 1.1 kg
Operating temperature range 0°C to +40°C
Operating humidity range 35% to 80% RH (no condensation)
Power consumption in standby mode:
(With “BLUETOOTH STANDBY”
set to “OFF”)
0.2 W (approximate)
(With “BLUETOOTH STANDBY”
set to “ON”)
0.3 W (approximate)
Note:
1. Specifications are subject to change without notice. Mass and
dimensions are approximate.
2. Total harmonic distortion is measured by the digital spectrum ana-
lyzer.
Q System : SC-PM250EB-S Music center: SA-PM250EB-S
Speaker: SB-PM02EG1-K
Q System : SC-PM250EC-S Music center: SA-PM250EC-S
Speaker: SB-PM02EG1-K
Q System : SC-PM250EE-S Music center: SA-PM250EE-S
Speaker: SB-PM02EG1-K
Q System : SC-PM250EF-S Music center: SA-PM250EF-S
Speaker: SB-PM02EG1-K
Q System : SC-PM250EG-S Music center: SA-PM250EG-S
Speaker: SB-PM02EG1-K
