Panasonic SA-PM250EB - Checking of Main P.C.B. (Side B)

39

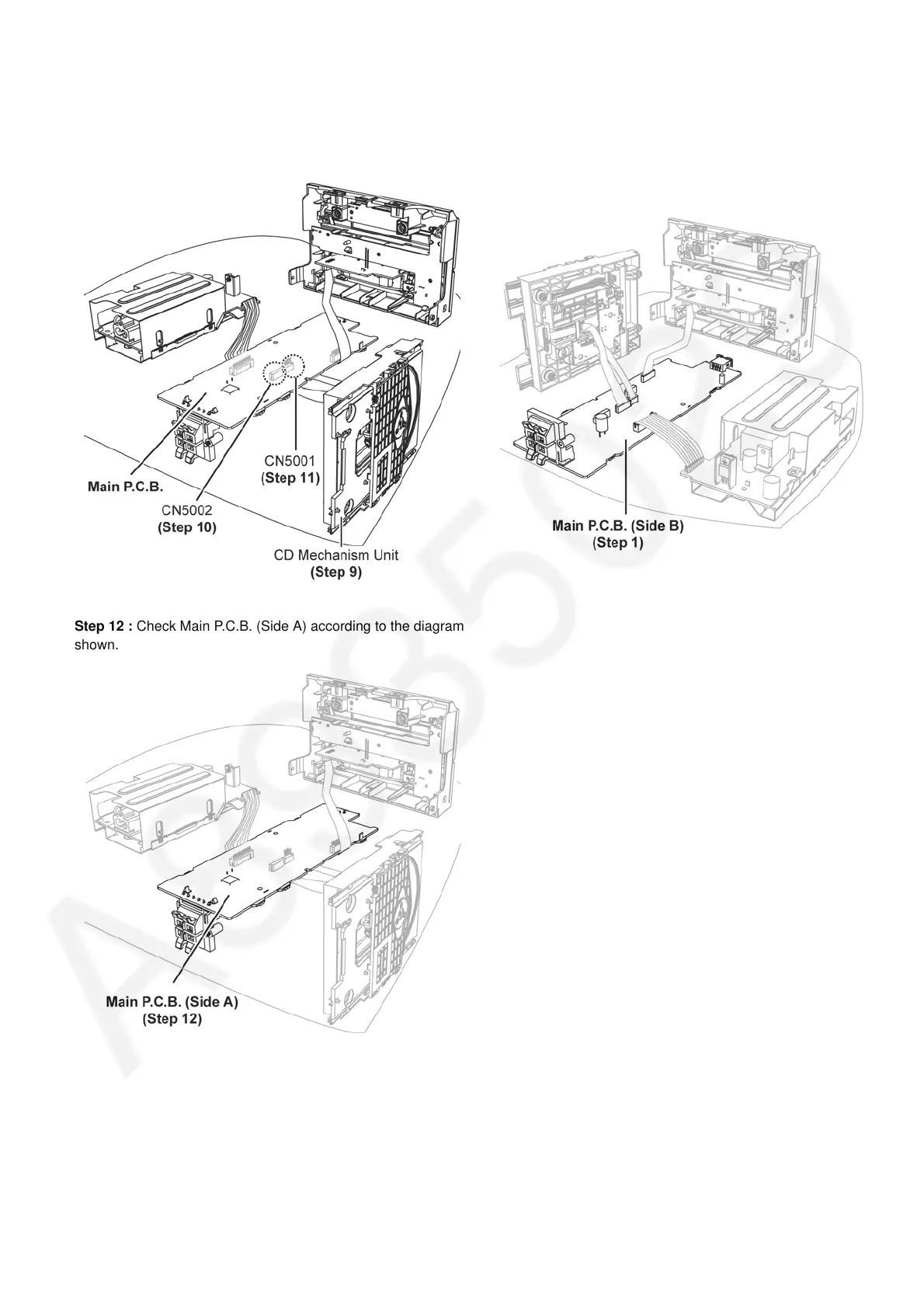

Step 9 : Place CD Mechanism Unit as shown.
Step 10 : Connect 24P FFC at connector (CN5002) on Main
P.C.B..
Step 11 : Connect 7P FFC at connector (CN5001) on Main
P.C.B..
Step 12 : Check Main P.C.B. (Side A) according to the diagram
shown.
10.5. Checking of Main P.C.B. (Side
B)
• Refer to (Step 1) - (Step 11) of item 10.3.
Step 1 : Check Main P.C.B. (Side B) according to the diagram
shown.
