9 Disassembly and Assembly of Traverse Unit
9.1. Disassembling Procedures

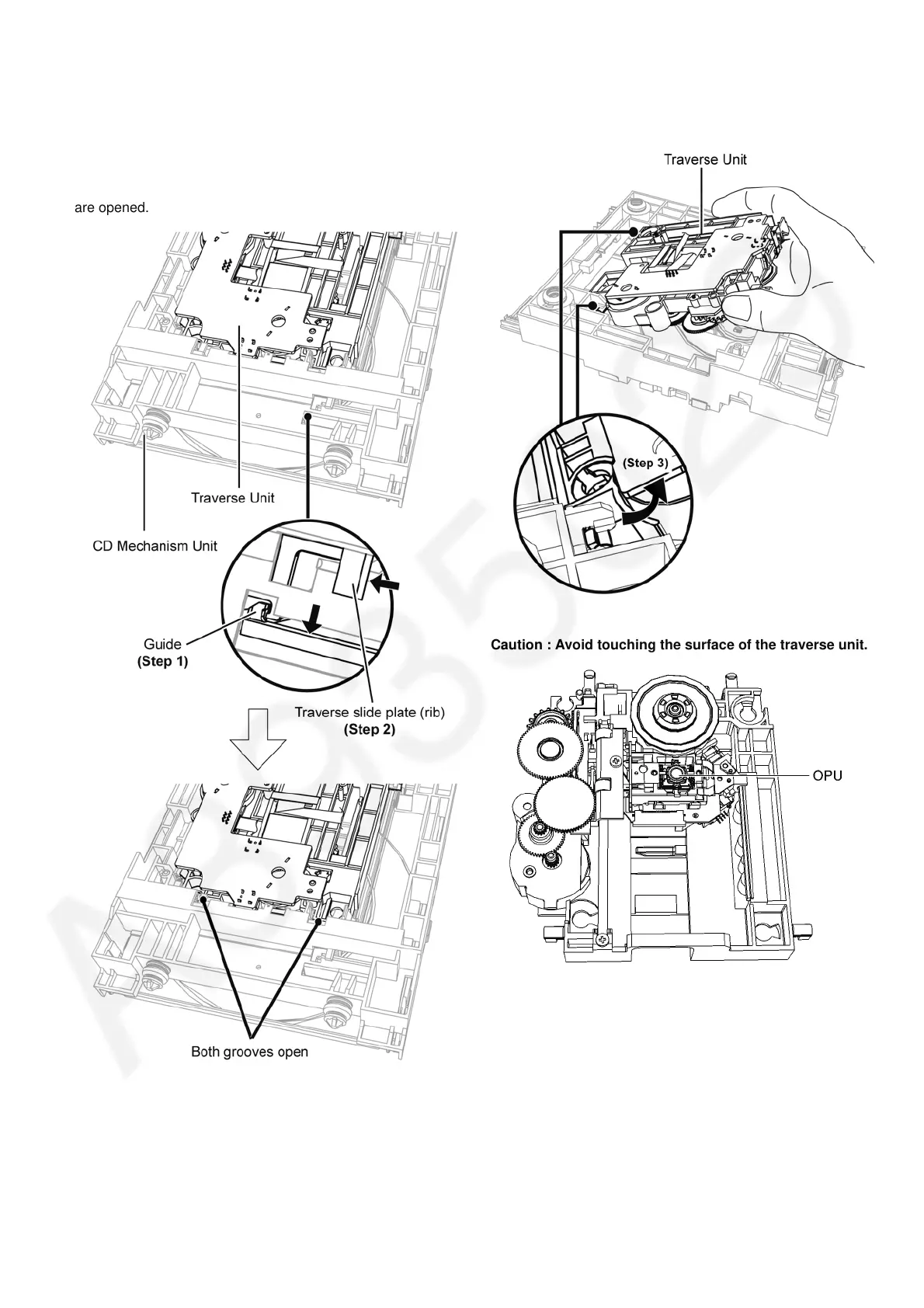

Step 1 : Release guide.
Step 2 : Push traverse slide plate (rib), ensure both grooves
are opened.
Step 3 : Remove traverse unit as arrow shown.
Caution : Avoid touching the surface of the traverse unit.
