8.14. Disassembly of CD Mecha-
nism Unit
• Refer to “Disassembly of Top Cabinet Assembly”
• Refer to “Disassembly of SMPS Unit”
• Refer to “Disassembly of Front Panel Assembly”
• Refer to “Disassembly of Main P.C.B.”

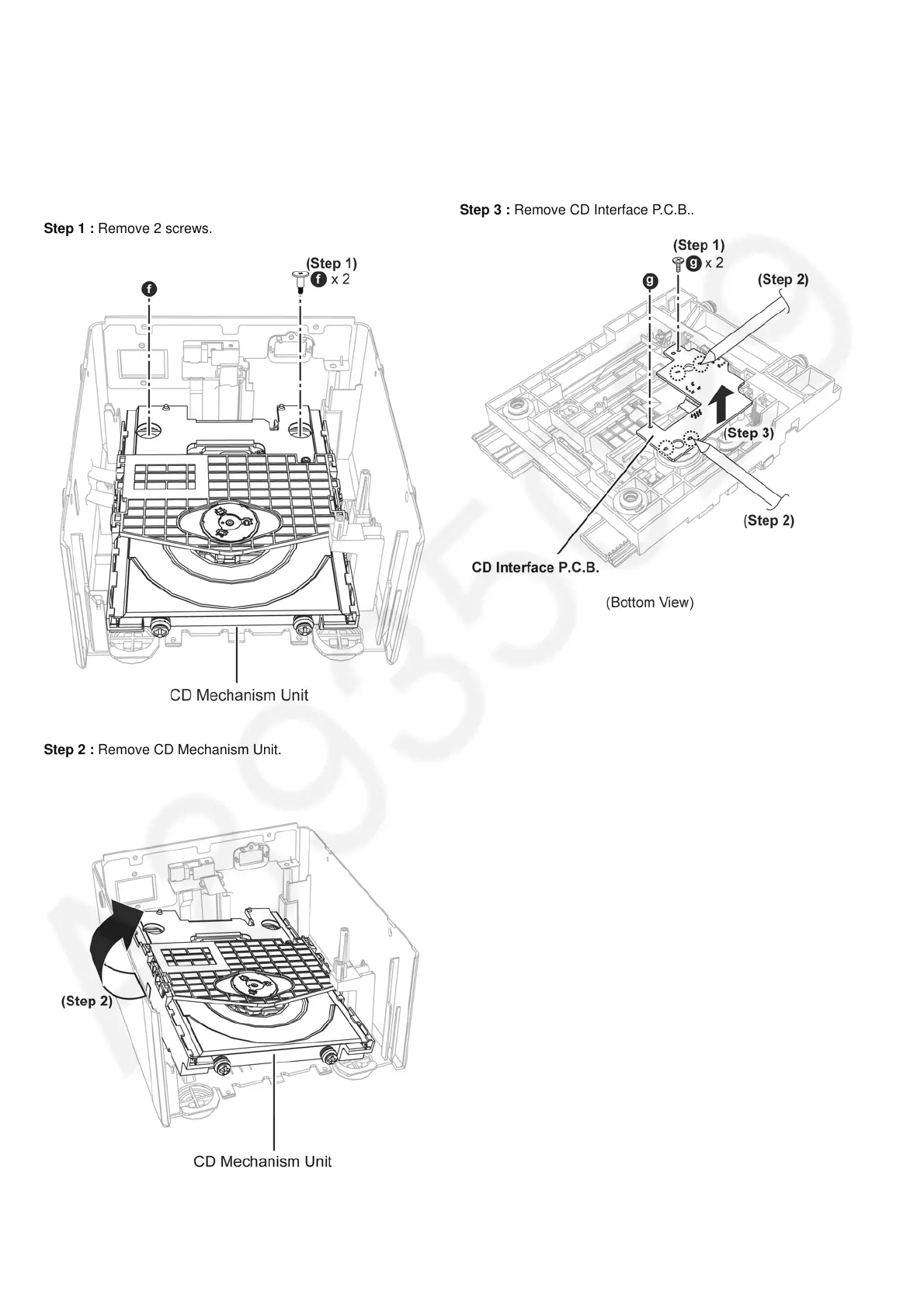

Step 1 : Remove 2 screws.
Step 2 : Remove CD Mechanism Unit.
8.15. Disassembly of CD Interface
P. C. B.
• Refer to “Disassembly of CD Mechanism Unit”
Step 1 : Remove 2 screws.
Step 2 : Desolder pins on CD Interface P.C.B..
Step 3 : Remove CD Interface P.C.B..
