Panasonic SA-PM250EB - Checking of Main P.C.B. (Side A)

38

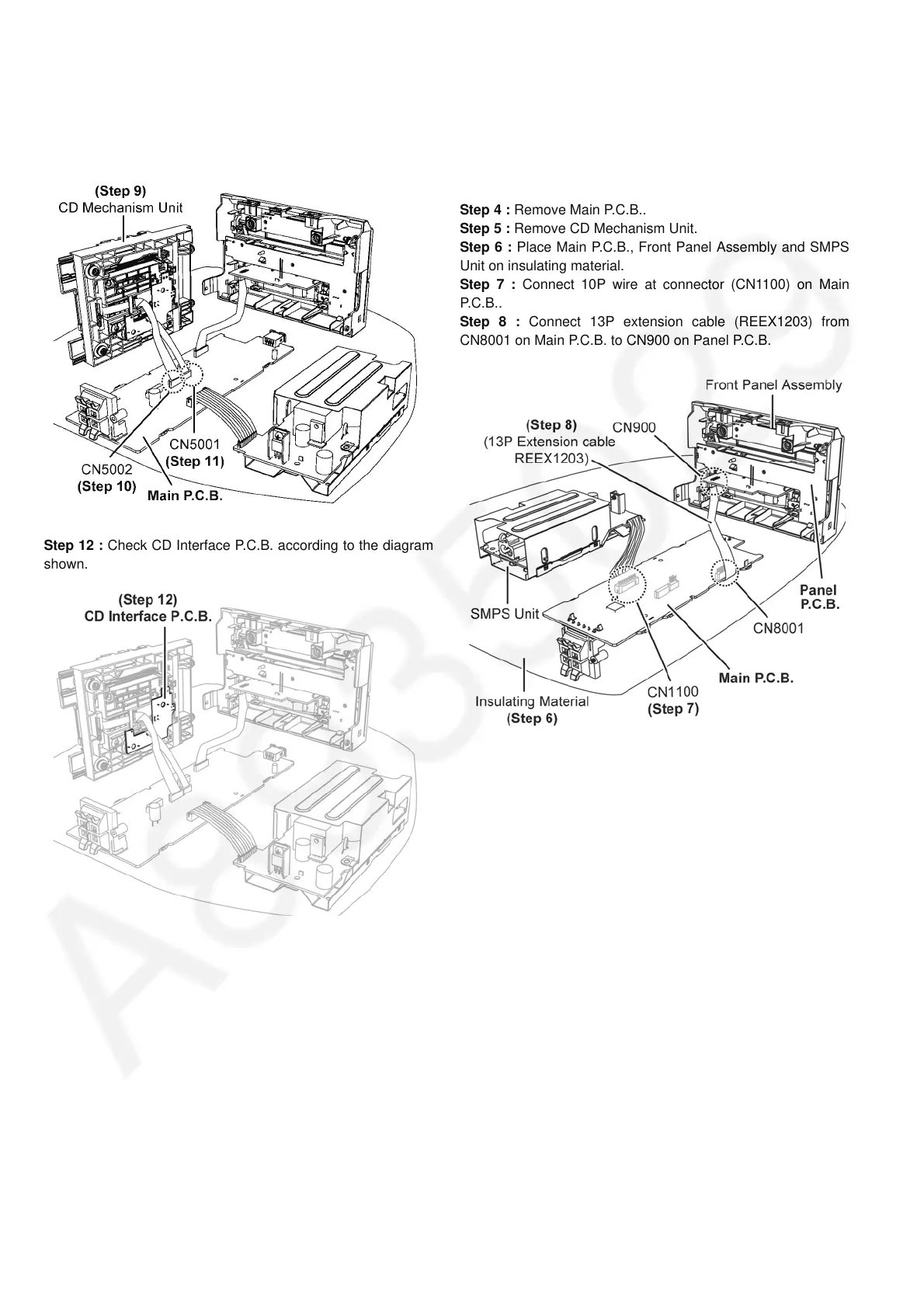

Step 9 : Place CD Mechanism Unit as shown.
Step 10 : Connect 24P FFC at connector (CN5002) on Main
P.C .B . .
Step 11 : Connect 7P FFC at connector (CN5001) on Main
P.C .B . .
Step 12 : Check CD Interface P.C.B. according to the diagram
shown.
10.4. Checking of Main P.C.B. (Side
A)
Step 1 : Remove Top Cabinet Assembly.
Step 2 : Remove SMPS Unit.
Step 3 : Remove Front Panel Assembly.
Step 4 : Remove Main P.C.B..
Step 5 : Remove CD Mechanism Unit.
Step 6 : Place Main P.C.B., Front Panel Assembly and SMPS
Unit on insulating material.
Step 7 : Connect 10P wire at connector (CN1100) on Main
P.C.B..
Step 8 : Connect 13P extension cable (REEX1203) from
CN8001 on Main P.C.B. to CN900 on Panel P.C.B.
