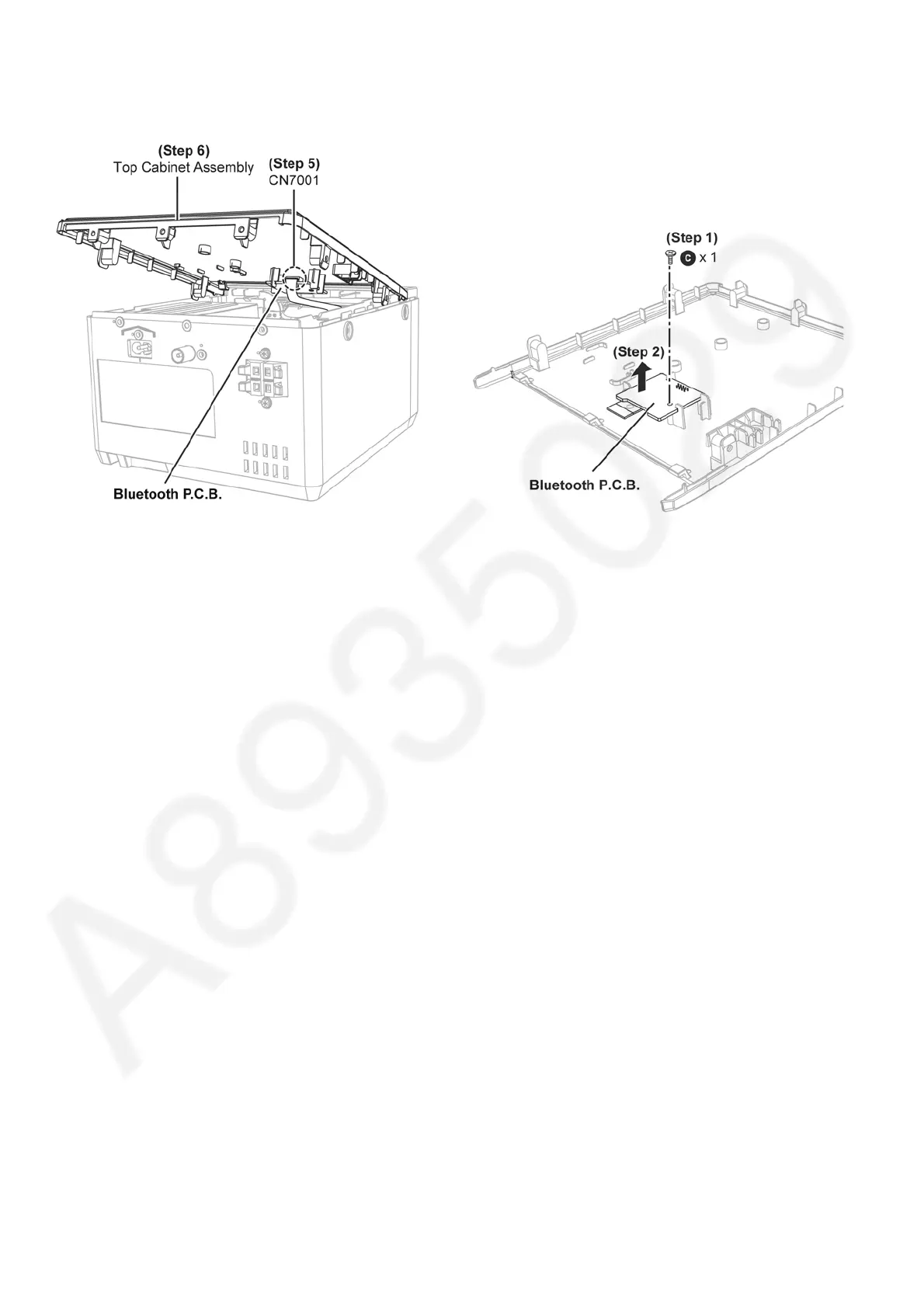

Step 5 : Detach 9P FFC at connector (CN7001) on Bluetooth
P.C .B . .
Step 6 : Remove Top Cabinet Assembly.
8.6. Disassembly of Bluetooth
P. C. B.
• Refer to “Disassembly of Top Cabinet Assembly”
Step 1 : Remove 1 screw.
Step 2 : Remove Bluetooth P.C.B..
