Panasonic SA-PM250EB - Mechanical Replacement Parts List

67

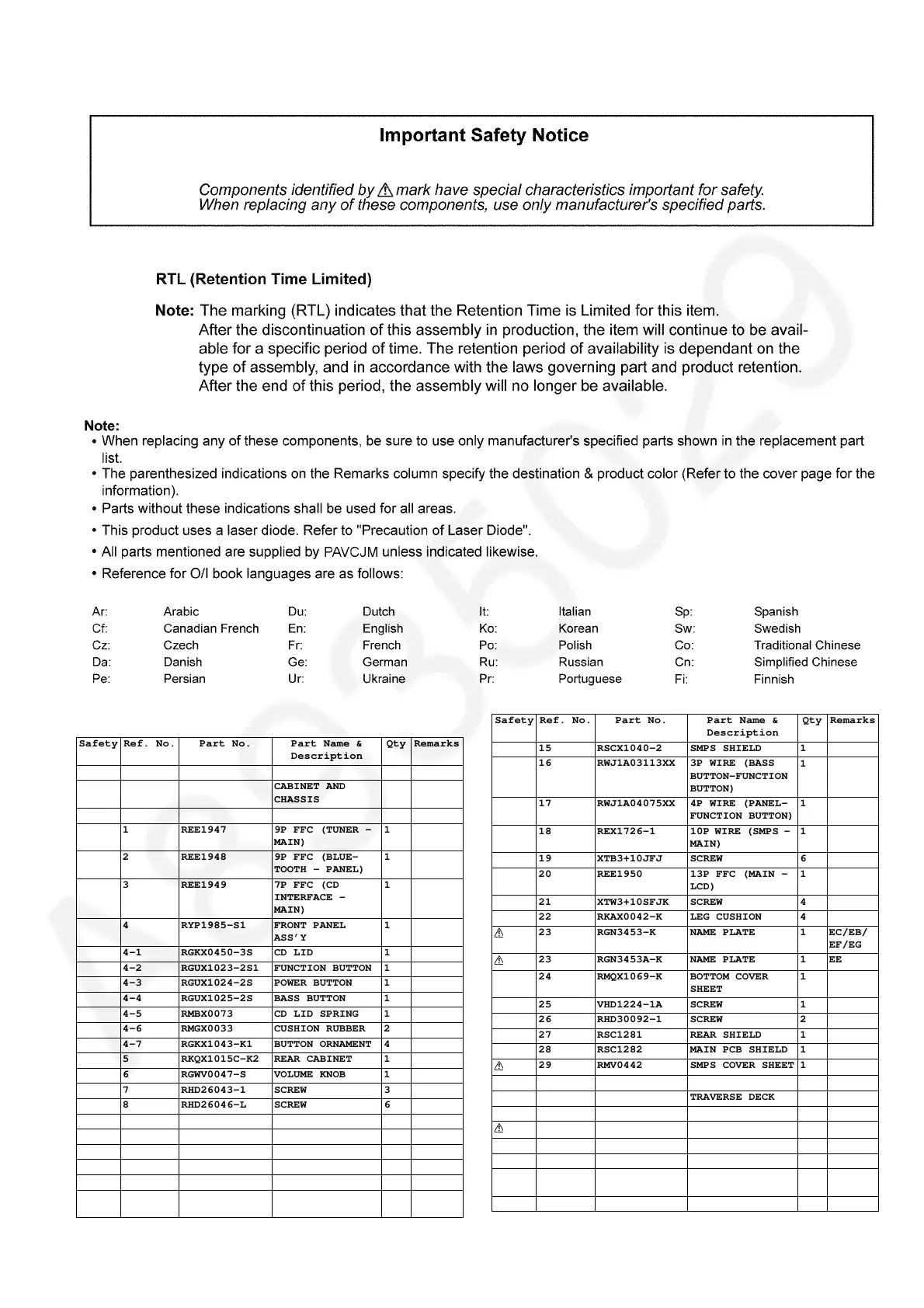

16.3. Mechanical Replacement Parts List
Safety Ref. No. Part No. Part Name &
Description
Qty Remarks
CABINET AND
CHASSIS
1 REE1947 9P FFC (TUNER -
MAIN)
1
2 REE1948 9P FFC (BLUE-
TOOTH - PANEL)
1
3 REE1949 7P FFC (CD
INTERFACE -
MAIN)
1
4 RYP1985-S1 FRONT PANEL
ASS’Y
1
4-1 RGKX0450-3S CD LID 1
4-2 RGUX1023-2S1 FUNCTION BUTTON 1
4-3 RGUX1024-2S POWER BUTTON 1
4-4 RGUX1025-2S BASS BUTTON 1
4-5 RMBX0073 CD LID SPRING 1
4-6 RMGX0033 CUSHION RUBBER 2
4-7 RGKX1043-K1 BUTTON ORNAMENT 4
5 RKQX1015C-K2 REAR CABINET 1
6 RGWV0047-S VOLUME KNOB 1
7 RHD26043-1 SCREW 3
8 RHD26046-L SCREW 6
9 RHDX031008 SCREW 2
10 RKMX1005D-K3 TOP CABINET 1
11 RMNX1011-W2 LCD HOLDER BASE 1
12 RMNX1012A-W2 LCD HOLDER COVER 1
13 RMKX1020-3 SMPS CHASSIS 1
14 RMXX1008-2 LCD DIFFUSER
SHEET
1
15 RSCX1040-2 SMPS SHIELD 1
16 RWJ1A03113XX 3P WIRE (BASS
BUTTON-FUNCTION
BUTTON)
1
17 RWJ1A04075XX 4P WIRE (PANEL-
FUNCTION BUTTON)
1
18 REX1726-1 10P WIRE (SMPS -
MAIN)
1
19 XTB3+10JFJ SCREW 6
20 REE1950 13P FFC (MAIN -
LCD)
1
21 XTW3+10SFJK SCREW 4
22 RKAX0042-K LEG CUSHION 4
23 RGN3453-K NAME PLATE 1 EC/EB/
EF/EG
23 RGN3453A-K NAME PLATE 1 EE
24 RMQX1069-K BOTTOM COVER
SHEET
1
25 VHD1224-1A SCREW 1
26 RHD30092-1 SCREW 2
27 RSC1281 REAR SHIELD 1
28 RSC1282 MAIN PCB SHIELD 1
29 RMV0442 SMPS COVER SHEET 1
TRAVERSE DECK
301 RAE1028Z-V TRAVERSE UNIT 1
310 XTN2+6GFJ SCREW 2
PACKING MATERI-
ALS
Safety Ref. No. Part No. Part Name &
Description
Qty Remarks
