23

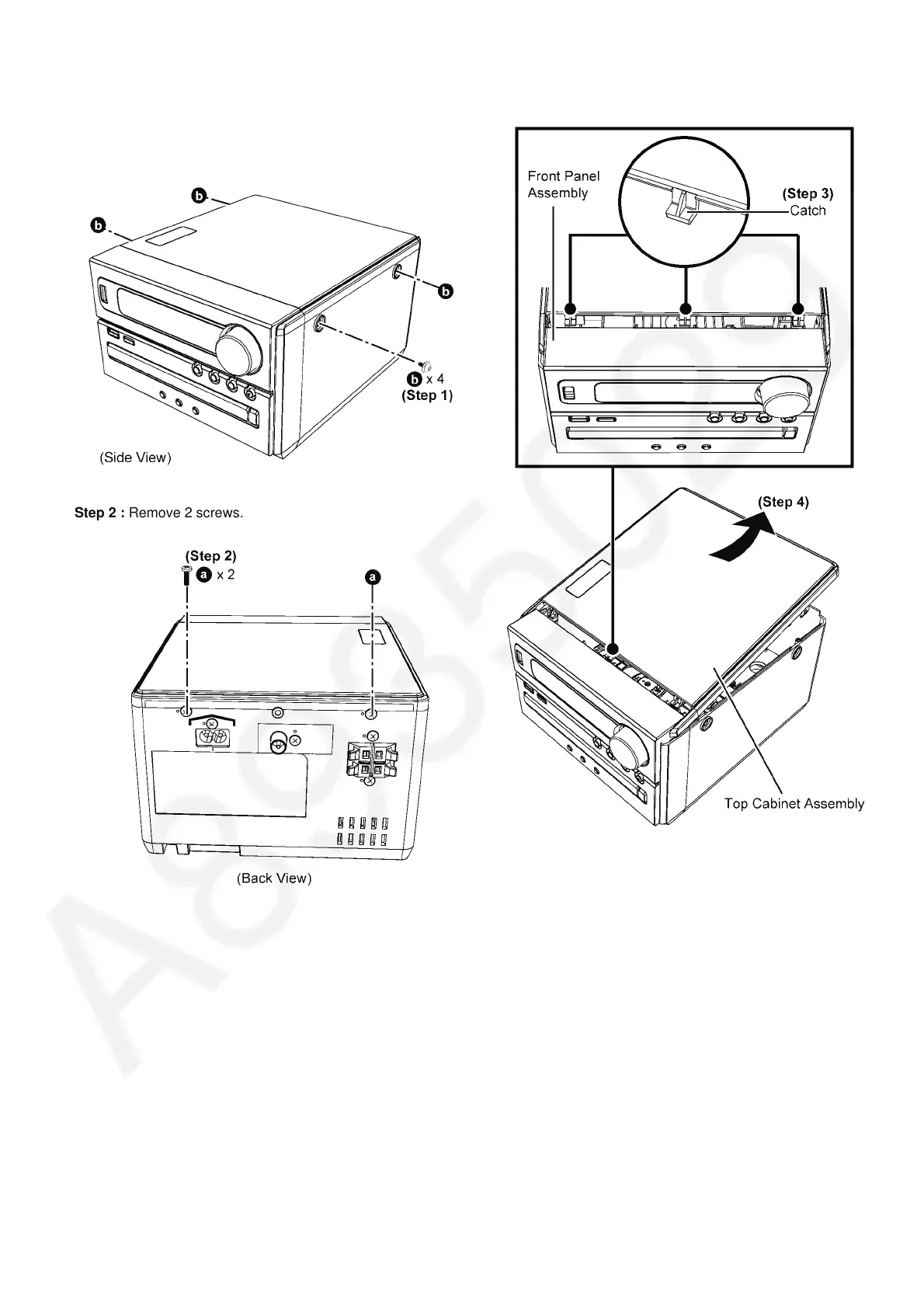

8.5. Disassembly of Top Cabinet
Assembly
Step 1 : Remove 4 screws.
Step 2 : Remove 2 screws.
Step 3 : Release catches.
Step 4 : Lift up Top Cabinet Assembly.
