8.13. Disassembly of Main P.C.B.
• Refer to “Disassembly of Top Cabinet Assembly”
• Refer to “Disassembly of Front Panel Assembly”

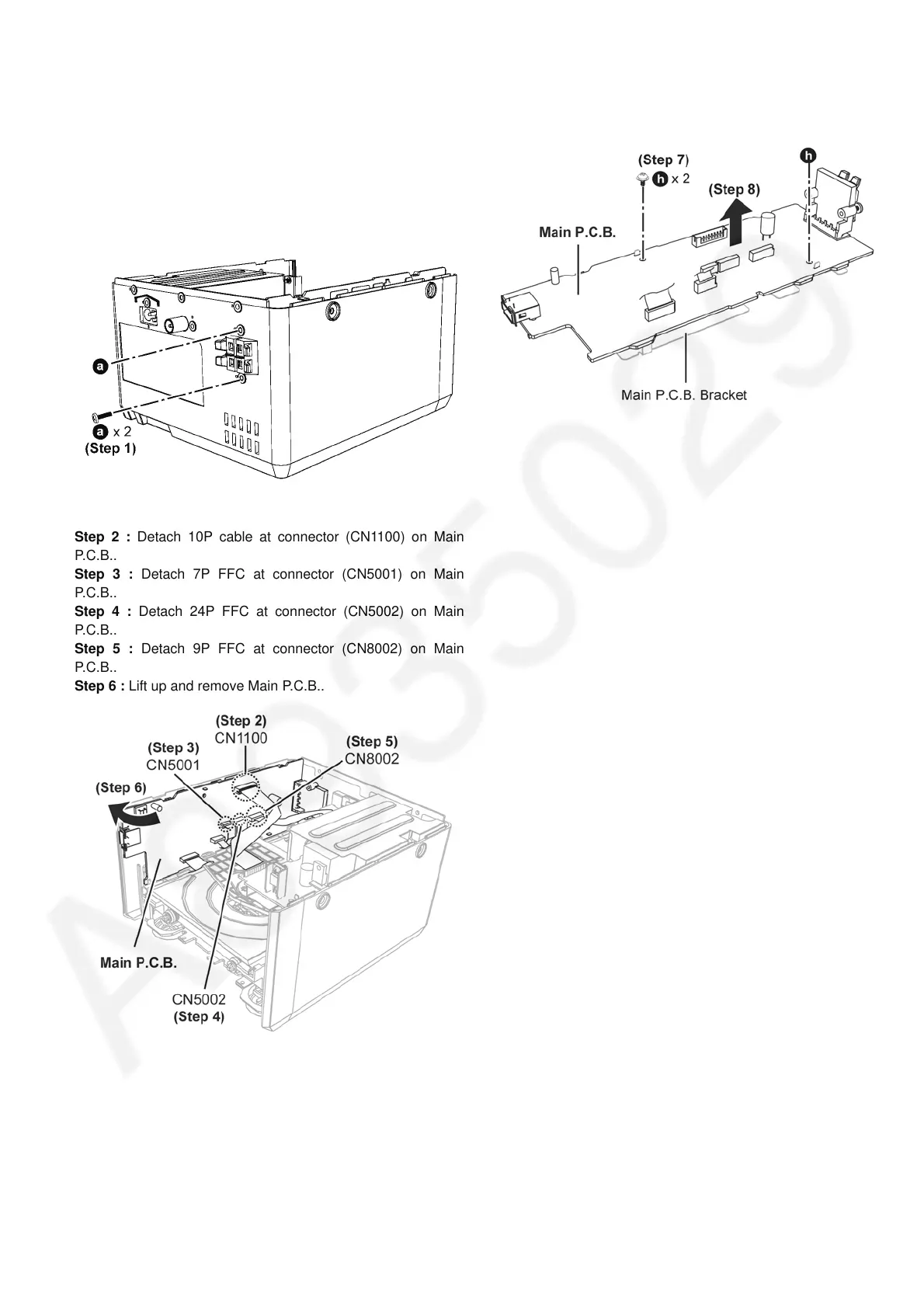

Step 1 : Remove 2 screws.
Step 2 : Detach 10P cable at connector (CN1100) on Main
P.C.B..
Step 3 : Detach 7P FFC at connector (CN5001) on Main
P.C.B..
Step 4 : Detach 24P FFC at connector (CN5002) on Main
P.C.B..
Step 5 : Detach 9P FFC at connector (CN8002) on Main
P.C.B..
Step 6 : Lift up and remove Main P.C.B..
Step 7 : Remove 2 screws.
Step 8 : Remove Main P.C.B..
