8.9. Disassembly of SMPS P.C.B.
• Refer to “Disassembly of SMPS Unit”

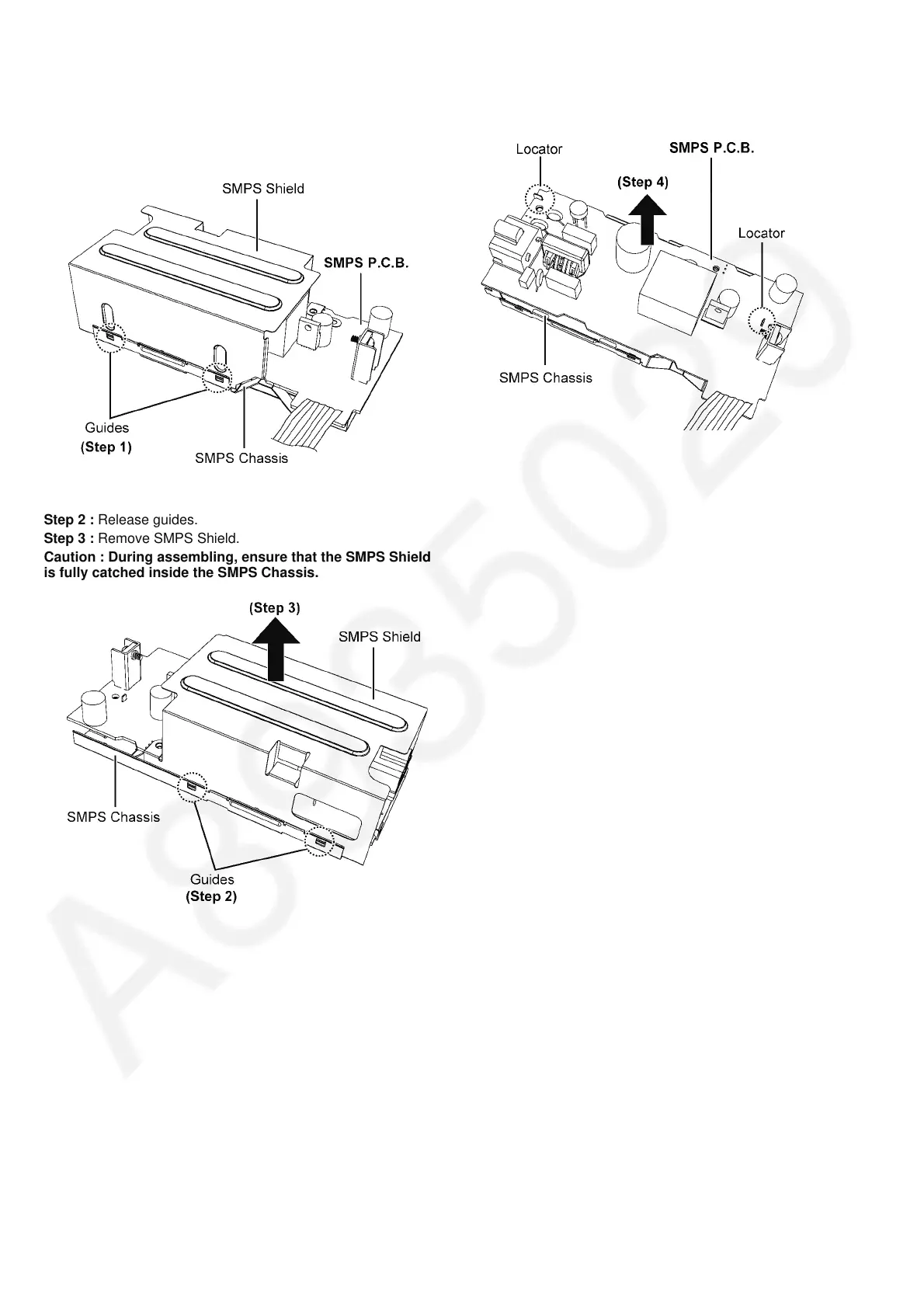

Step 1 : Release guides.
Step 2 : Release guides.
Step 3 : Remove SMPS Shield.
Caution : During assembling, ensure that the SMPS Shield
is fully catched inside the SMPS Chassis.
Step 4 : Remove SMPS P.C.B..
Caution : During assembling, ensure that the SMPS P.C.B.
is properly seated onto the locators.
