8.10. Disassembly of Front Panel
Assembly
• Refer to “Disassembly of Top Cabinet Assembly”

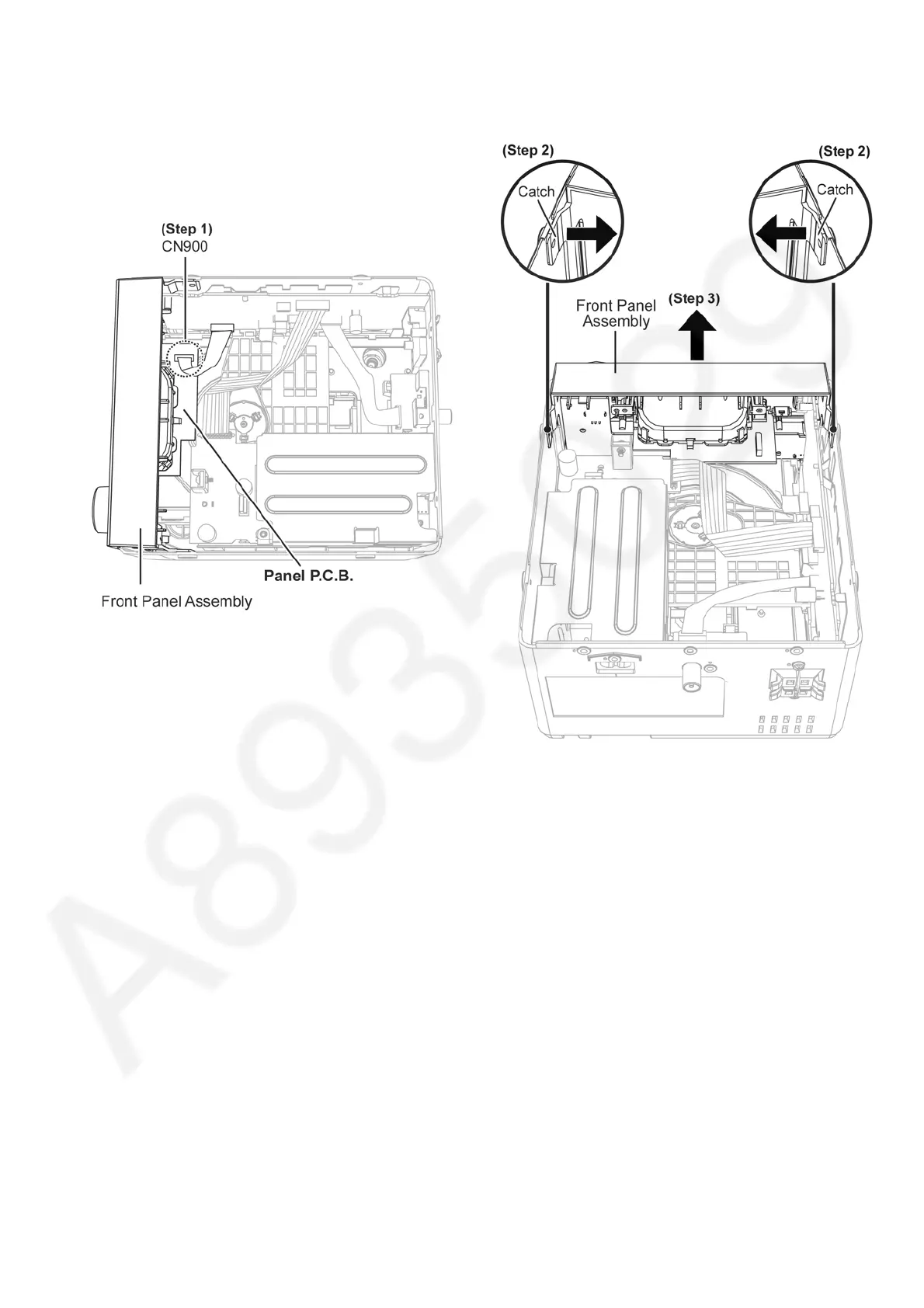

Step 1 : Detach 13P FFC at connector (CN900) on Panel
P.C.B..
Step 2 : Slightly push inwards to release catches.
Step 3 : Slightly push outwards Front Panel Assembly as arrow
shown.
