Panasonic SA-PM250EB - Disassembly of CD Lid

30

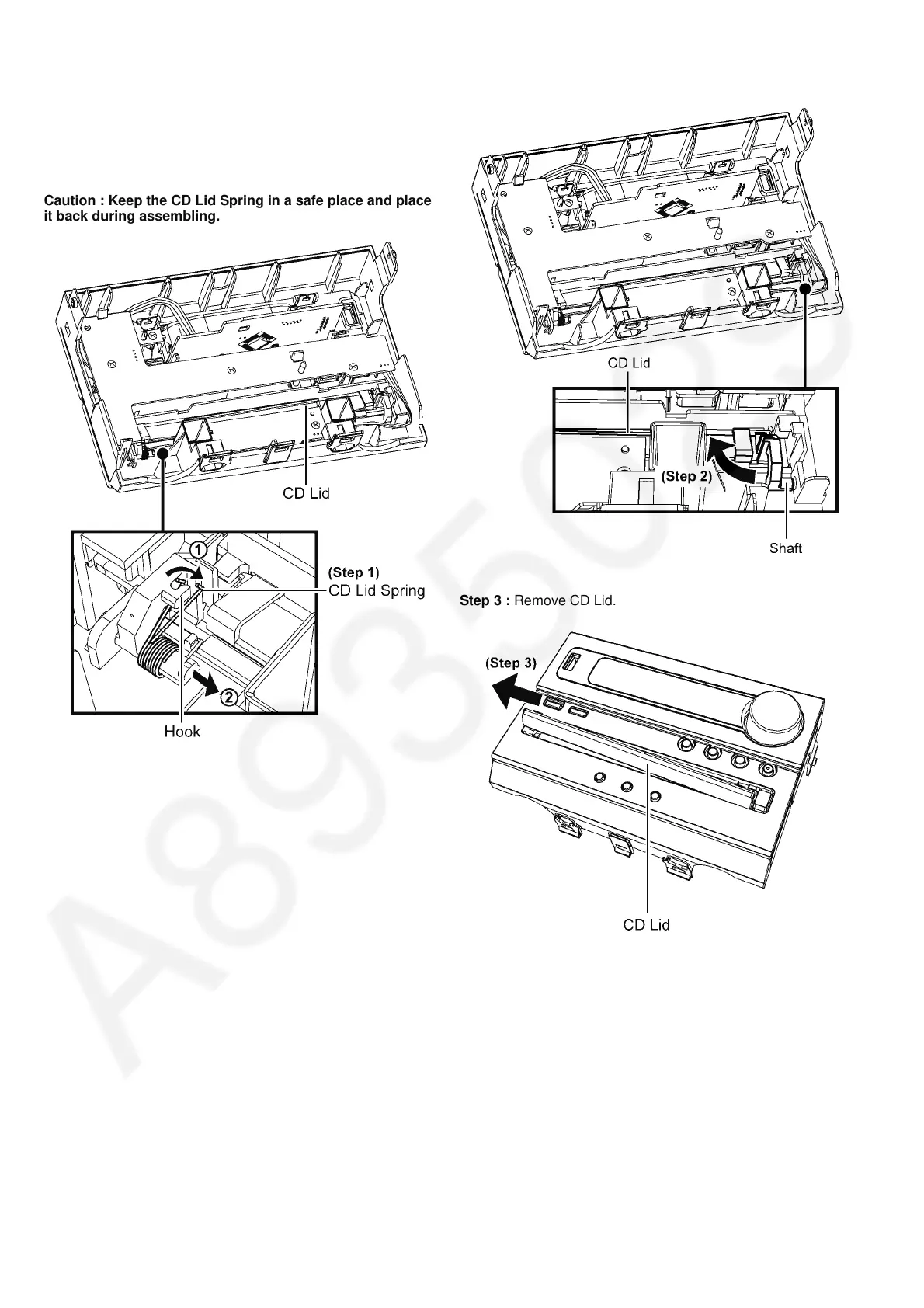

8.12. Disassembly of CD Lid
• Refer to “Disassembly of Top Cabinet Assembly”
• Refer to “Disassembly of Front Panel Assembly”
Step 1 : Lift up and remove CD Lid Spring as arrow shown in
order.
Caution : Keep the CD Lid Spring in a safe place and place
it back during assembling.
Step 2 : Push the shaft (R) of the CD Lid inward.
Step 3 : Remove CD Lid.
