15 Voltage and Waveform Measurement
15.1. Voltage Measurement
Note:
• Indicated voltage values are the standard values for the unit measured by the DC electronic circuit tester (high-impedance) with
the chassis taken as standard.
Therefore, there may exist some errors in the voltage values, depending on the internal impedance of the DC circuit tester.
• Circuit voltage and waveform described herein shall be regarded as reference information when probing defect point because it
may differ from actual measuring value due to difference of Measuring instrument and its measuring condition and product itself.

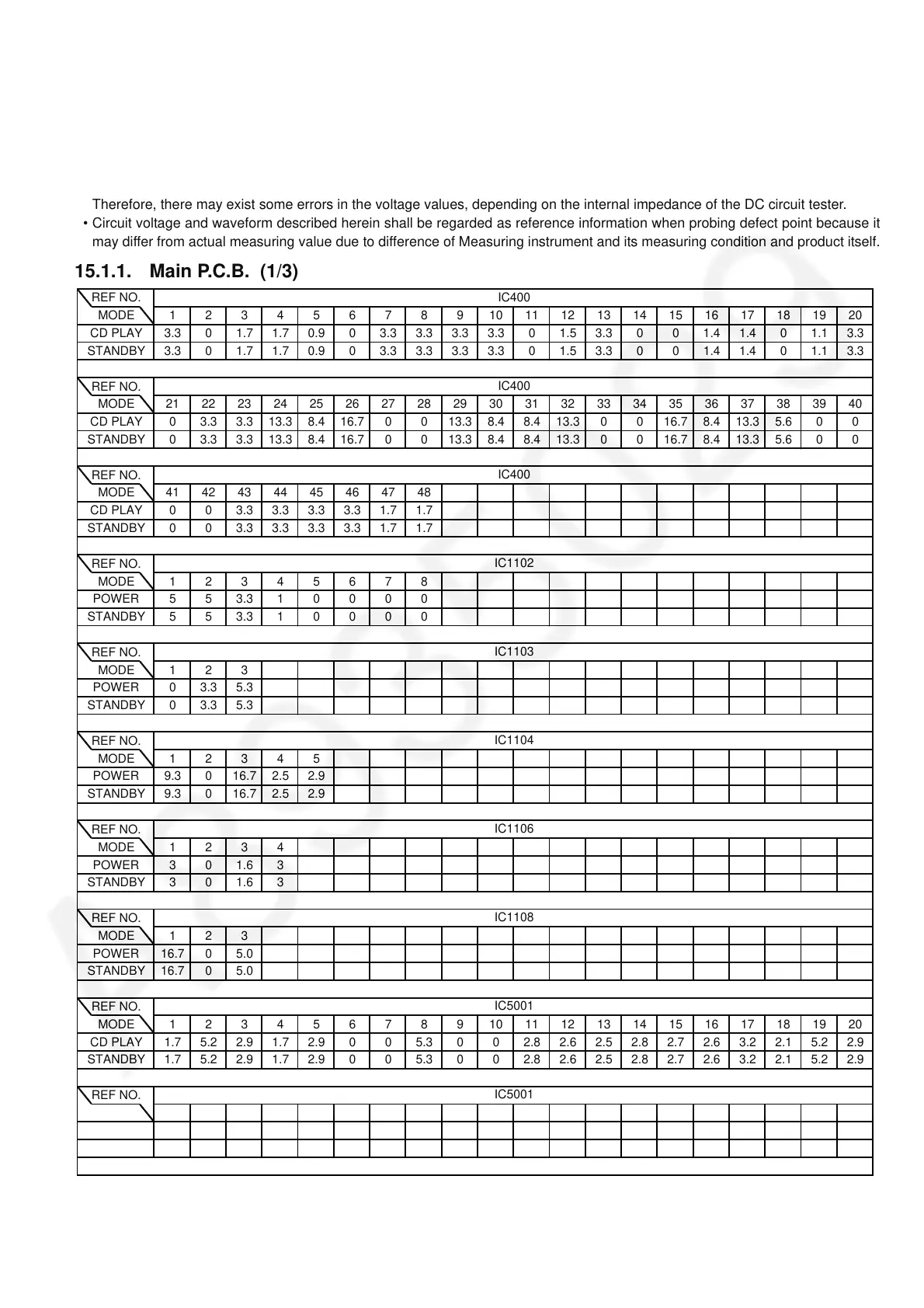

15.1.1. Main P.C.B. (1/3)
REF NO.
MODE 1234567891011121314151617181920
CD PLAY 3.3 0 1.7 1.7 0.9 0 3.3 3.3 3.3 3.3 0 1.5 3.3 0 0 1.4 1.4 0 1.1 3.3
STANDBY 3.3 0 1.7 1.7 0.9 0 3.3 3.3 3.3 3.3 0 1.5 3.3 0 0 1.4 1.4 0 1.1 3.3
REF NO.
MODE 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40
CD PLAY 0 3.3 3.3 13.3 8.4 16.7 0 0 13.3 8.4 8.4 13.3 0 0 16.7 8.4 13.3 5.6 0 0
STANDBY 0 3.3 3.3 13.3 8.4 16.7 0 0 13.3 8.4 8.4 13.3 0 0 16.7 8.4 13.3 5.6 0 0
REF NO.
MODE 41 42 43 44 45 46 47 48
CD PLAY 0 0 3.3 3.3 3.3 3.3 1.7 1.7
STANDBY 0 0 3.3 3.3 3.3 3.3 1.7 1.7
REF NO.
MODE 12345678
POWER 5 5 3.3 10000
STANDBY 5 5 3.3 10000
REF NO.
MODE 1 2 3
POWER 0 3.3 5.3
STANDBY 0 3.3 5.3
REF NO.
MODE 12345
POWER 9.3 0 16.7 2.5 2.9
STANDBY 9.3 0 16.7 2.5 2.9
REF NO.
MODE 1234
POWER 3 0 1.6 3
STANDBY 3 0 1.6 3
REF NO.
MODE 1 2 3
POWER 16.7 0 5.0
STANDBY 16.7 0 5.0
REF NO.
MODE 1234567891011121314151617181920
CD PLAY 1.7 5.2 2.9 1.7 2.9 0 0 5.3 0 0 2.8 2.6 2.5 2.8 2.7 2.6 3.2 2.1 5.2 2.9
STANDBY 1.7 5.2 2.9 1.7 2.9 0 0 5.3 0 0 2.8 2.6 2.5 2.8 2.7 2.6 3.2 2.1 5.2 2.9
REF NO.
MODE 21 22 23 24 25 26 27 28 29 30
CD PLAY 1.5 0 1.8 5.2 5.2 1.7 1.7 3.3 0 0
STANDBY 1.5 0 1.8 5.2 5.2 1.7 1.7 3.3 0 0
IC400
IC400
IC5001
IC1108
IC1106
IC400
IC1102
SA-PM250EG/EC/EF/EB/EE MAIN P.C.B.
IC1103
IC1104
IC5001
